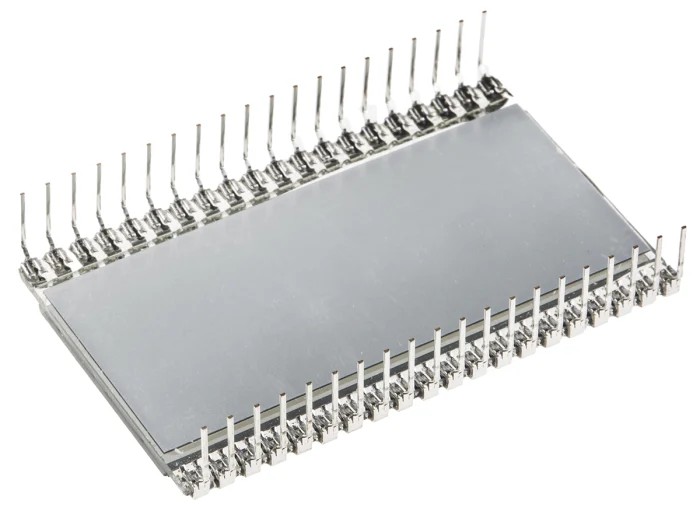

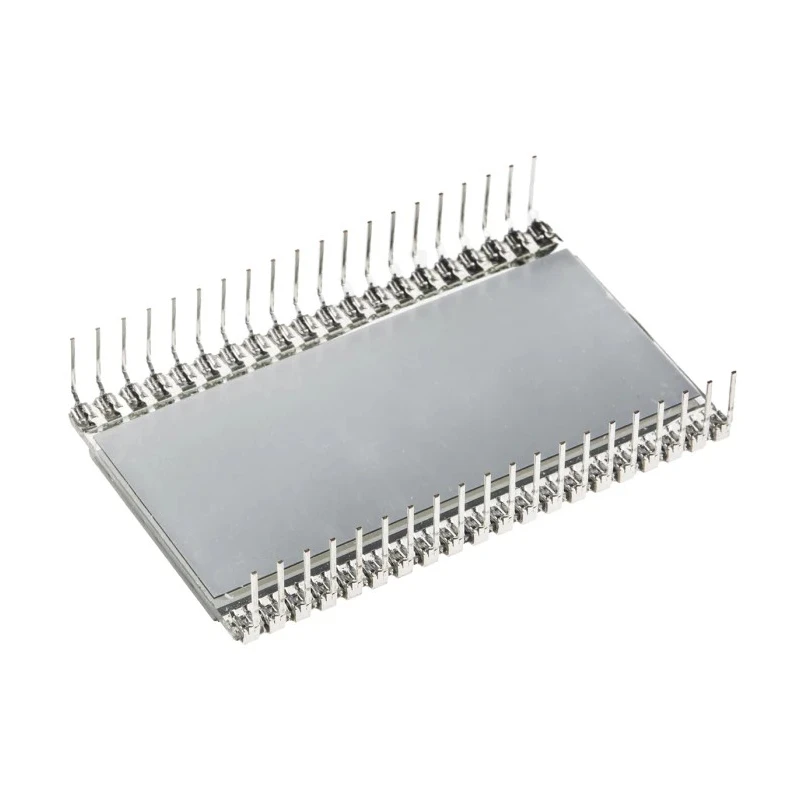

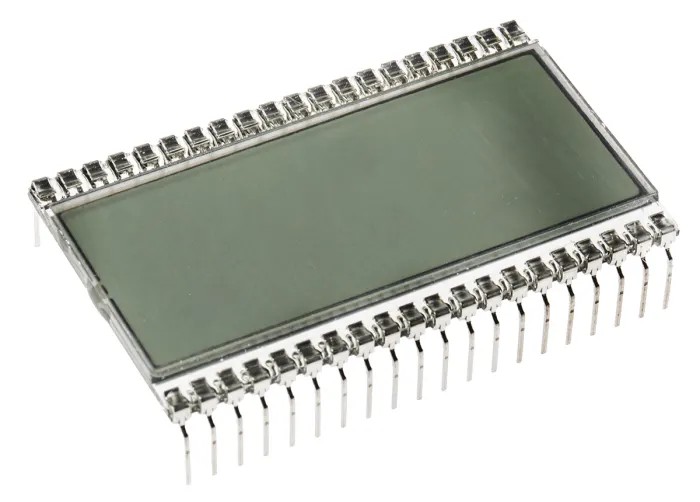

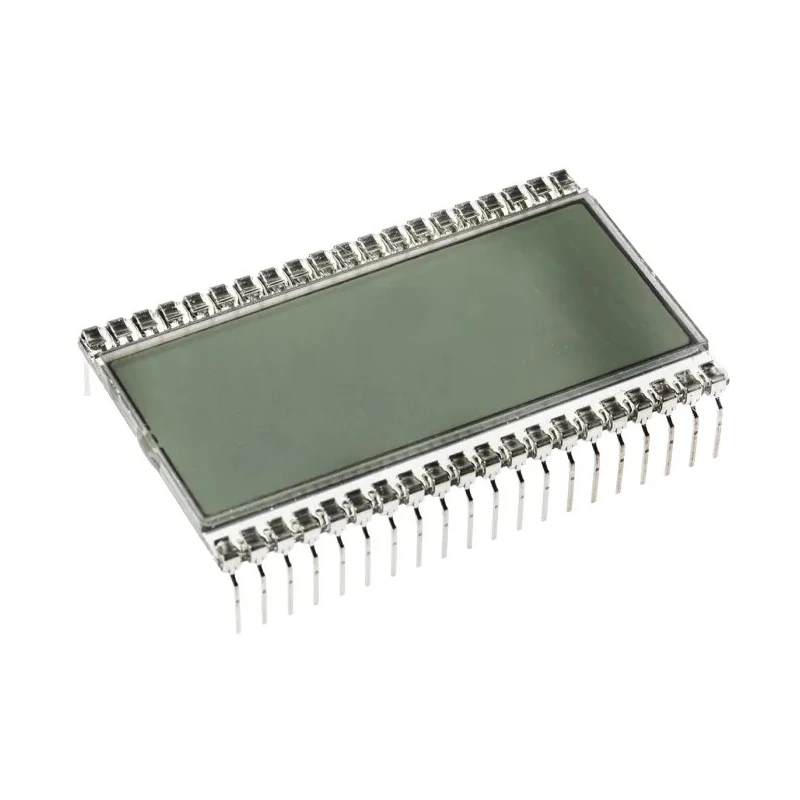

RS PRO 7 Segment LED LCD Monochrome Display Black on Grey 1 x 4 Characters 50.8 x 30.5 x 2.9 mm 185-0171
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | RS PRO |
| Model | 185-0171 |
| Series | PHT |
| Character height | 12.7mm |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -30°C |
| External Width | 50.8mm |
| External Depth | 2.9mm |
| External Height | 30.5mm |
| Character Width | 7mm |
| Illumination Colour | Black |
| Viewing Area Dimensions | 47 x 18 mm |
| Backlight Type | LED |
| Character Matrix | 1 x 4 |
| 4 DIGIT L.C.D.DISPLAYBrand | NEUTRAL |
| RS PRO PHR 7 Segment LED LCD Monochrome Display, Black on Grey, 1 x 4Brand | RS PRO |
Key Features
- The display uses transflective TN technology for low power consumption.
- It has a character height of 12.7 mm and width of 7 mm.
- Viewing area measures 47 x 18 mm with overall dimensions of 50.8 x 30.5 x 2.9 mm.
- Backlight type is LED with black illumination color and a grey background.
- Operates within a temperature range of -30°C to 80°C, suitable for diverse environments.
- Includes a bezel and comes in a dual in line package for easy mounting.
- Ideal for battery-operated electronic equipment requiring a clear numeric display.
Product Description
RS PRO 185-0171 is a 7 Segment LED LCD Monochrome Display designed with a 1 x 4 character matrix, offering a clear black-on-grey transflective display. Its TN display matrix technology ensures extremely low power consumption, making it optimal for battery-powered devices.
The display features a character height of 12.7 mm and width of 7 mm, set within a viewing area of 47 x 18 mm. The external dimensions are 50.8 mm width, 30.5 mm height, and 2.9 mm depth, making it a compact and efficient module.
It uses an LED backlight with black illumination color and grey background for excellent contrast and readability even in low light conditions. The unit is supplied in a dual in line package format with rigid pins allowing easy integration into various electronic assemblies.
Operating temperature ranges from -30°C to +80°C make this display suitable for industrial, laboratory, automotive, HVAC, and other commercial applications requiring numeric data display with robustness and reliability.
Transflective TN display technology for reduced power usage. Clear numeric representation with four 7-segment digits per row. LED backlight enhances visibility in dark environments. Compact flat glass plate design with DIL mounting.
Wide operating temperature range for versatile applicability. Included bezel for protection and aesthetic finish.
This module is suited for electronic instrumentation, power and connectors sectors, and any application requiring a reliable numeric display. It integrates well with other components in displays and optoelectronics systems.
Explore more LCD Monochrome Displays from EnvMart for your industrial and technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this model is 12.7 mm.
The overall dimensions are 50.8 mm in width, 30.5 mm in height, and 2.9 mm in depth.
The viewing area measures 47 x 18 mm.
It uses an LED backlight with black illumination color.
The operating temperature range is from -30°C to +80°C.
This display can show 4 characters in a 1 x 4 character matrix.
It uses transflective TN technology for low power consumption.
It is suitable for applications in industrial, laboratory, automotive, and HVAC environments requiring numeric data display.
Each character has a width of 7 mm.
It comes in a dual in line package format for easy mounting.
The illumination color is black, set against a grey background.
The country of origin for this display is China.
