TRACOPOWER Switched Mode DIN Rail Power Supply 264V AC Input 15V DC 6.7A Output 80W TIB 080-112 EX

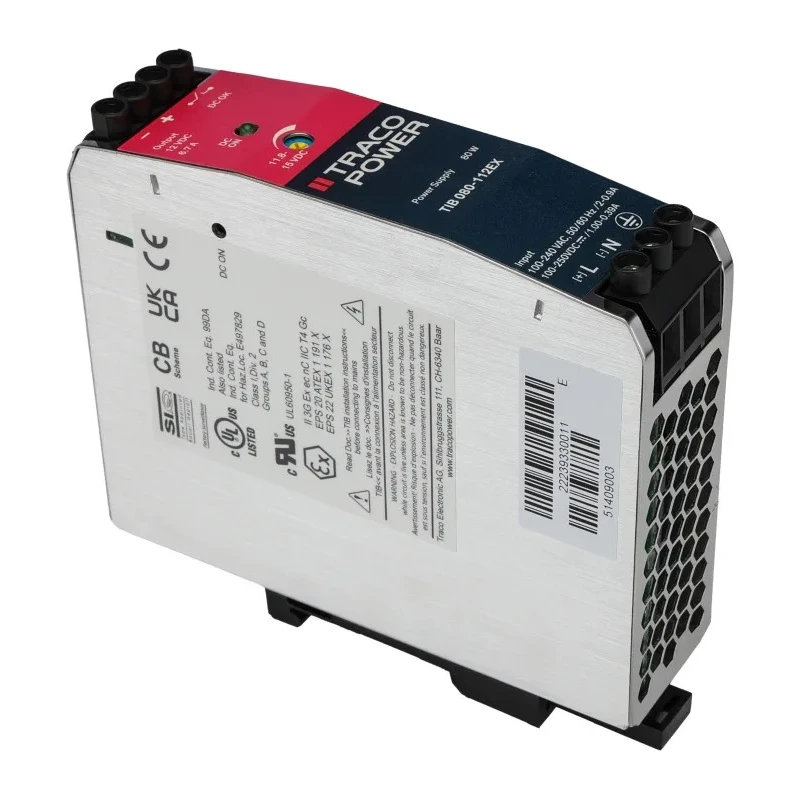

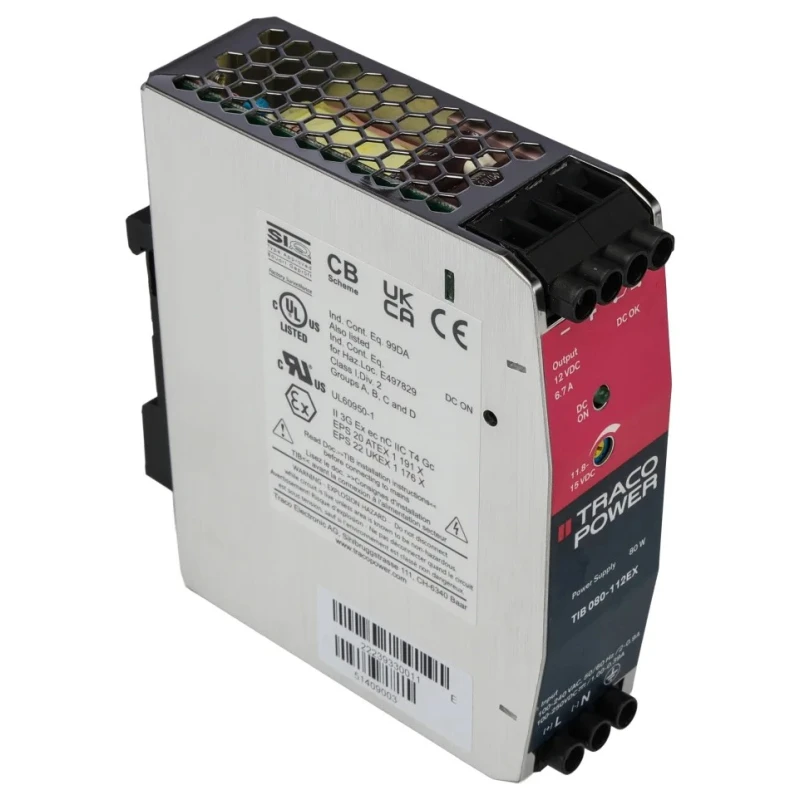

TRACOPOWER TIB 080-112 EX is a switched mode DIN rail power supply designed to convert AC input voltages from 85V to 264V into a stable 15V DC output delivering up to 6.7A and a total power of 80W. This unit features a compact casing with dimensions 32mm (W) x 114.2mm (H) x 98.6mm (D), making it suitable for efficient space utilization in electrical panels.

The power supply is constructed with rugged stainless steel and aluminium, providing strong resistance to wear and tear in industrial environments. It holds an IP20 rating, ensuring protection against solid objects and operational safety in typical indoor settings. Its operating temperature range from -40°C to +70°C allows use in various harsh conditions without compromising performance.

With an energy efficiency rating of 88%, this model minimizes power losses and heat generation, contributing to longer service life and reduced energy costs. The unit is equipped with screw terminals, facilitating straightforward wiring and installation while securely maintaining connections. The snap-on mounting system is compatible with standard 35mm DIN rails, supporting quick assembly and maintenance convenience.

The TIB 080-112 EX power supply carries hazardous area certification ATEX and complies with multiple stringent standards including UL 60950-1, UL 508, IEC EN 60950-1, as well as explosion-proof and safety certifications such as EX II3G Ex ec nC IIC GC Class I and cULus. This makes it ideal for use in manufacturing plants, telecommunications networks, automated control systems, and other industrial automation applications.

Supports wide input voltage range from 85V AC to 264V AC. Delivers regulated 15V DC output voltage at 6.7A and 80W output power. Rugged stainless steel and aluminium housing ensures durability. IP20 protection and screw terminals for safe operation and easy wiring.

Wide operating temperature range of -40°C to +70°C for reliable performance. High efficiency of 88% reduces energy consumption and heat build-up. ATEX hazardous area certification suitable for potentially explosive atmospheres.

Complies with UL, IEC, EN, CSA, and cULus safety standards. Snap-on mounting for standard 35mm DIN rails enables fast installation. Ideal for manufacturing, telecoms, and automated systems applications.

Traco Power's TIB 080-112 EX offers reliability and efficiency in a compact form factor suitable for industrial and commercial power supply requirements. Browse EnvMart's extensive range of Power Supplies for more options tailored to your electrical and automation needs.
