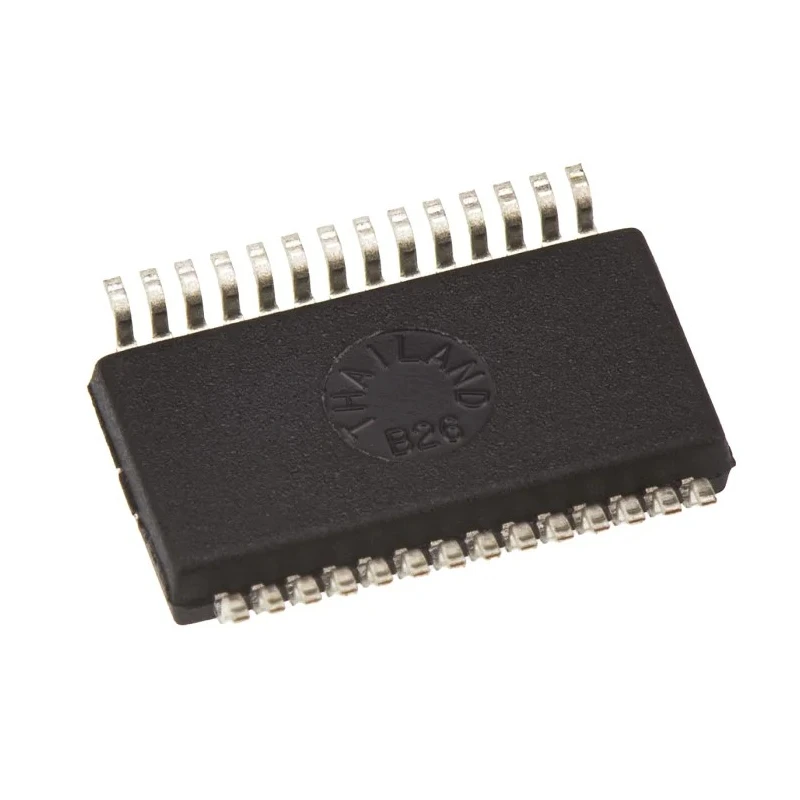

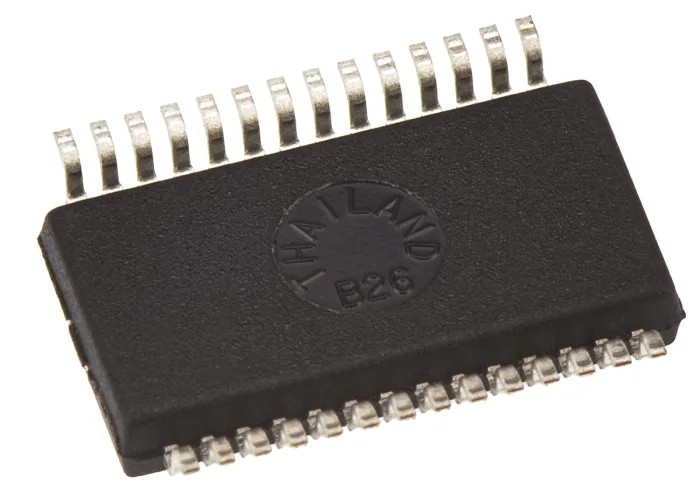

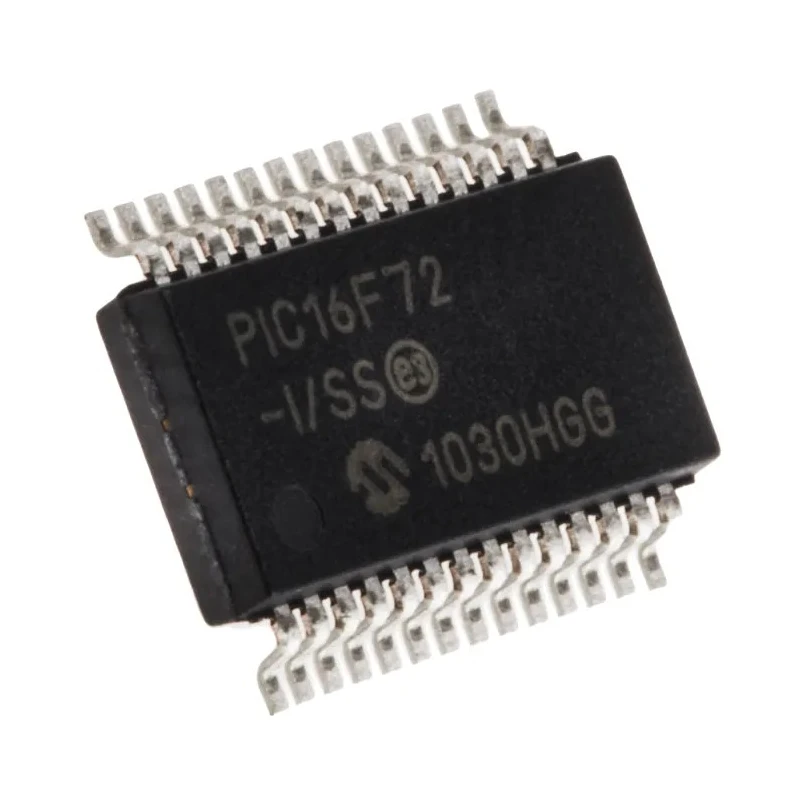

Microchip 8-bit PIC Microcontroller PIC16F72-I/SS, 20 MHz CPU Speed, 3.5kB FLASH, 28-Pin SSOP Package

Microchip PIC16F72-I/SS is an 8-bit PIC Microcontroller featuring Microchip's Mid-range PIC architecture, operating at up to 20 MHz clock speed with 3.5 KB of FLASH program memory. Designed for diverse embedded control applications, this microcontroller offers a compact 28-pin SSOP surface mount package facilitating high-density PCB designs.

With 22 programmable I/O pins, the PIC16F72-I/SS supports versatile peripheral interfaces. Its internal 128-byte RAM and several built-in peripherals including a 5-channel 8-bit Analog to Digital Converter (ADC), two analog comparators, and a digital-to-analog converter enable complex signal processing tasks. The device supports synchronous serial communication protocols such as SPI and I2C through its Synchronous Serial Port (SSP).

System reliability is enhanced with features like Power-On Reset (POR), Brown-Out Reset (BOR), Watchdog Timer (WDT), oscillator start-up timer, and power-up timer, making it suitable for industrial, commercial, laboratory, and automation applications.

The device operates over an industrial temperature range of -40°C to +85°C and supports a supply voltage from 1.8 V to 5.5 V with a maximum power dissipation of 800 mW. The small footprint and surface mount SSOP package measure 10.5 mm in length, 5.6 mm in width, and 1.85 mm in height, helping in compact device design.

Microchip PIC16F72-I/SS is RoHS compliant, ensuring environmental safety. It is ideal for use in automation control, embedded system design, consumer electronics, and various other MCU applications.

Utilizes Microchip's PIC architecture for reliable embedded application performance. Features 3.5 Kbytes of program memory and 128 bytes of RAM to support complex programs. Operates with a maximum clock frequency of 20 MHz for efficient computation.

Includes 22 programmable I/O pins for versatile interfacing capabilities. Equipped with a 5-channel 8-bit ADC and 2 analog comparators for mixed signal processing. Supports In-Circuit Serial Programming (ICSP) enabling convenient programming and debugging.

Power-on Reset, Brown-Out Reset, Watchdog Timer, and oscillator start-up timer for system reliability. Compact dimensions with a length of 10.5 mm, width of 5.6 mm, and height of 1.85 mm, suitable for surface mounting. Wide operating temperature range from -40°C to 85°C for industrial and commercial applications.

Complies with RoHS standards ensuring environmental safety and regulatory compliance. Explore more electronic components and Microcontrollers at EnvMart for your embedded and industrial electronics requirements.
