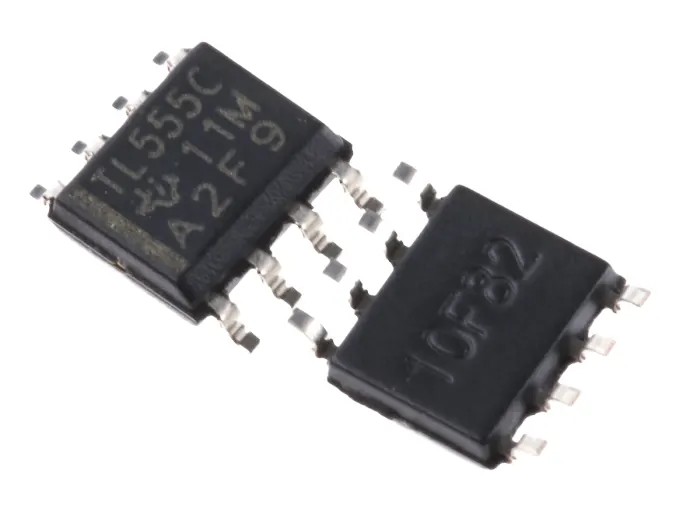

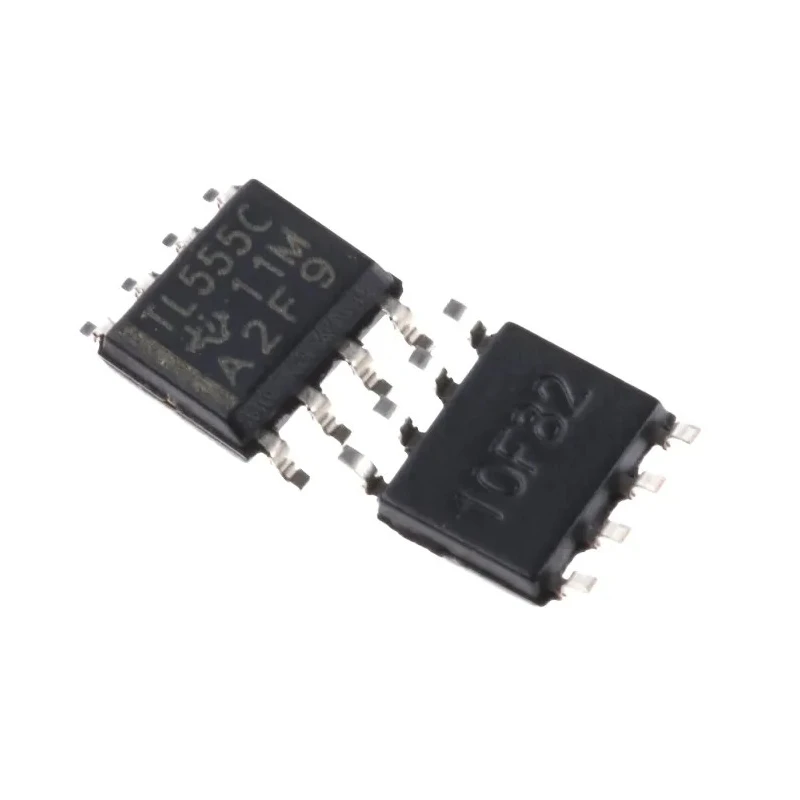

Texas Instruments Precision Timer IC, 1 Internal Timer, 8-Pin SOIC Package TLC555CDR

Texas Instruments TLC555CDR is a high-precision timer integrated circuit featuring a single internal timer and an 8-pin SOIC surface mount package. This device enables the generation of accurate time delays and timing pulses, making it ideal for industrial, laboratory, and electronics manufacturing applications requiring precise timing control.

The timer operates over a wide supply voltage range of 2V to 15V and is rated for operation from 0°C up to 70°C, ensuring stable performance in various environments. Its maximum propagation delay time is 75ns measured at typical conditions with a 10pF load, suitable for high-speed circuit requirements.

Its compact dimensions, measuring 4.9mm in length and 1.58mm in height, allow easy integration onto printed circuit boards with limited space. The SOIC package supports surface mount technology for automated assembly.

The TLC555CDR can function in monostable (one-shot) or astable (oscillator) modes, which provides flexibility for use in timing circuits, pulse generation, oscillators, and pulse-width modulation applications.

Low-power CMOS and LinCMOS variants in the 555 timer family further enable low power consumption designs while maintaining timing precision. This timer series includes both single and dual timer configurations, expanding usability in complex circuit designs.

Operates between 2V and 15V supply voltage. Maximum operating temperature of 70°C. 75ns maximum propagation delay at 10pF load. Compact 8-pin SOIC package for surface mounting. Versatile timing modes including monostable and astable operation.

Highly stable for precision timing applications. Ideal for electronics manufacturing, industrial timing, and laboratory instrumentation. Discover more precision Semiconductor components and timer ICs in the Electronics Components category at EnvMart.
