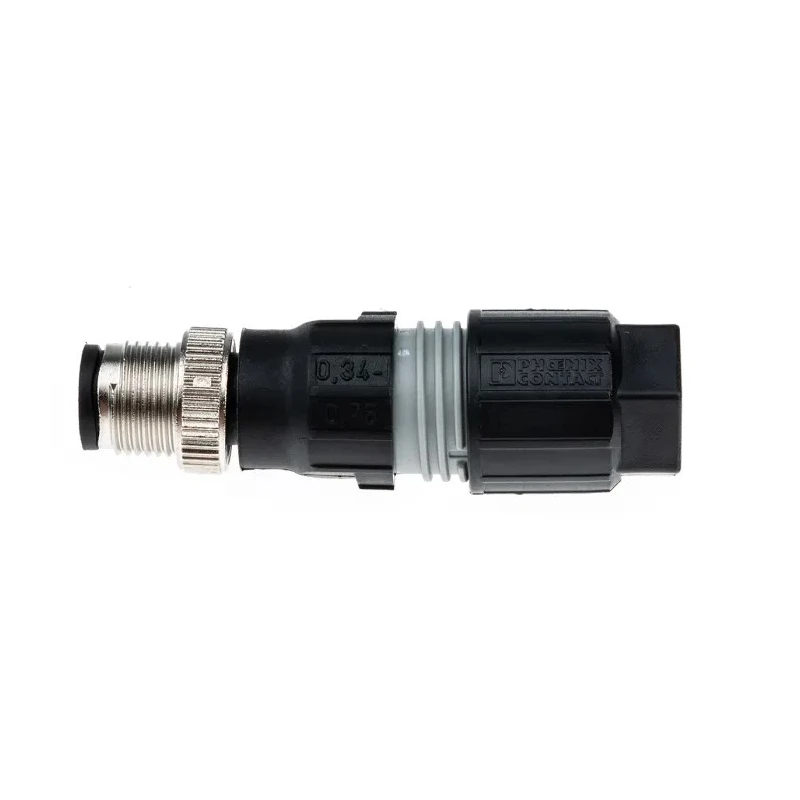

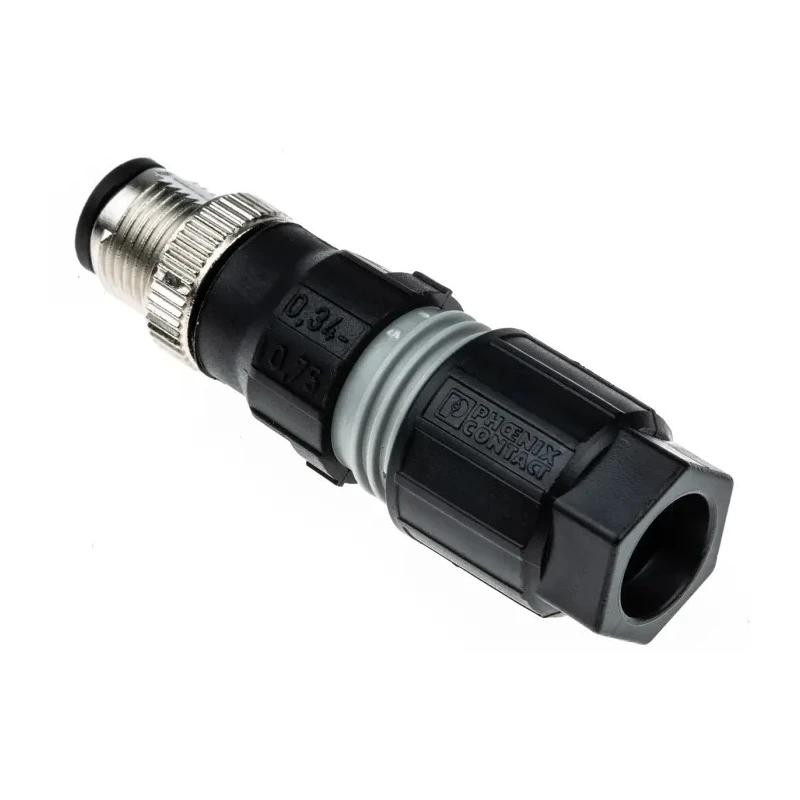

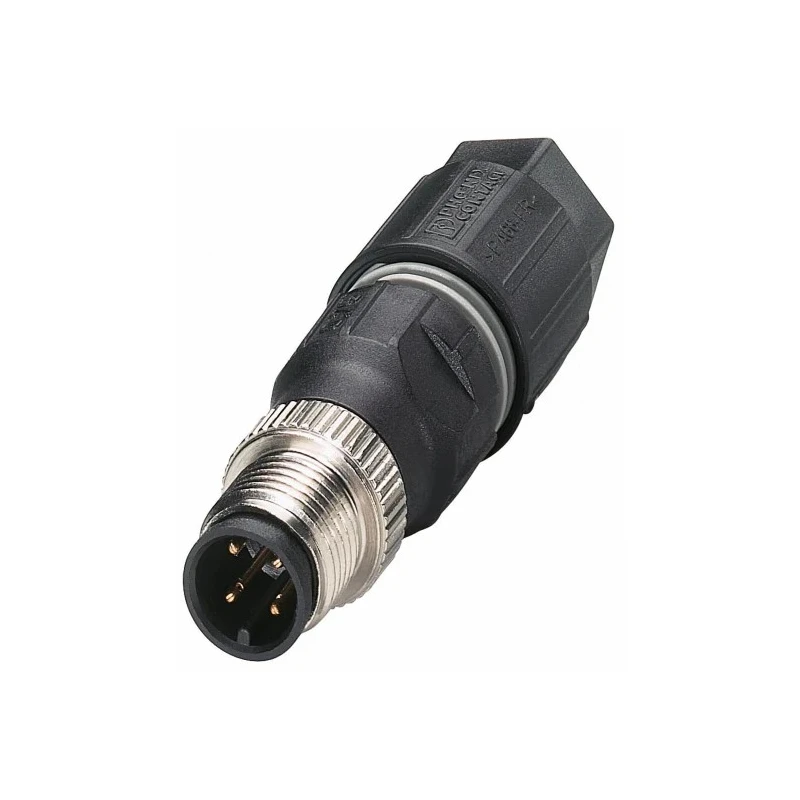

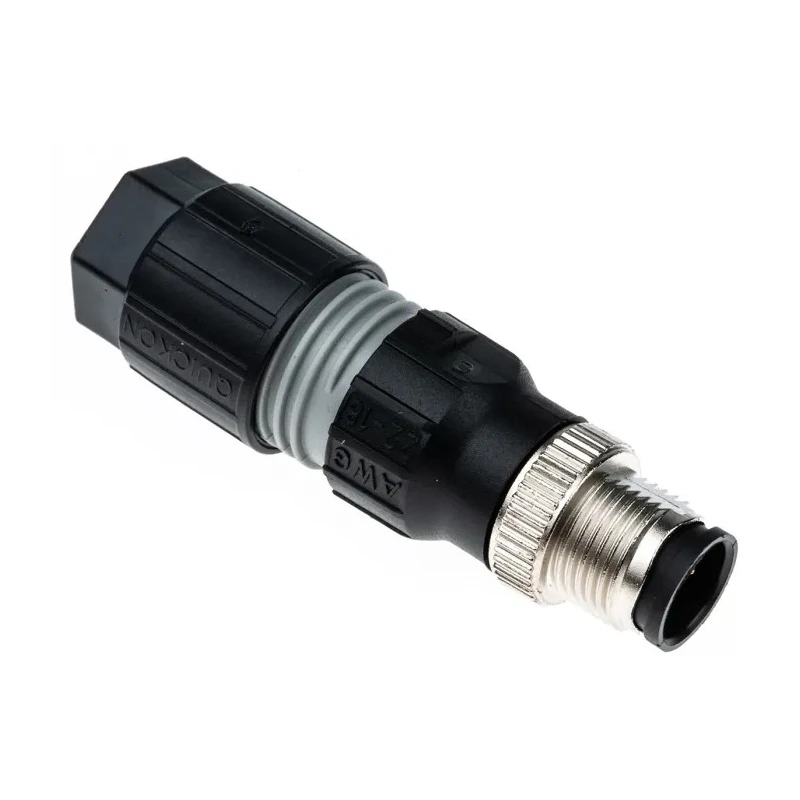

Phoenix Contact Circular Connector Cable Mount Male Plug, 4 Contacts, M12 Size, 250V, 4A, IP65/IP67, SACC Series 1641785
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250.0V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 4A |
| Model | 1641785 |
| IP Rating | IP65, IP67 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | SACC |
| Termination Type | Clamp |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | cUL Recognised, cULus Recognised, EAC, M12 connector IEC 61076-2-101, RoHS, UL Recognised |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Mating Type | A Coded |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- The connector supports reliable operation within temperatures ranging from -25°C to 80°C.
- Contacts are made of copper with gold plating for superior conductivity and corrosion resistance.
- The clamp termination type allows easy and secure cable connection without stripping.
- Constructed with durable polyamide housing material and nickel-plated zinc for corrosion protection.
- It is mechanically rated to withstand 100 insertion and withdrawal cycles.
- The connector features straight orientation and threaded end for secure mating.
- Conforms to standards including cUL, cULus, EAC, IEC 61076-2-101, RoHS, and UL recognition.
- Its IP67 rating means the device is dust tight and can be immersed in up to 1 meter of water for 30 minutes.
Product Description
Phoenix Contact 1641785 circular connector is a high-quality industrial circular connector designed for demanding environments. It is a cable mount male plug with 4 contacts and M12 connector size, operating at up to 250 volts and 4 amperes of current. The connector is part of the SACC series and A-coded for compatibility with various automation and control systems.
This connector is engineered to perform reliably in temperature ranges from -25°C to +80°C, making it suitable for both indoor and outdoor industrial applications. Its housing made from polyamide with corrosion-resistant nickel-plated zinc components ensures durability and long service life in harsh conditions.
The gold-plated copper-alloy contacts provide excellent electrical conductivity and corrosion resistance essential for stable signal transmission. The clamp termination type speeds up installation by eliminating the need for wire stripping, which reduces assembly time and prevents wiring errors.
Its IP65 and IP67 ingress protection ratings ensure that the connector is dust tight and water resistant, capable of being immersed in water up to 1 meter deep for 30 minutes. This makes it optimal for use in industrial automation, manufacturing, laboratory instrumentation, and control systems exposed to challenging environments.
The connector features a straight orientation and a threaded end, providing secure and reliable mating with corresponding female sockets. It is mechanically rated for 100 insertion and withdrawal cycles, adding to its operational robustness.
Fully compliant with international standards such as cUL Recognised, cULus Recognised, EAC certification, IEC 61076-2-101, RoHS, and UL recognitions, this circular connector meets strict quality and safety requirements.
The connector supports operation between -25°C and 80°C, suitable for varied industrial environments. Clamp termination ensures quick, reliable installation without stripping wires. Gold-plated copper contacts enhance conductivity and corrosion resistance.
Polyamide housing with nickel-plated zinc provides excellent mechanical durability and corrosion protection. IP65 and IP67 rated for dust tightness and water immersion protection. Threaded end and straight orientation offer secure connection and easy maintenance.
Meets multiple global standards, including UL and RoHS certifications. 100 cycles mechanical endurance supports long-term industrial use.
Manufactured in Germany, the Phoenix Contact 1641785 connector is ideal for use in industrial and manufacturing settings, automated production lines, control systems, and sensor networks. Its robust build and high protection make it a trusted choice for demanding environments.
Explore more Industrial Circular Connectors and related electronic components in the Electronics & Electricals category on EnvMart for reliable and certified products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum voltage of 250V and a current rating of 4A.
It operates reliably within a temperature range of -25°C to +80°C.
The connector has an IP65 and IP67 rating, making it dust tight and capable of withstanding immersion in water up to 1 meter for 30 minutes.
The housing is made of polyamide, and the contacts are copper with gold plating for enhanced conductivity and corrosion resistance.
This connector features 4 contacts.
It utilizes a clamp termination type, allowing for easy and secure cable connection without the need for wire stripping.
Yes, it is designed for both indoor and outdoor industrial applications due to its robust construction and temperature range.
It conforms to several standards, including cUL Recognised, cULus Recognised, EAC, IEC 61076-2-101, RoHS, and UL Recognised.
It is mechanically rated for 100 insertion and withdrawal cycles, ensuring reliable operation over time.
This connector features a straight orientation with a threaded end for secure mating.
This connector is manufactured in Germany.
It uses A coding, which is compatible with various automation and control systems.
