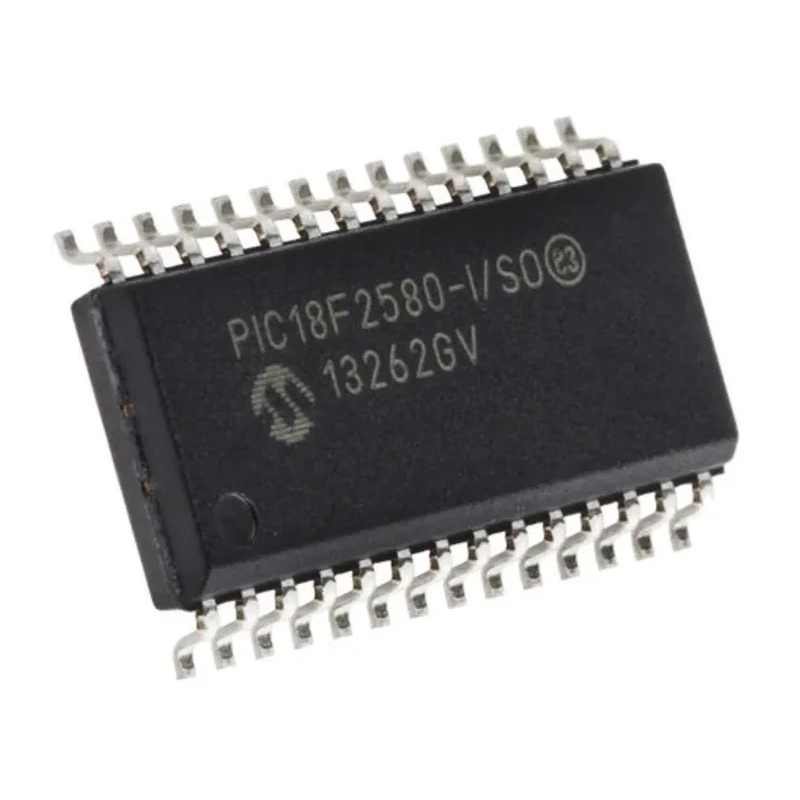

Microchip 8 bit PIC Microcontroller PIC18F2580-I/SO, 40 MHz, 32kB FLASH, 28-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 17.9mm |
| Model | PIC18F2580-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC18F2580 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Interface Type | SPI |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 25 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| Microchip PIC18F258-I/SO, 8 bit PIC Microcontroller FLASH, 28-Pin SOICBrand | Microchip |
Key Features
- Operates up to a maximum clock frequency of 40 MHz.
- Features 32kB of flash program memory for reliable code storage.
- Equipped with 1.54kB RAM and supports 8 x 10 bit ADC inputs.
- Includes 25 programmable I/O pins and 4 timers.
- Supports SPI interface for efficient data communication.
- Operates within voltage range from 2V minimum to 5.5V maximum supply voltage.
- Designed for surface mount applications with a compact 28-pin SOIC form factor.
- Rated for operation between -40°C and 85°C temperatures.
Product Description
Microchip PIC18F2580-I/SO is a high-performance 8 bit PIC microcontroller designed for embedded system applications requiring efficient processing at up to 40 MHz clock speed. It features a 28-Pin SOIC surface mount package which makes it suitable for compact PCB designs in industrial, consumer electronics, and automation sectors.
This microcontroller provides a flash program memory size of 32kB along with 1.54kB RAM, enabling storage and execution of complex firmware. It supports SPI data interface facilitating high-speed serial communication with external peripherals.
The 25 programmable I/O pins and 4 timer modules offer versatile control capabilities for timing-sensitive applications. It includes 8 channels of 10-bit ADC to enable precise analog signal processing tasks.
Its broad operating voltage range from 2V to 5.5V accommodates a wide array of power supply configurations with a maximum power dissipation of 1W ensuring low heat generation. The device can function reliably in extreme environmental conditions with operating temperature from -40°C up to 85°C.
The microcontroller employs a RISC (Reduced Instruction Set Computing) architecture, optimized for speed and code efficiency in embedded tasks. This product is suitable for industrial automation, instrumentation, consumer electronics, and other embedded development projects.
Operates up to a maximum clock frequency of 40 MHz. Features 32kB flash program memory and 1.54kB RAM. Supports SPI interface and 8 x 10-bit ADC channels. Includes 25 programmable I/O pins and 4 timers. Compact 28-Pin SOIC surface mount package.
Operating voltage range: 2V to 5.5V. Operating temperature range: -40°C to 85°C. Maximum power dissipation: 1 watt. RISC instruction set architecture. Ideal for embedded system and industrial applications. Explore a comprehensive range of Microchip Microcontrollers and semiconductor components on EnvMart to support your embedded design and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It features 32kB of flash program memory for reliable code storage.
The operating voltage range for the PIC18F2580-I/SO is from 2V to 5.5V.
This microcontroller has a RAM size of 1.54kB.
The PIC18F2580-I/SO supports 25 programmable I/O pins.
It supports the SPI interface for efficient data communication.
This microcontroller comes in a 28-Pin SOIC surface mount package.
The operating temperature range is from -40°C to 85°C.
It includes 8 channels of 10-bit ADC.
The maximum power dissipation is rated at 1 watt.
This microcontroller includes 4 timer modules.
It employs a RISC (Reduced Instruction Set Computing) architecture.
