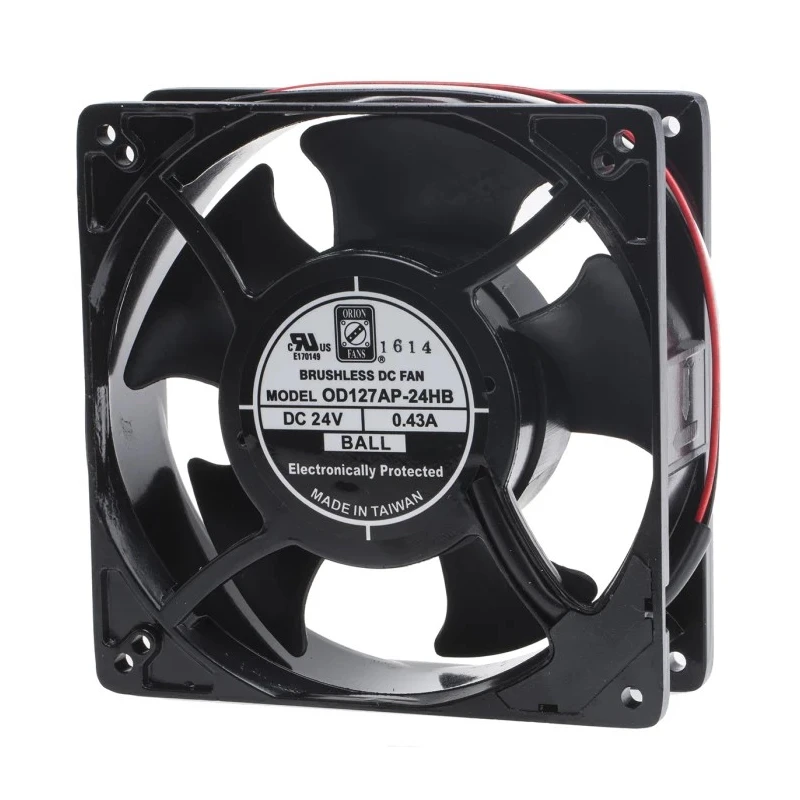

RS PRO OD127AP Series Axial Fan 24V DC 10.6W 237.9m³/h Air Flow 127mm Square Frame Ball Bearing OD127AP

RS PRO OD127AP Series Axial Fan is a high-quality cooling fan operating at 24V DC with a power consumption of 10.6W and maximum current of 430mA. This 127mm square frame fan offers an air flow rate of 237.9 m³/h and runs at 3000 RPM, producing a low noise level of 46 dB. Manufactured with a brushless DC motor featuring polarity protection, locked rotor, and auto-restart capabilities, it ensures reliable operation and longevity.

The fan impeller is made from PBT UL94V-0 rated thermoplastic material, providing excellent durability and flame resistance. The ball bearing system supports superior performance and a typical life expectancy of 60,000 hours. Equipped with a tachometer output, the fan enables precise speed monitoring and control, suitable for advanced cooling management.

This axial fan’s backward curved design optimizes airflow and efficiency, suitable for diverse industrial and commercial applications. Typical use cases include cooling server racks, electrical enclosures, computer towers, and other electronic equipment where effective heat dissipation is crucial for reliable operation and component protection.

With compliance to UL, TUV, RoHS, and CE standards, the OD127AP series fan ensures safety and environmental considerations for modern applications. The compact frame dimensions of 127 mm width, 127 mm height, and 38 mm depth enable integration into tight spaces without compromising performance.

Installed in varied sectors such as industrial automation, HVAC systems, IT infrastructure, and manufacturing equipment, this axial fan exemplifies a robust and efficient thermal management solution. Package contents include the RS PRO OD127AP axial fan unit ready for immediate deployment.

Operates at 24V DC supply voltage ensuring stable performance. Ball bearing design provides extended life of typically 60,000 hours. Delivers air flow of 237.9 cubic meters per hour to cool components effectively. Brushless motor with polarity and locked rotor protection for safety.

Compact frame size of 127mm square and 38mm depth fits varied installations. Fan speed runs at 3000 RPM delivering low noise operation at 46 dB. Constructed with PBT UL94V-0 thermoplastic impeller for durability. Includes tachometer output for speed sensing and control.

Backward curve impeller optimizes airflow and efficiency. Suitable for server racks, electrical cabinets, laptops, and enclosure cooling. Explore more industrial Axial Fans and cooling solutions here at EnvMart for enhanced equipment longevity and operational efficiency.
