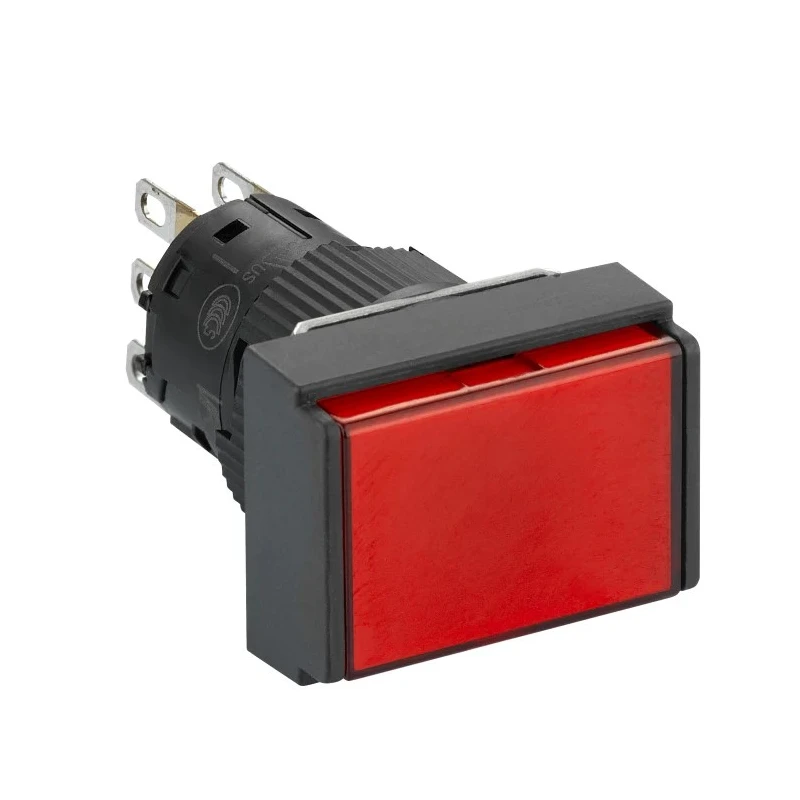

Schneider Electric Harmony Series Illuminated Push Button Switch, Spring Return, Panel Mount, 16 mm Cutout, SPDT XB6EDW4B1P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 25mm |
| Length | 90mm |
| Model | XB6EDW4B1P |
| IP Rating | IP65 |
| Width | 40mm |
| Mount Type | Panel |
| Series | Harmony |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 CO |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Quick Connect |
| LED Colour | Red |
| Switch Operation | Spring Return |
| Actuator Colour | Red |
| Actuator Style | Rectangular |
| Legend | Blank |
Key Features
- Operates with a spring return mechanism ensuring the button returns to its original position.
- Illuminated with a built-in red LED to provide clear signaling.
- Designed to mount on panels with a 16 mm cutout dimension.
- Rectangular actuator style with quick connect terminal type for easy installation.
- IP65 rated for protection against dust ingress and low-pressure water jets.
- Suitable for operating temperatures from -25°C to 55°C.
- Durable plastic bezel resistant to liquids and easy to maintain.
- Meets multiple safety and industrial standards including IEC 60947-5-1 and UL 508.
Product Description
Schneider Electric XB6EDW4B1P Harmony Series Illuminated Push Button Switch is engineered for reliable control panel operations with a high degree of durability and safety features. Operating with a spring return mechanism, it ensures the actuator returns automatically to its default position after being pressed, making it ideal for momentary control actions.
The switch includes a built-in red LED indicator providing clear visual feedback. Designed for panel mounting, it requires a 16 mm cutout and features a rectangular actuator style with robust plastic bezel construction resistant to fluids and easy cleaning, perfect for industrial and commercial environments.
It is IP65 rated according to IEC 60529 standards, ensuring full protection against dust ingress and protection from low pressure water jets, supporting wash-down procedures in demanding applications.
The switch’s SPDT (Single Pole Double Throw) contact configuration coupled with quick connect terminal type facilitates versatile and secure electrical connections. The device operates reliably within a wide temperature range of -25°C to 55°C, making it suitable for various industrial environments including automotive factories, automation lines, safety control stations, and commercial facilities.
Spring return functionality for automatic button reset. Clear red LED illumination for operational status indication. Panel mount design with 16 mm cutout size. IP65 rated enclosure offering dust and water ingress protection.
Compliant with IEC 60947-5-1, UL 508, CSA C22.2 No 14, and JIS standards. Durable and easy to maintain plastic bezel frame. Quick connect terminals to simplify installation. Compact dimensions of 90 mm length, 40 mm width, and 25 mm height.
Suitable for industrial, laboratory, automotive, commercial, and automation control applications.
This illuminated push button switch is a trusted component in control panels requiring reliable operation and safety compliance. Its synergy of practical design, illumination, and durability ensures excellent performance across varied industrial and commercial use cases. Explore the wide range of Schneider Electric Harmony Series products in the EnvMart catalog to enhance your automation and control solutions.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this model is SPDT (Single Pole Double Throw).
This unit has dimensions of 90 mm in length, 40 mm in width, and 25 mm in height.
It operates reliably within a temperature range of -25°C to 55°C.
The switch requires a panel cutout size of 16 mm for proper installation.
It features quick connect terminals to facilitate easy and secure electrical connections.
It is rated IP65, providing protection against dust ingress and low-pressure water jets.
The built-in LED indicator is red, providing clear visual feedback during operation.
This model operates with a spring return mechanism, ensuring the button returns to its original position after being pressed.
The switch features a durable plastic bezel that is resistant to liquids and easy to maintain.
It meets multiple safety standards including IEC 60947-5-1 and UL 508.
It is suitable for various industrial environments including automotive factories, automation lines, and safety control stations.
It features a rectangular actuator style, designed for panel mounting.
