Schneider Electric Harmony Series Illuminated Push Button Switch, Spring Return, Panel Mount, 16 mm Cutout, SPDT XB6EDW3B1P

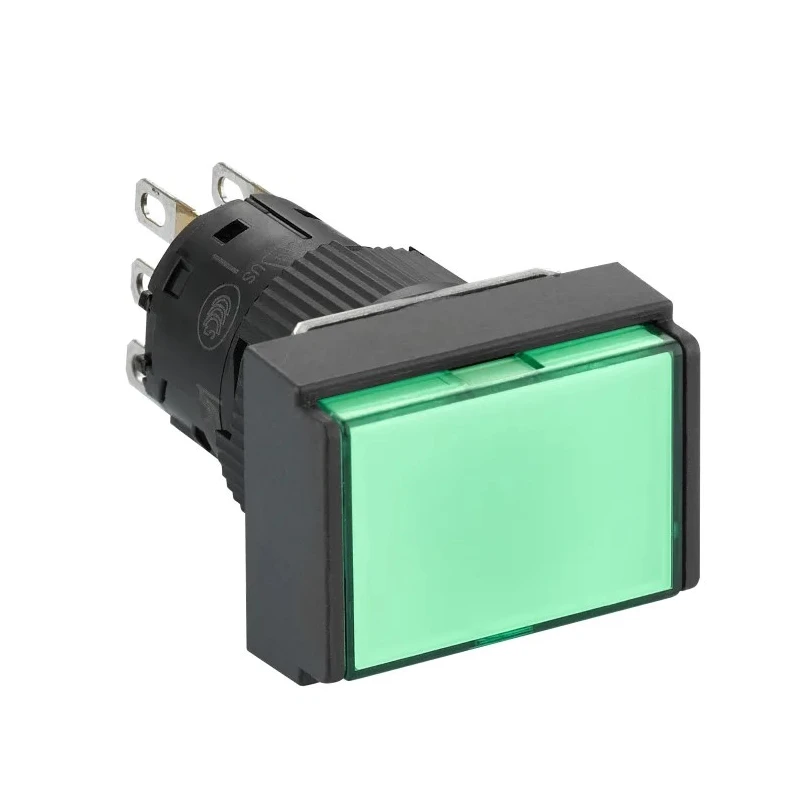

Schneider Electric XB6EDW3B1P Harmony Series Illuminated Push Button Switch is designed for industrial and commercial control panels, providing precise momentary actuation with spring return functionality. It features a durable rectangular green actuator and integral LED illumination for effective visual indication.

The panel mount push button requires a 16 mm cutout for easy installation and incorporates a SPDT contact configuration with quick connect terminals, facilitating straightforward wiring and maintenance. Its durable plastic bezel is built to withstand challenging environments and supports an IP65 protection rating, ensuring resistance to dust ingress and low-pressure water jets.

Operating effectively within a temperature range of -40°C to +70°C, this push button switch is suitable for demanding industrial applications such as production lines, automotive manufacturing, and distribution centres. The built-in cartridge fuse provides reliable short-circuit protection, enhancing safety during operation.

The switch meets rigorous international standards including CSA C22.2 No 14, JIS C 4520, IEC 60947-5-1, UL 508, IEC 60947-1, and JIS C 852, ensuring dependable performance and compliance.

The switch features spring return operation ensuring immediate return to its original position. Panel mount design with a 16 mm cutout size for easy installation. SPDT contact configuration with quick connect terminals for efficient wiring.

Durable plastic bezel with IP65 rating for protection against dust and low-pressure water jets. Operating temperature range from -40°C to +70°C supports industrial conditions. Integral green LED illumination for clear status indication.

Rectangular actuator style ensuring ergonomic operation. Short-circuit protection with built-in cartridge fuse enhances electrical safety. Compliant with international standards including IEC 60947-5-1 and UL 508.

This push button switch is an ideal component for control and safety functions in industrial automation, manufacturing, HVAC systems, and other commercial applications requiring reliable manual control inputs.
