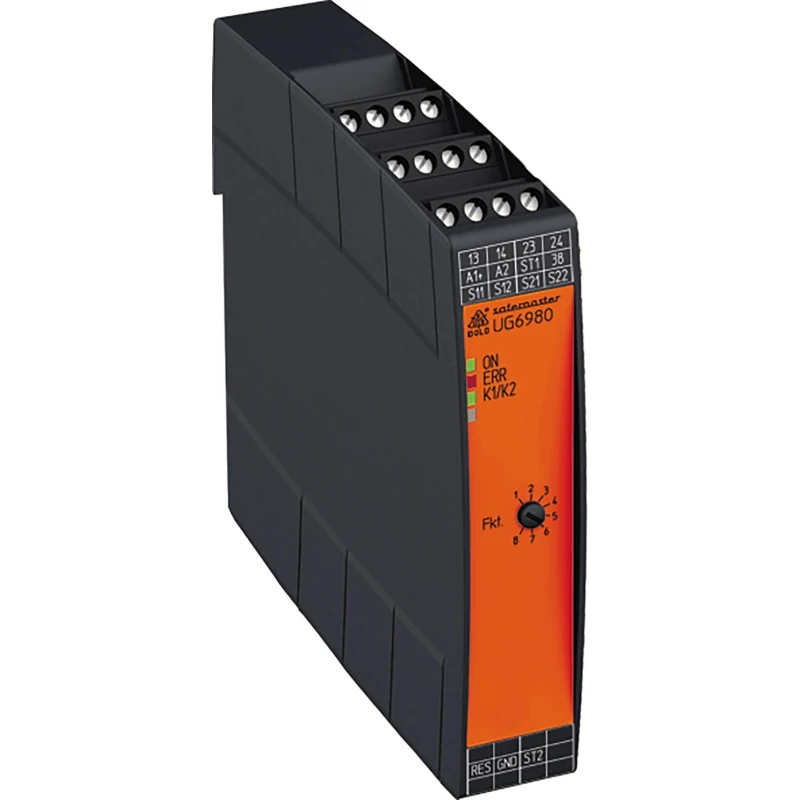

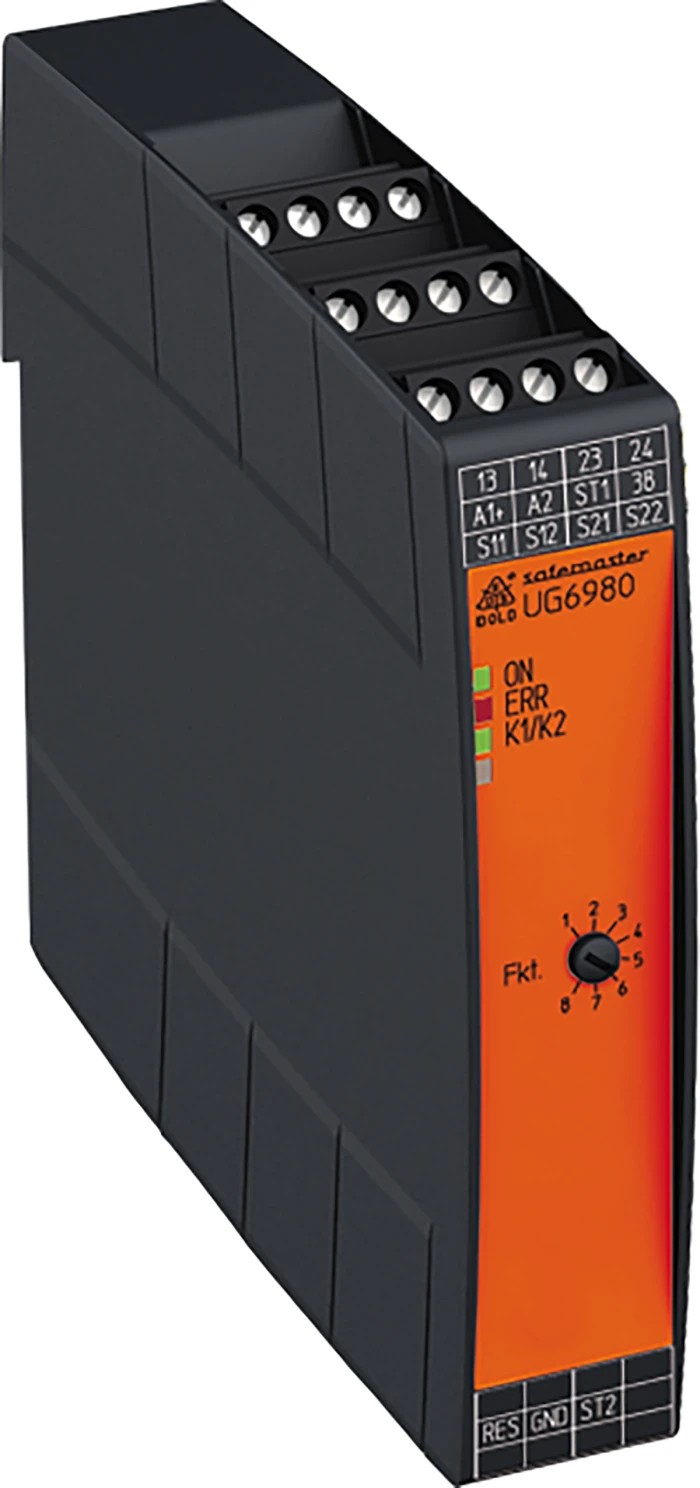

Dold UG6980 Series Safety Controller Safety Relay 24V dc DIN Rail Mount UG6980
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | LED Indicator |
| Output | max. 4 NO instantaneous semiconductor monitoring output |
| Brand | Dold |
| Length | 22.5mm |
| Model | UG6980 |
| Depth | 110mm |
| IP Rating | IP40, IP20 |
| Width | 120.3mm |
| Mount Type | DIN Rail |
| Series | UG6980 |
| Safety Category | SIL 3, 4, PLe, CAT 4 |
| Terminal type | Screw |
| Supply Voltage | 24V dc |
| Standards/Approvals | CE, UL |
| Contact Voltage | 24V dc |
| Contact Current | 15mA |
| Number of I/Os | 4 |
Key Features
- Features a max. 4 NO instantaneous semiconductor monitoring output.
- Equipped with LED indicators for operation, delay contacts, and failure status.
- Supports manual or automatic restart with line fault detection on the On-button.
- Mounts easily on a DIN rail for efficient industrial installation.
- Includes adjustable safety functions like E-Stop, two-hand control, safety gate, and light curtain monitoring.
- Designed with forcibly guided output contacts for reliable safety performance.
- Offers pluggable terminal blocks option for easy device exchange, with screw or cage clamp terminals.
- IP40 and IP20 rated for appropriate protection in industrial environments.
Product Description
Dold UG6980 Safety Controller Safety Relay 24V dc is an advanced safety relay designed for industrial automation applications requiring high safety and reliability. It features LED indicators to clearly display operation status, delay contacts, and fault conditions, supporting efficient monitoring and maintenance.
Its compact DIN rail mount form factor facilitates easy installation in control cabinets. The safety relay supports line fault detection with manual or automatic restart, ensuring continuous safety operation in critical systems.
This 2-channel safety relay offers forcibly guided output contacts and a maximum of 4 NO instantaneous semiconductor monitoring outputs, making it suitable for a variety of safety functions such as emergency stop (E-Stop), two-hand controls, safety gates, safety mats, edges, and light curtains.
The device is available with pluggable terminal blocks for convenient device replacement, with options for screw or cage clamp terminals to suit installation preferences. Rated IP40 and IP20, it is built to withstand industrial environments while maintaining safety category SIL 3, SIL 4, PLe, and CAT 4 compliance. It is CE and UL approved and manufactured in Germany for assured quality.
Max. 4 NO instantaneous semiconductor monitoring output. LED indicators for operation, delay contacts, and failure signals. Manual or automatic restart with line fault detection on the On-button. Adjustable safety functions including E-Stop, safety gates, two-hand control, safety mats, and light curtains.
Forcibly guided output contacts for enhanced safety. Pluggable terminal blocks available with screw or cage clamp terminals. DIN rail mount for secure installation. Compliance with CE and UL standards with IP40 and IP20 ratings.
Compact size: 22.5 mm width, 120.3 mm height, 110 mm depth. Manufactured in Germany to ensure premium quality.
This safety controller relay is ideal for industrial automation, manufacturing, process control, and safety automation applications requiring robust, reliable safety monitoring and control. Explore more Safety Relays and controllers at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a maximum of 4 NO instantaneous semiconductor monitoring outputs, providing versatile safety functionality.
It complies with safety categories SIL 3, SIL 4, PLe, and CAT 4, ensuring high safety standards for industrial applications.
The dimensions of this unit are 22.5 mm in width, 120.3 mm in height, and 110 mm in depth, making it compact for DIN rail installation.
The supply voltage for this safety relay is 24V dc, suitable for various industrial applications.
It is designed for DIN rail mounting, facilitating easy and secure installation in control cabinets.
It is equipped with LED indicators that display operation status, delay contacts, and failure signals for efficient monitoring.
This safety relay includes options for screw terminals, and it also supports pluggable terminal blocks for easy device exchange.
The UG6980 is rated IP40 and IP20, providing appropriate protection for industrial environments.
It offers adjustable safety functions including emergency stop (E-Stop), two-hand control, safety gates, and light curtain monitoring.
This safety relay is CE and UL approved, ensuring compliance with international safety standards.
The contact current rating for the Dold UG6980 is 15mA, suitable for its intended applications.
It is ideal for industrial automation, manufacturing, process control, and safety automation applications requiring reliable safety monitoring.
