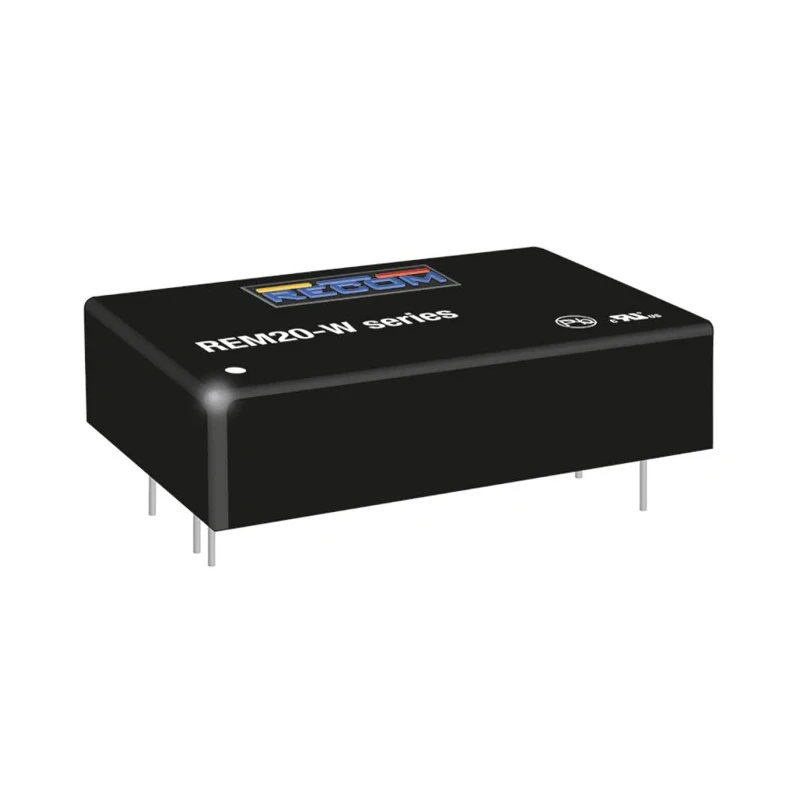

Recom DC/DC Converter 15V dc, -15 V dc 667 mA, 48V dc Input, 18V Input, 20 W, Through Hole REM20-W
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom REM20-W DC/DC Converter, 15V dc, -15 V dc/ 6 |
| Brand | Recom |
| Efficiency | 88% |
| Length | 40.6mm |
| Model | REM20-W |
| Depth | 10.2mm |
| Gross Weight | 24g |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | REM20-W |
| Maximum Operating Temperature | 105°C |
| Package Type | 1.6 x 1 in |
| Minimum Operating Temperature | -40°C |
| MTBF | 1700000h |
| Number of outputs | 2 |
| Ripple and Noise | 100mV |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 48V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 15, -15V dc |
| Output Current 1 | 667mA |
| Isolation Voltage | 5kV ac |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio4 | 1 |
Key Features
- Operates with a wide input voltage range from 18V to 48V dc.
- Features through hole mounting for secure PCB installation.
- Offers 5kV AC isolation for enhanced electrical safety.
- Efficiency is rated at 88%, optimizing power use.
- Operates reliably between -40°C to 105°C maximum temperature.
- Compact package size of 1.6 x 1 inches with dimensions 40.6mm x 25.4mm x 10.2mm.
- Includes low output ripple of 100mV for stable voltage delivery.
- Complies with multiple safety standards including UL62368-1 and IEC60601-1.
Product Description
Recom REM20-W DC/DC Converter is designed to provide dual regulated output voltages of +15V dc and -15V dc at 667 mA current, suitable for a range of industrial and electronic applications. This converter accepts a wide input voltage range from 18V to 48V dc and delivers a maximum output power of 20 W with a high efficiency of 88%. The converter features through hole mounting style in a compact 1.6 x 1 inch package, measuring 40.6mm in length, 25.4mm in width, and 10.2mm in depth, supporting easy circuit board assembly.
This model offers reinforced isolation rated at 5kV AC for one minute, ensuring safety in high voltage environments with a low leakage current of 2μA, making it compatible with medical applications requiring B, BF, and CF classifications. Its robust design includes short circuit and overload protection to enhance device reliability.
With an MTBF of 1.7 million hours, the device is engineered for long service life and dependable operation across a broad temperature range from -40°C to 105°C maximum. It complies with international standards such as UL62368-1, ANSI/AAMI ES60601-1, CAN/CSA standards, and IEC60601-1, providing assurance of quality and safety.
The REM20-W series is ideal for use in industrial automation, telecommunications, medical instrumentation, and other applications requiring dual output DC/DC power conversion with reliable electrical isolation. Its low output ripple and noise help maintain the integrity of sensitive electronic circuits.
Operates with a wide input voltage range from 18V to 48V dc. Dual regulated outputs of 15V and -15V dc with 667 mA current. Reinforced 5kV AC isolation with low leakage current of 2μA. Robust safety compliance including UL and IEC standards.
Compact through hole mounting package for PCB integration. High efficiency of 88% and low output ripple of 100mV. Broad operating temperature range from -40°C to 105°C. Short circuit and overload protected for device safety.
Long MTBF of 1,700,000 hours for dependable performance.
This DC/DC converter is ideal for use in industrial, medical, and electronic systems requiring stable dual-voltage power supply with safety isolation. Explore more DC/DC Converters in the Electronics & Electricals category at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 48V dc.
This unit provides dual regulated output voltages of +15V dc and -15V dc.
The maximum output power of this converter is 20 W.
It has an efficiency rating of 88%.
The isolation voltage is rated at 5kV AC.
The dimensions of this converter are 40.6mm in length, 25.4mm in width, and 10.2mm in depth, with a package size of 1.6 x 1 inches.
This model operates reliably between -40°C to 105°C.
The REM20-W has two outputs.
It features a through hole mounting style for secure PCB installation.
It complies with multiple safety standards including UL62368-1 and IEC60601-1.
The output ripple and noise is specified at 100mV.
The mean time between failures (MTBF) for this model is 1.7 million hours.
