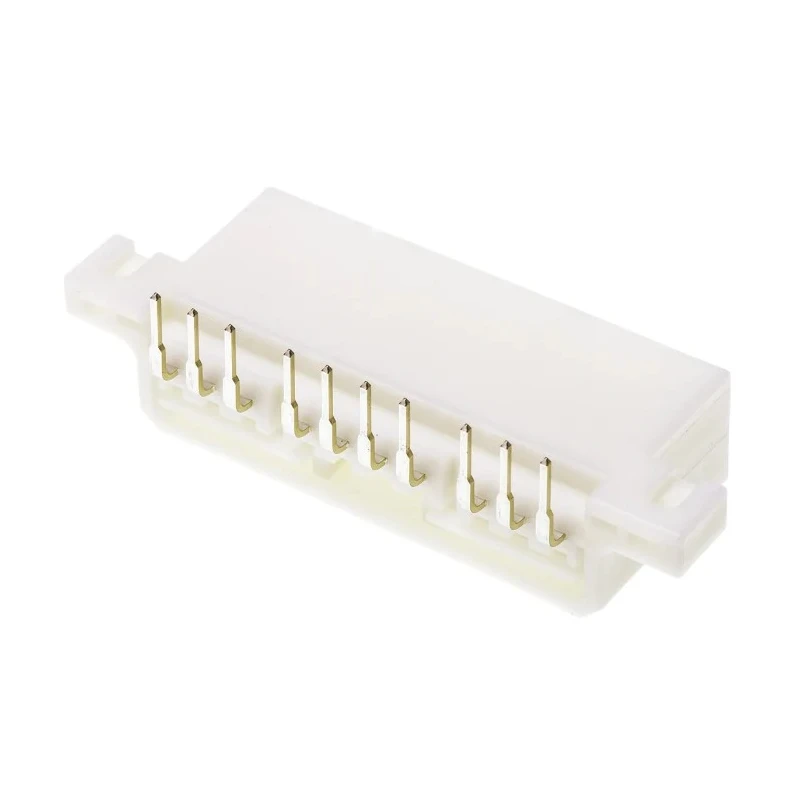

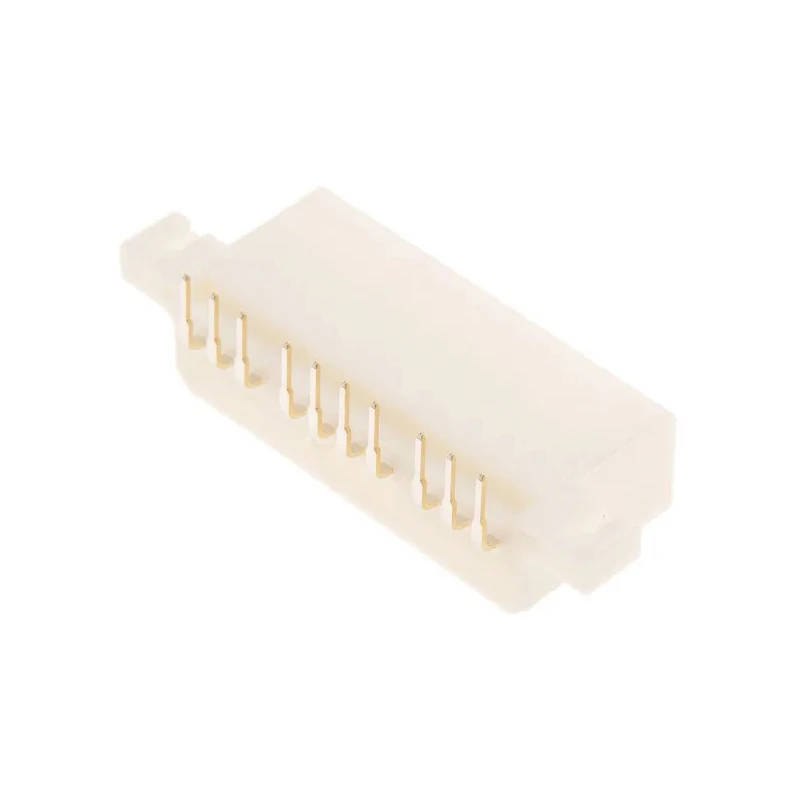

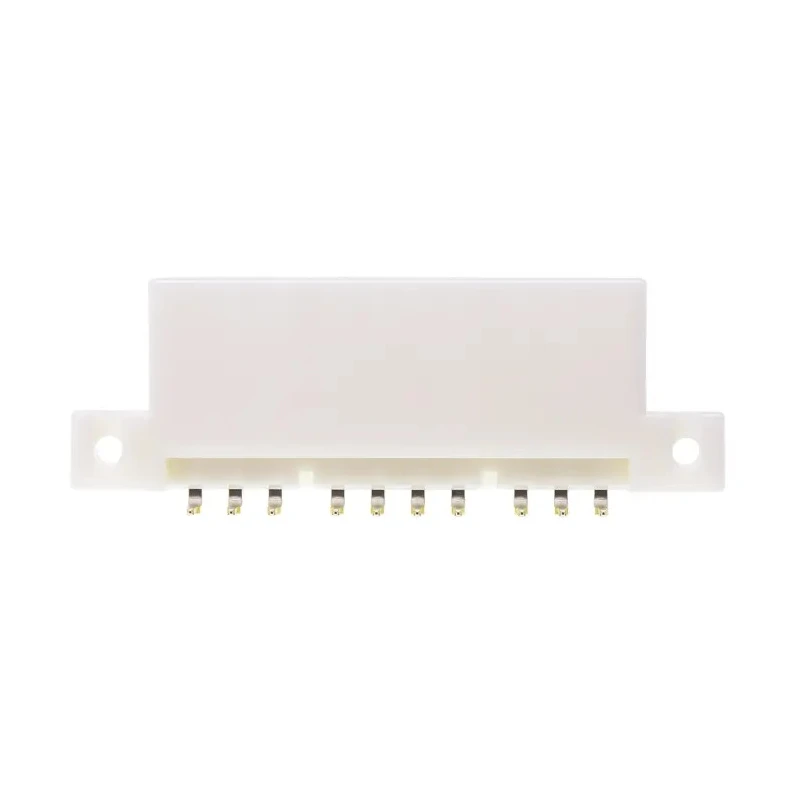

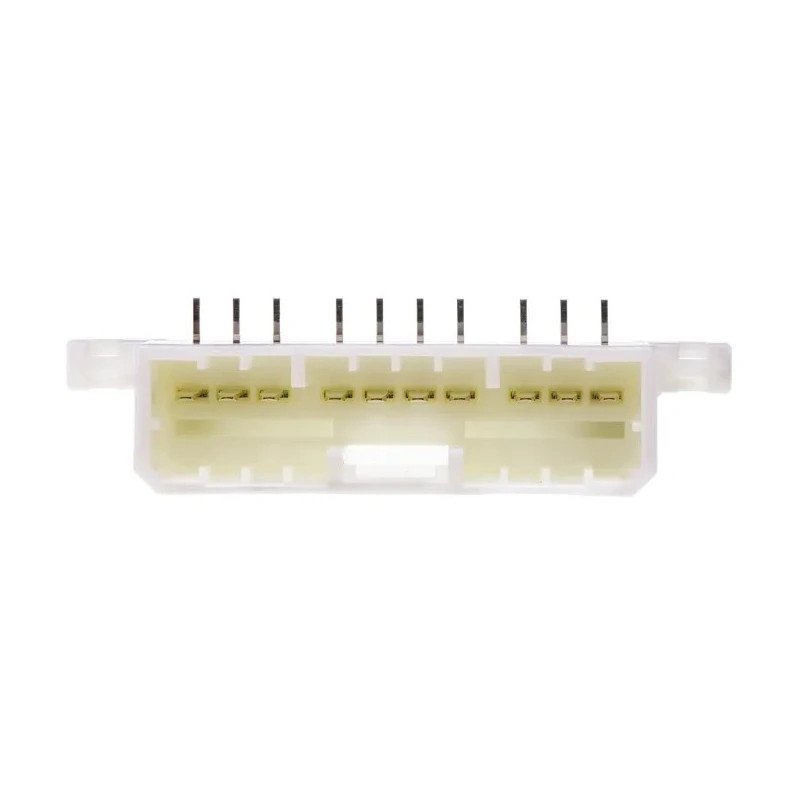

TE Connectivity MULTILOCK 070 Female Connector Housing 3.5 mm Pitch 10 Way 1 Row Right Angle 174467-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Length | 56.8mm |
| Model | 174467-1 |
| Width | 12.5mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 070 |
| Interfaces | lance design |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| For Use With | Multilock Wire-to-Board Connector |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- The connector features a right-angle orientation suitable for tight mounting spaces.
- It incorporates a housing lance design protecting contacts from damage caused by KOJIRI action during mating.
- An integral double locking system ensures secure contact retention and prevents partial insertion.
- Manufactured from polybutylene terephthalate for high durability and heat resistance.
- Compatible with MULTILOCK Wire-to-Board connectors using female crimp contacts ordered separately.
- This series is tailored for automotive powertrain, safety, body, and chassis system applications.
- Compact form factor with 56.8 mm length and 12.5 mm width allows for high-density wiring layouts.
- Designed to meet demanding automotive signal and power transfer requirements.
Product Description
TE Connectivity 174467-1 MULTILOCK 070 Female Connector Housing is a robust 3.5 mm pitch connector housing designed for automotive wire-to-board and wire-to-wire applications. Featuring 10 contact positions in a single row and a right-angle mount, this connector housing facilitates compact, reliable interconnections in powertrain, safety, security, and body electronics systems.
The MULTILOCK 070 series connectors are engineered with a housing lance design that effectively protects contacts from damage due to rocking motion (KOJIRI action) that occurs during mating and unmating. This ensures long-term reliability even in harsh automotive environments. The integral double locking mechanism secures contacts firmly in place, preventing partial insertions and enhancing connection stability.
Constructed from durable polybutylene terephthalate material, this connector housing combines lightweight qualities with high heat and chemical resistance, making it suitable for demanding automotive applications. The right-angle orientation supports efficient PCB space utilization and cable routing.
This series requires female crimp contacts (ordered separately) and mates with male tab contacts in receptacle housings. The MULTILOCK 070 connectors are widely used in automotive powertrain control modules, driver information systems, convenience electronics, and chassis control modules requiring high density and reliable connections.
Key features include compact miniaturized design, high-density 3.5 mm pitch, protection from KOJIRI action, and a secure double lock system. The housing length is 56.8 mm and width is 12.5 mm, optimized for tight automotive assemblies.
The connector housing is a component of a comprehensive automotive connector system that allows flexible wiring configurations. Compatible with MULTILOCK series wire-to-wire and wire-to-board connectors for varied automotive electrical requirements.
Provides a secure and durable connection reducing mechanical stress on contacts during vibration and temperature variations.
This product is ideal for industrial, automotive manufacturing, maintenance, and repair applications. It supports high-density electrical signal and low power transmission in vehicles, ensuring system reliability and efficiency.
Explore EnvMart for a wide range of high-quality automotive connectors and housing solutions to meet your industrial and manufacturing needs.
Explore more products in our Automotive Connector Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MULTILOCK 070 connector housing features a pitch of 3.5 mm.
This model supports 10 contact positions in a single row.
It has a right-angle orientation, suitable for tight mounting spaces.
The housing is constructed from polybutylene terephthalate, which offers high durability and heat resistance.
The connector housing measures 56.8 mm in length and 12.5 mm in width.
Yes, it is compatible with MULTILOCK Wire-to-Board connectors using female crimp contacts, which are ordered separately.
This model utilizes a through-hole mounting type.
The housing lance design protects contacts from damage caused by KOJIRI action during mating, ensuring long-term reliability.
It is tailored for automotive powertrain, safety, body, and chassis system applications.
It incorporates an integral double locking system that secures contacts and prevents partial insertion.
The connector housing is manufactured in India.
This connector housing belongs to the MULTILOCK 070 series.
