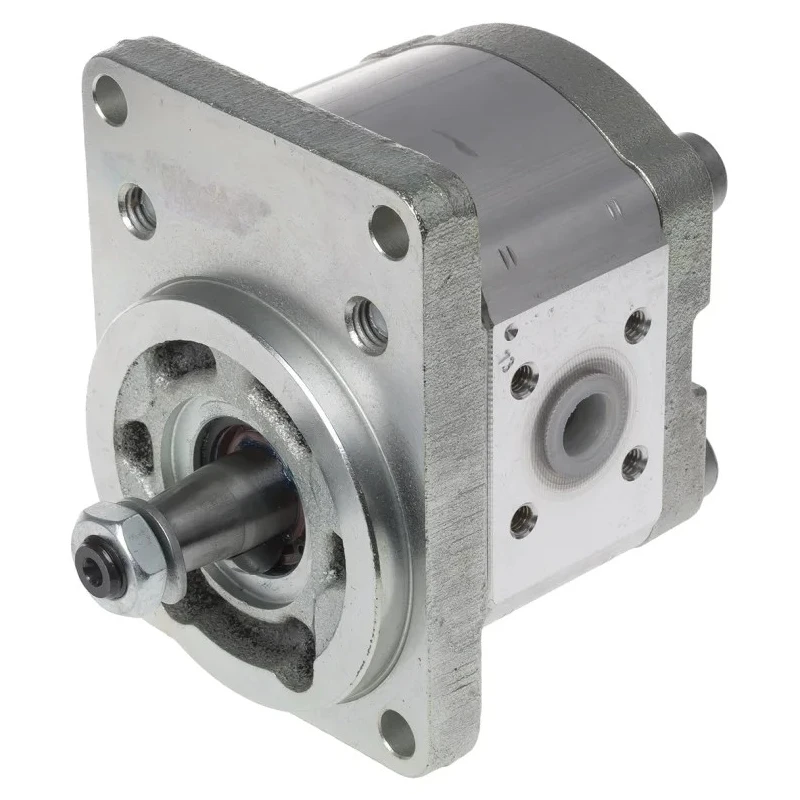

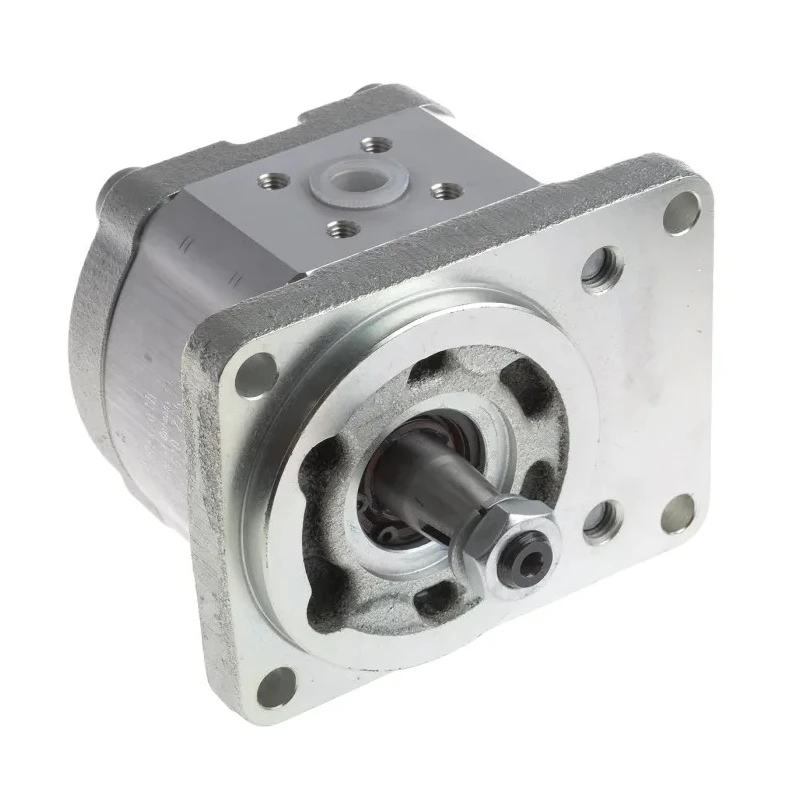

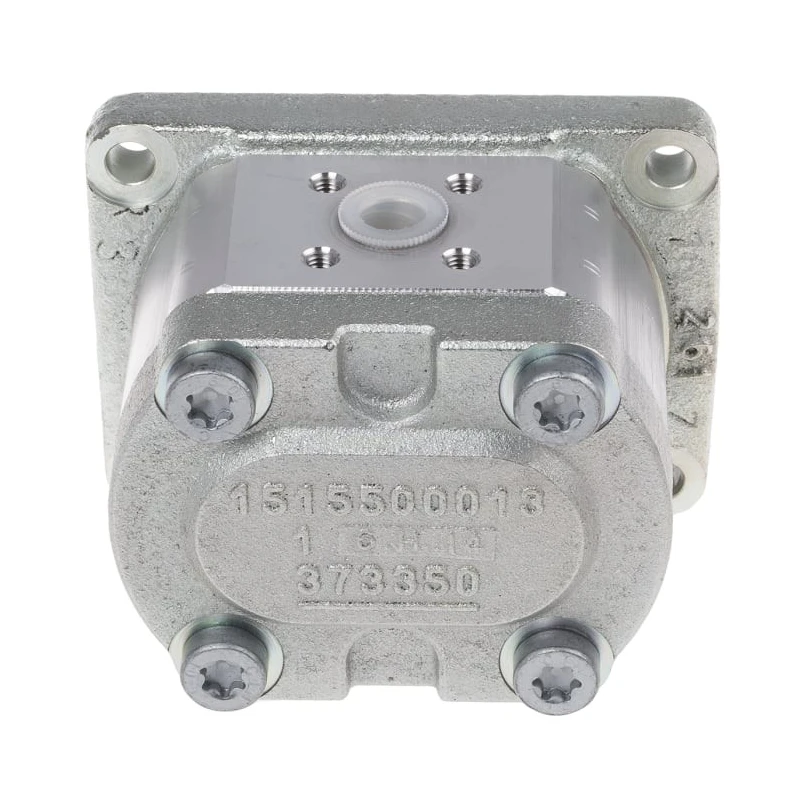

Bosch Rexroth Hydraulic Gear Pump 4 cm³, 280 bar Continuous Pressure, Clockwise Rotation, 4000 rpm Maximum Speed 0510225006
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Bosch Rexroth |
| Height | 120mm |
| Length | 85mm |
| Gross Weight | 3.2kg |
| Width | 90mm |
| Displacement | 4cm³ |
| Series | AZP |
| Direction Of Rotation | Clockwise |
| Continuous Operating Pressure | 280bar |
| Maximum Rotational Speed | 4000rpm |
| Self Aspirating External Gear Pump, 1 | 5 Tapered Shaft |
| Bosch Rexroth Hydraulic Gear Pump 1PF2G2-41/004RC20MBBrand | Bosch Rexroth |
Key Features
- Designed for clockwise direction of rotation.
- Compact dimensions with length 85 mm, width 90 mm, height 120 mm.
- Supports mineral oil fluids with viscosity between 10 to 300 mm²/s.
- Seal material is durable nitrile rubber (NBR) for temperatures -15°C to +80°C.
- Suitable for high load applications with plain bearings.
- Flange fittings for pipe connections available separately.
- Constructed for industrial hydraulic power applications.
Product Description
Bosch Rexroth 0510225006 Hydraulic Gear Pump is a self aspirating external gear pump with a 4 cm³ nominal displacement per revolution. It operates under continuous pressure up to 280 bar and maximum rotational speed of 4000 rpm, designed primarily for clockwise rotation.

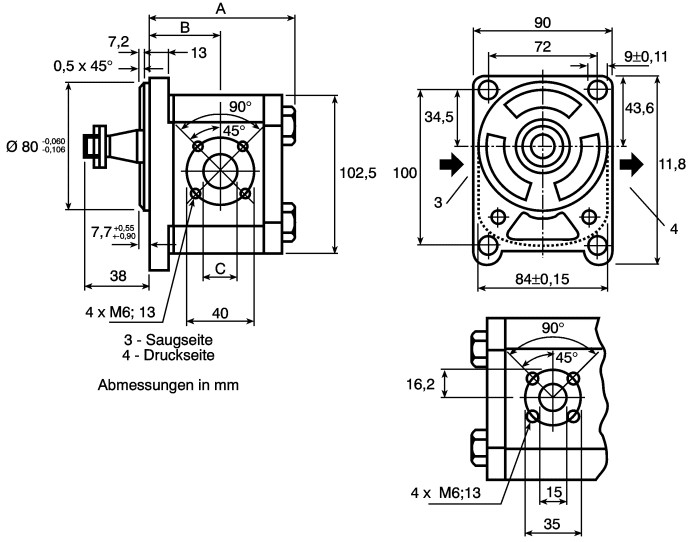

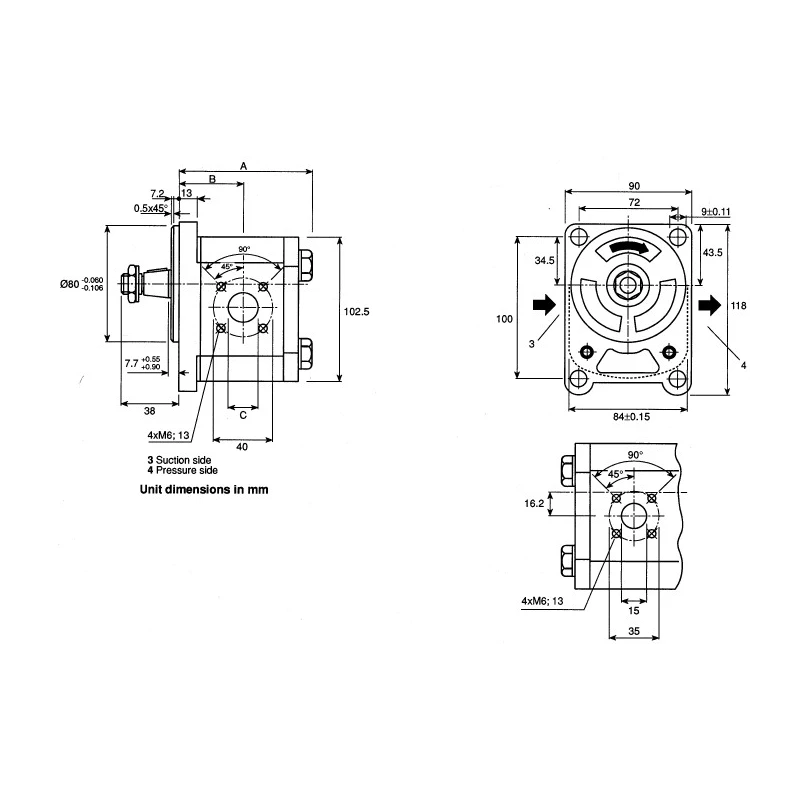

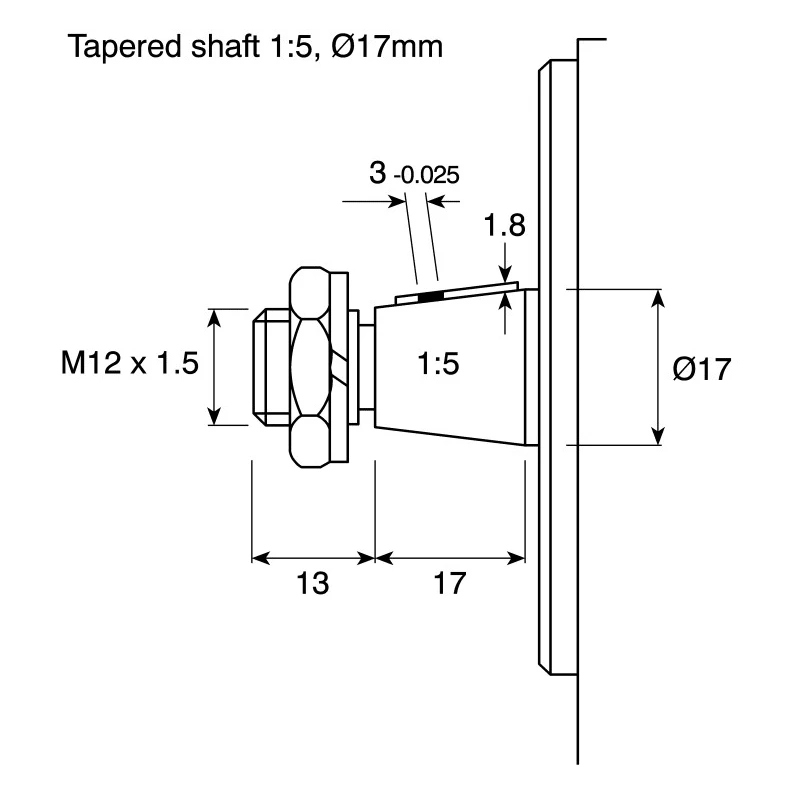

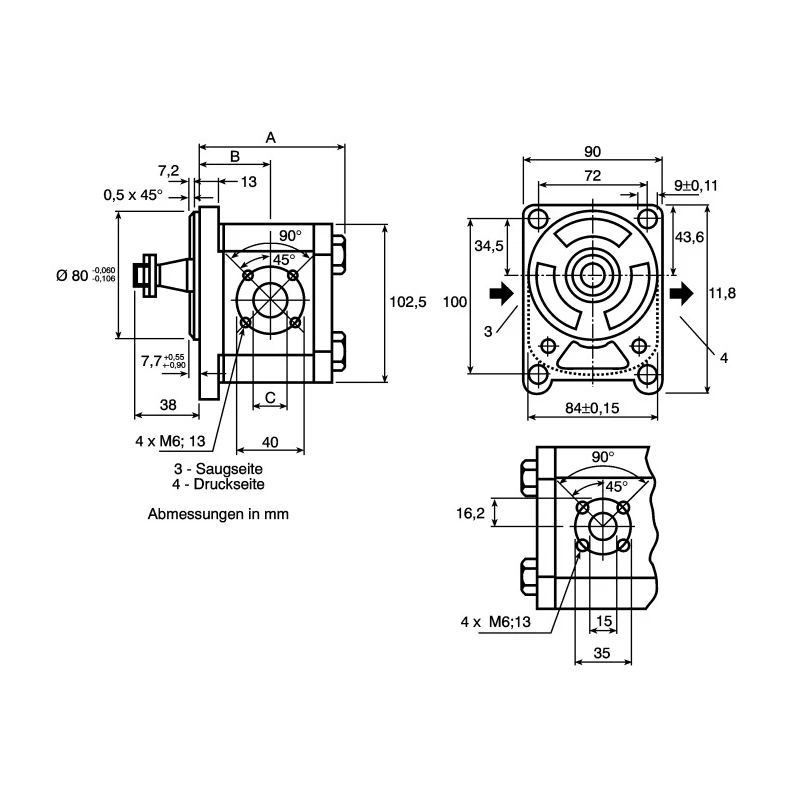

This pump features a 1:5 tapered shaft and plain bearings engineered to handle high load conditions, ensuring robustness and longevity in demanding industrial environments. Its compact physical dimensions - 85 mm length, 90 mm width, and 120 mm height - enable installation flexibility within hydraulic systems.
Seal material is nitrile rubber (NBR), supporting operating fluid temperatures from -15°C to +80°C and accommodating mineral oil use with fluid viscosities ranging from 10 mm²/s to 300 mm²/s.
The pump's design facilitates maintenance and installation support with a range of separately available flange fittings arranged in a right angle pattern, each including fixing screws, O-rings, cutting rings, and retaining nuts.
Intended for industrial hydraulic applications such as manufacturing machinery, fluid power systems, construction equipment, and automation, this gear pump delivers reliable performance with precise flow control.
Self aspirating external gear pump with 1:5 tapered shaft. Clockwise rotation optimized for hydraulic system integration. Compact and robust build with 3.2 kg weight. Seal material NBR for reliable fluid handling under varied temperatures.
Supports continuous operating pressure of 280 bar. Maximum rotational speed capped at 4000 rpm. Broad mineral oil fluid compatibility and viscosity range. Installation supported with dedicated flange fittings (sold separately).
Country of origin is Germany, ensuring premium engineering quality and standards compliance. This pump is ideal for industrial, manufacturing, and hydraulic power unit applications.
Explore more precision hydraulic pumps and components in our industrial pumping systems catalog to optimize your fluid power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous operating pressure of this hydraulic gear pump is 280 bar.
This hydraulic gear pump has a nominal displacement of 4 cm³ per revolution.
The maximum rotational speed of this pump is 4000 rpm.
The pump has a length of 85 mm, a width of 90 mm, and a height of 120 mm.
It supports mineral oil fluids with viscosities ranging from 10 mm²/s to 300 mm²/s.
This model is designed for clockwise rotation.
The gross weight of this pump is 3.2 kg.
The seal material is nitrile rubber (NBR), suitable for temperatures from -15°C to +80°C.

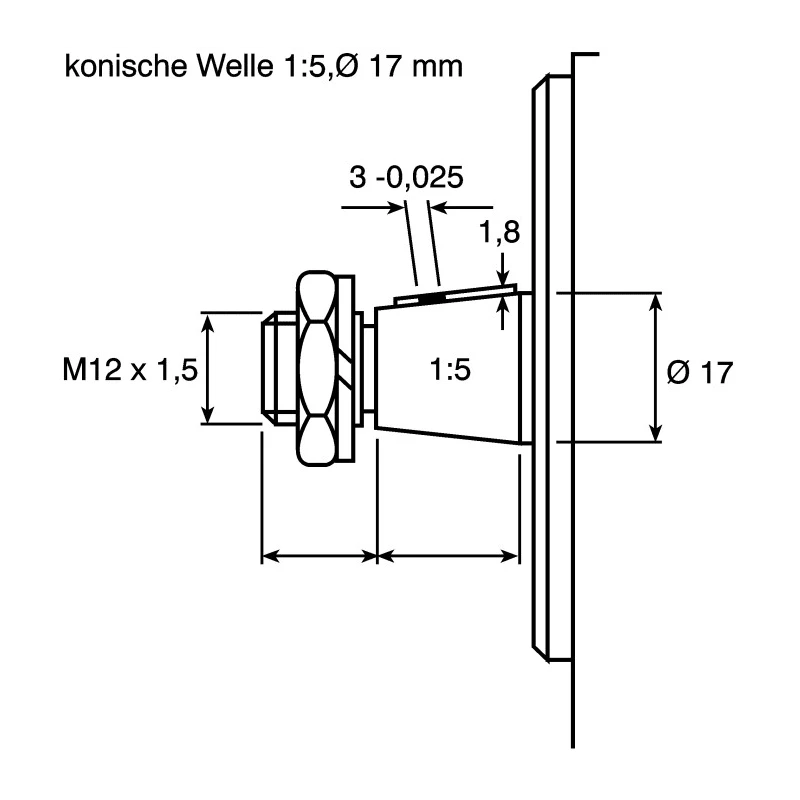

It features a 1:5 tapered shaft, designed for high load applications.
Flange fittings for pipe connections are available separately.
This pump is manufactured in Germany, ensuring compliance with high engineering standards.
It is intended for industrial hydraulic applications such as manufacturing machinery, fluid power systems, and construction equipment.
