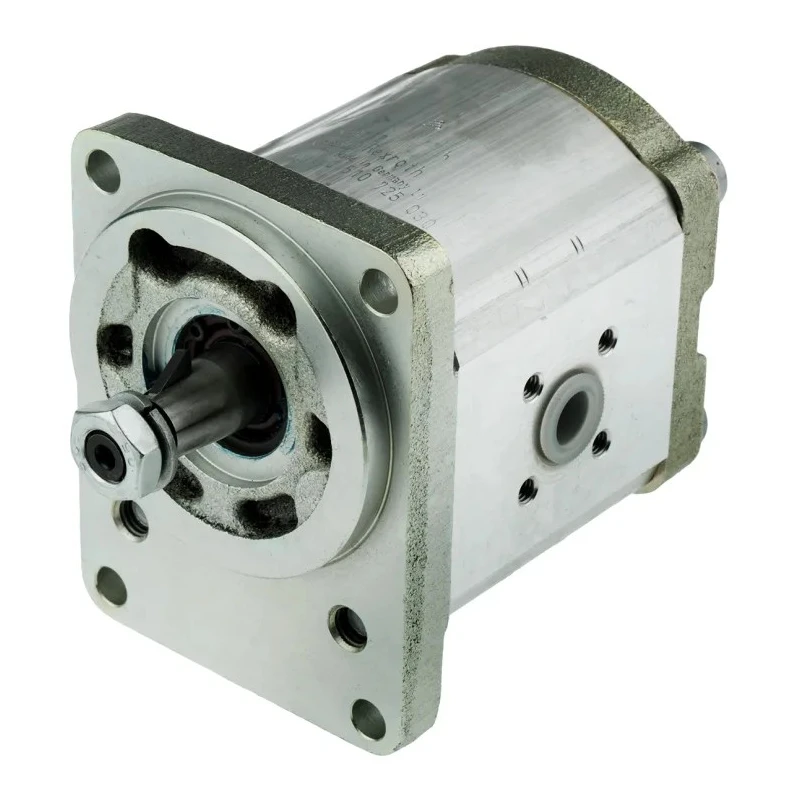

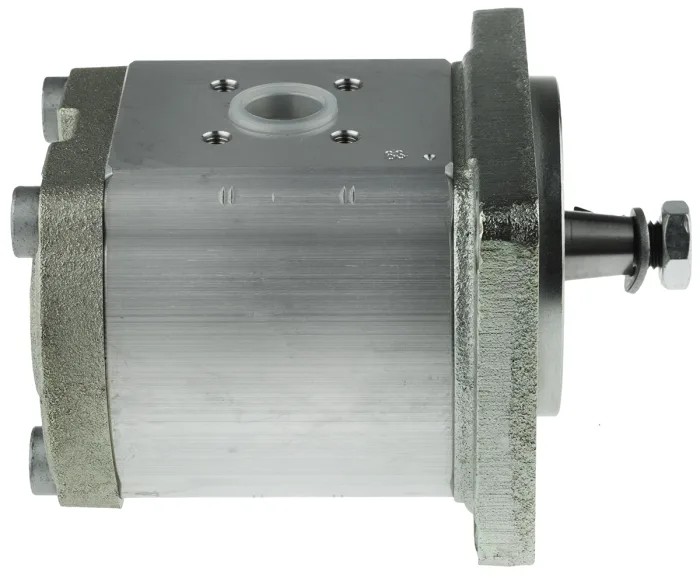

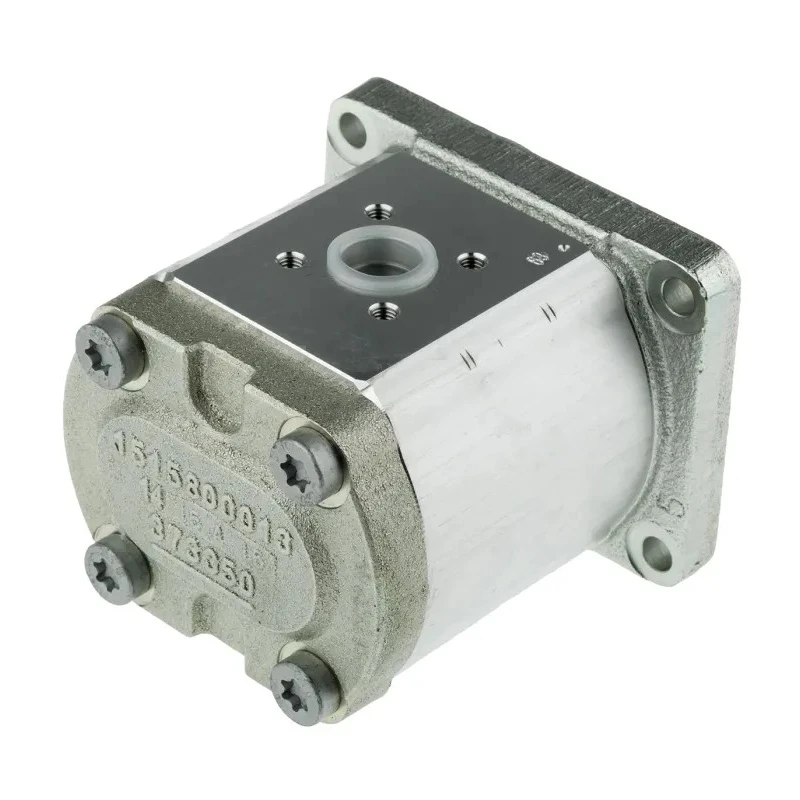

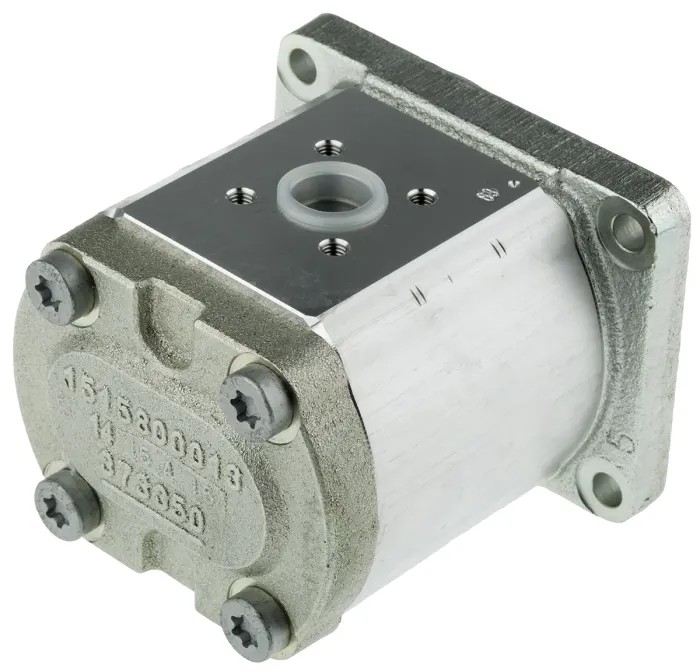

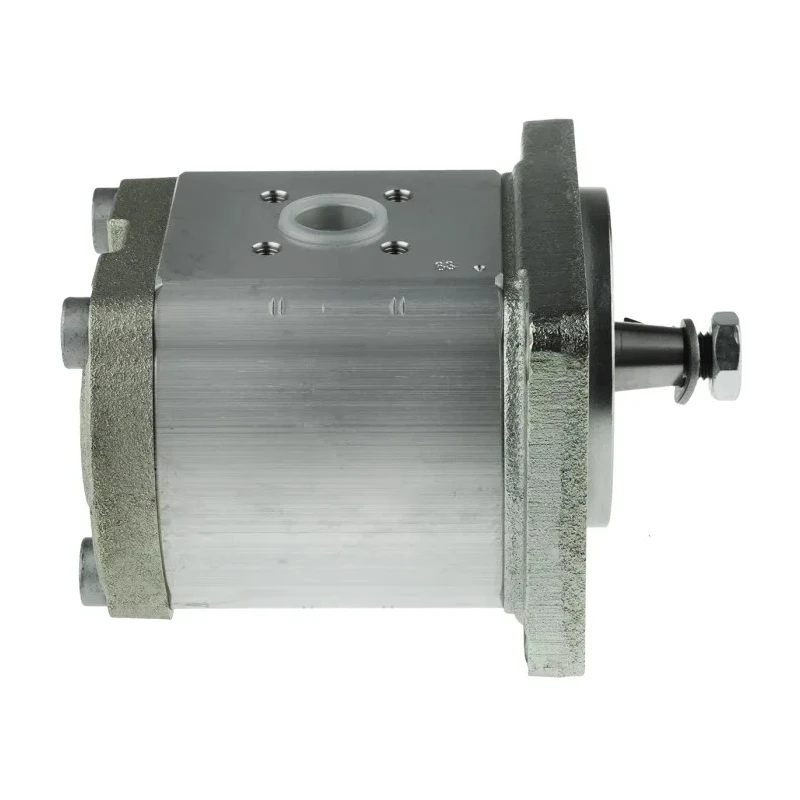

Bosch Rexroth Hydraulic Gear Pump 22.5 cm³, Flange Mount, Aluminium, Clockwise Rotation, 2500rpm, Model 0510725030

Bosch Rexroth 0510725030 is a high-performance hydraulic gear pump designed for industrial and fluid power applications. Featuring a displacement of 22.5 cm³, this pump operates at a continuous pressure of 3625 psi and intermittent pressure up to 210 bar, with a maximum rotational speed of 2500 rpm.

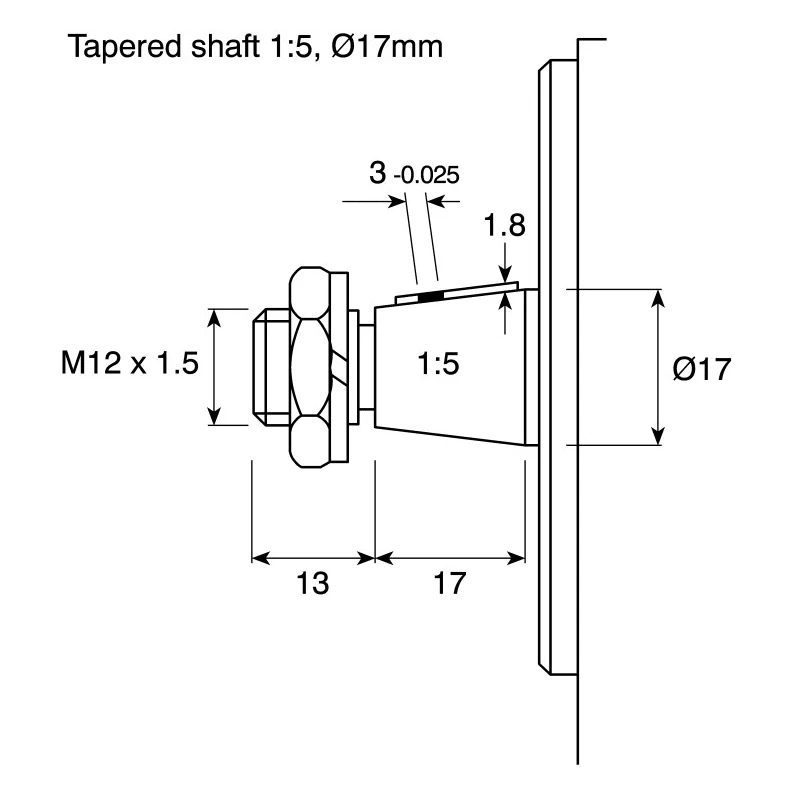

The pump is constructed from high-quality aluminium, ensuring a robust yet lightweight unit. It incorporates self-aspirating external gear technology with a 1:5 tapered shaft, optimized for clockwise rotation, enabling it to handle high load conditions through plain bearings.

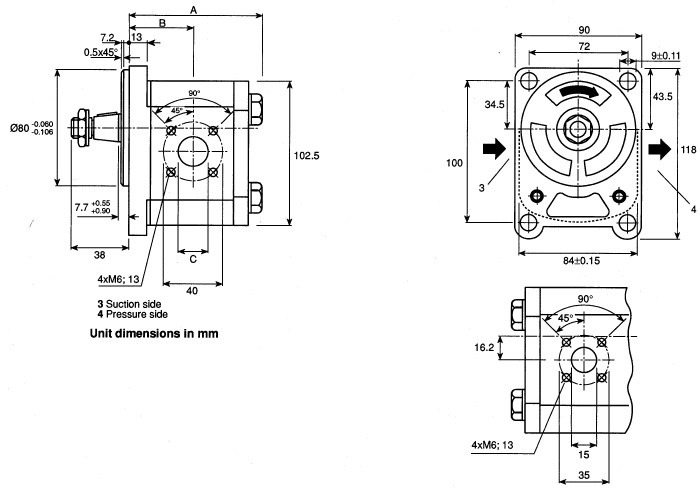

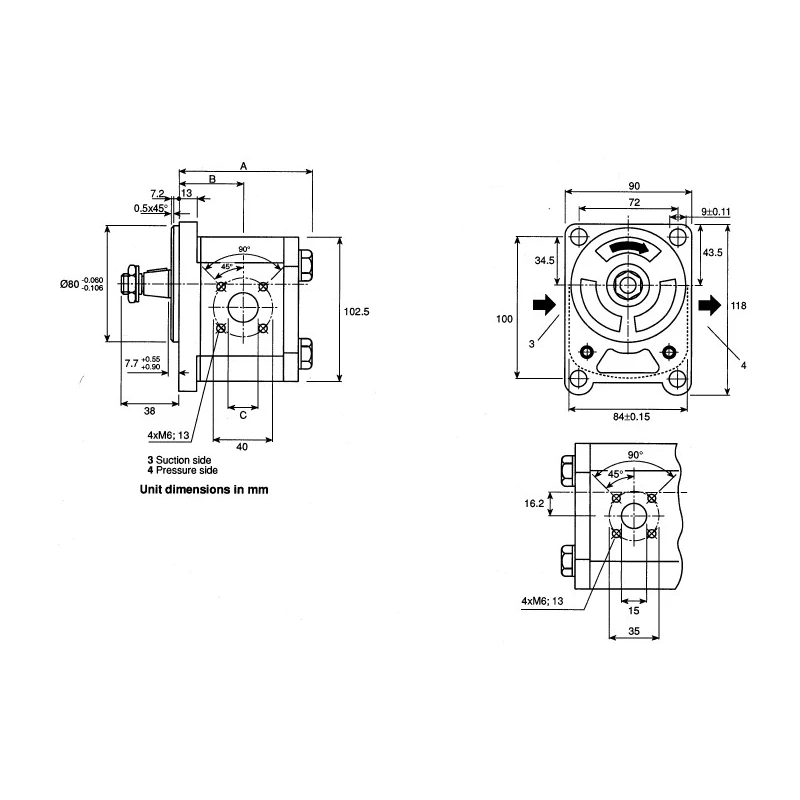

Its flange mount type with split flange inlet and outlet ports allows for straightforward, secure installation in various hydraulic systems. The fluid temperature range from -15°C to +80°C and compatibility with mineral oil make it suitable for diverse industrial environments including manufacturing, construction, and mobile hydraulics.

Additional features include the supply of flanged fittings for pipe connection available separately and adherence to rigorous cleanliness standards to ensure long life and performance.

Self aspirating external gear pump with 1:5 tapered shaft for reliable coupling. Aluminium pump body construction delivering durability and light weight. Continuous operating pressure of 3625 psi and intermittent pressure rating of 210 bar.

Maximum speed rating of 2500 rpm for efficient hydraulic fluid transfer. Split flange type inlet and outlet ports for easy assembly. Clockwise direction of rotation designed for standard hydraulic systems. Plain bearings that support sustained heavy load conditions.

Compatible with recommended mineral oil and fluid viscosities between 10 mm²/s and 300 mm²/s. Operating fluid temperature range of -15 to +80 degrees Celsius. Weight approximately 3.8 kilograms facilitating easy handling and installation.

This Hydraulic Gear Pump is ideal for applications in industrial manufacturing, mobile machines, agricultural equipment, and other hydraulics-driven systems requiring consistent pressure and flow performance.
