Bosch Rexroth Hydraulic Gear Pump, Displacement 8.2 cm³, Aluminium Material, 280 bar Intermittent Pressure 0510425022

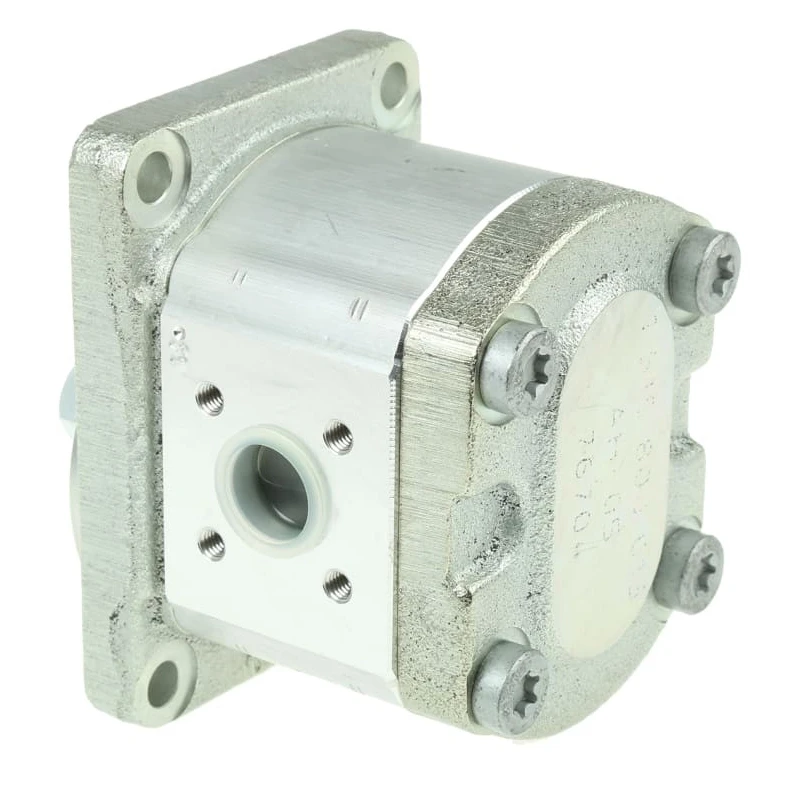

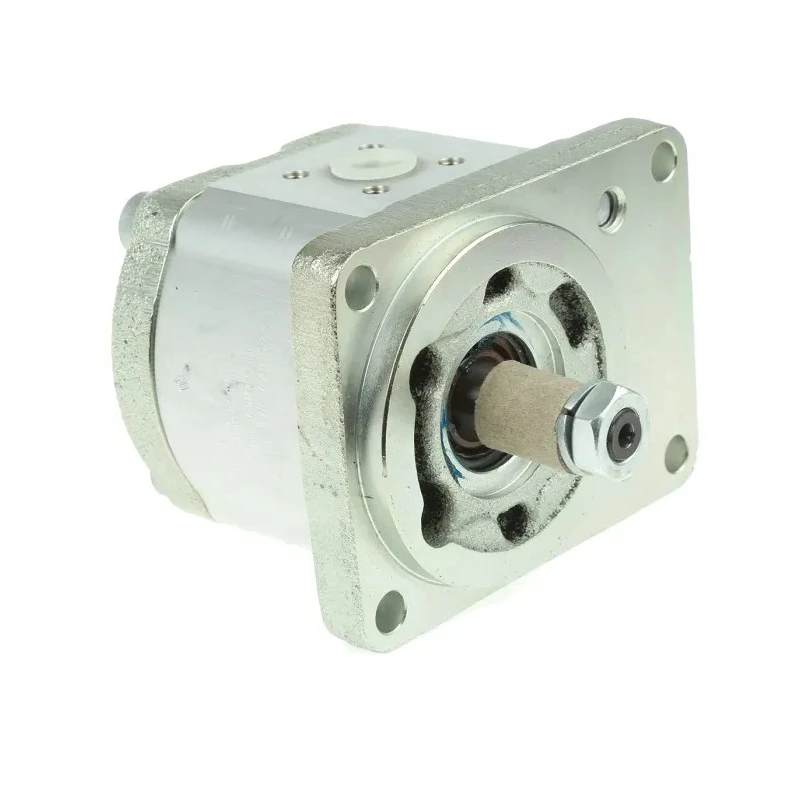

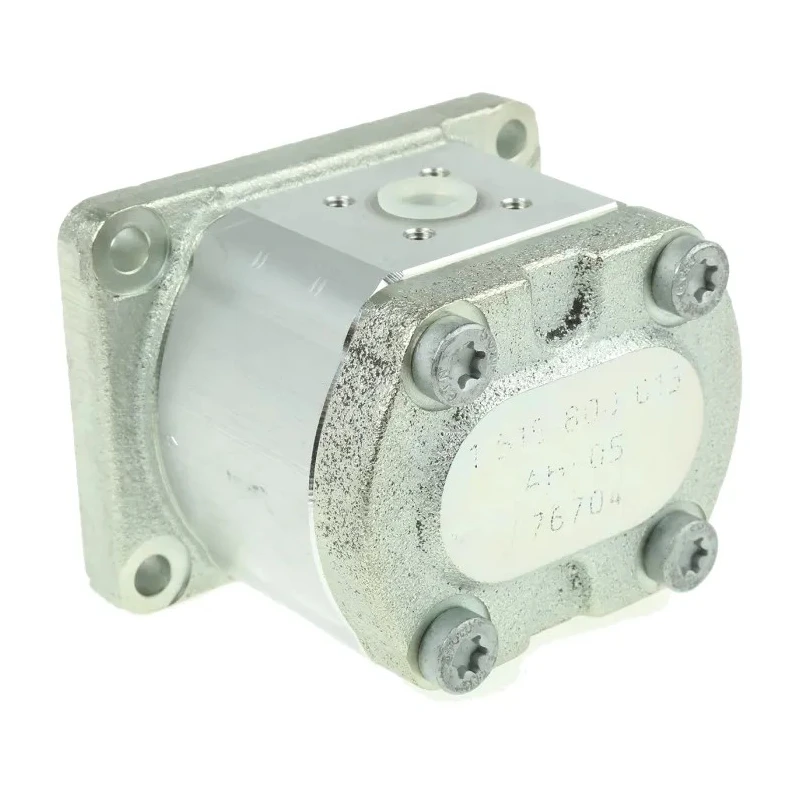

Bosch Rexroth 0510425022 hydraulic gear pump is a high-quality, self-aspirating external gear pump designed for industrial hydraulic power systems. It features an 8.2 cm³ displacement capacity and is made of aluminium, providing durability and corrosion resistance. The pump's flange mounting and split flange inlet and outlet ports enable secure installations in diverse machinery and equipment.

This pump is engineered for clockwise rotation at speeds up to 4000 rpm, with a 16.5 mm diameter shaft and 14.8 mm shaft length to ensure reliable power transmission. It can endure intermittent pressures up to 280 bar, making it suitable for heavy-duty hydraulic operations.

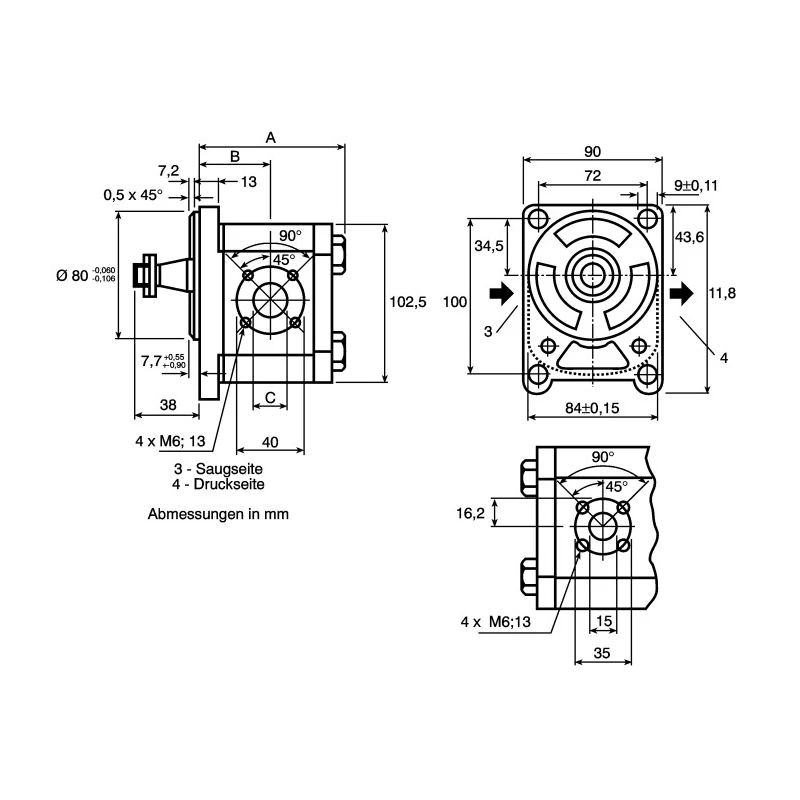

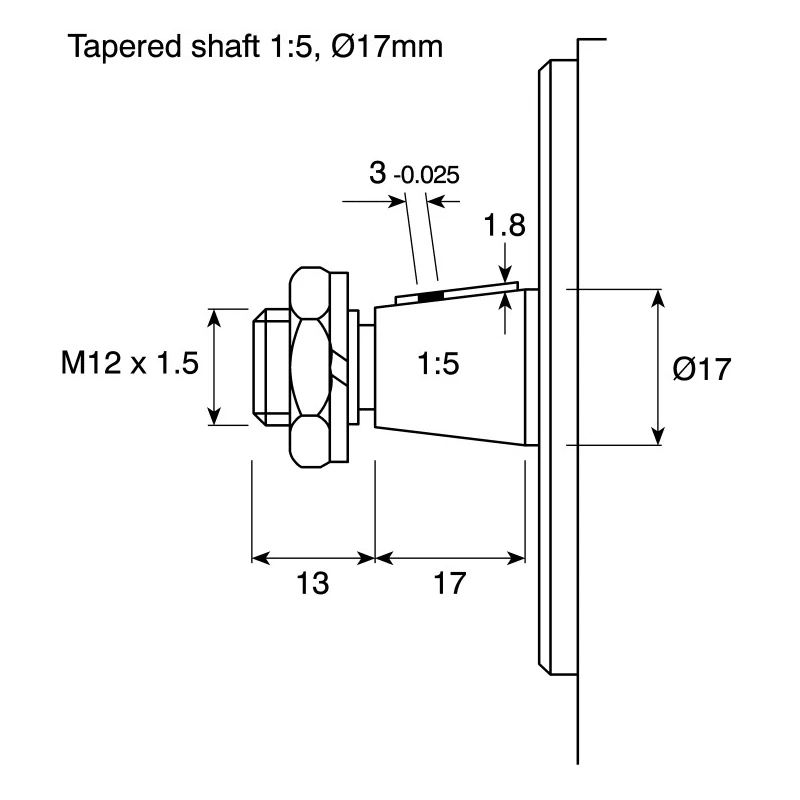

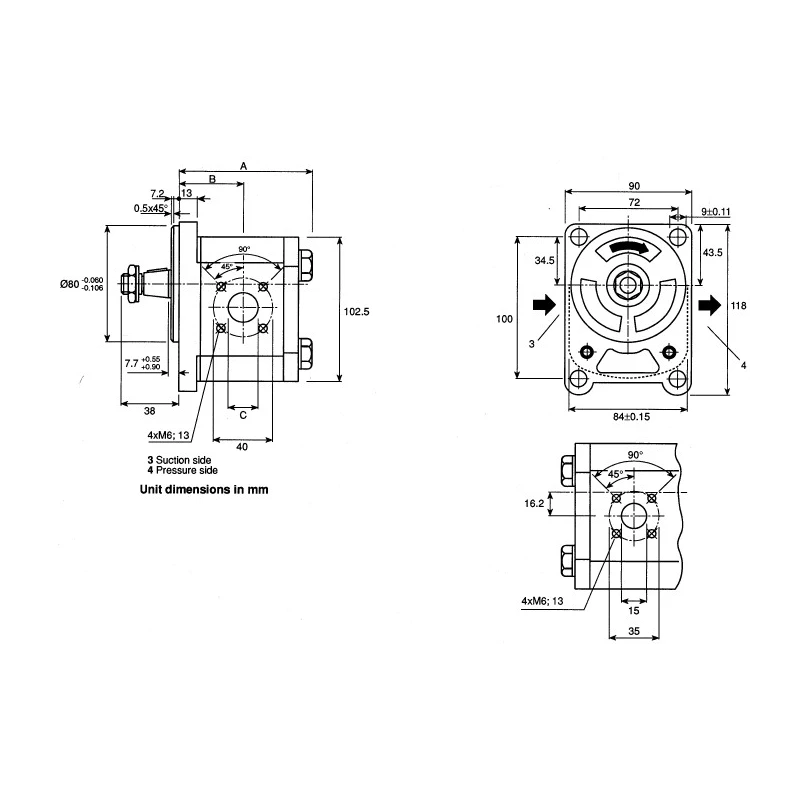

Compact and precise, the pump measures 91.6 mm in length, 90 mm in width, and 118 mm in height, ensuring compatibility with space-constrained industrial setups. Featuring a 1:5 tapered shaft and plain bearings, it supports high load applications and long operational life.

The pump is optimized for mineral oil fluids and can operate within the temperature range of -15°C to +80°C, accommodating typical hydraulic fluid viscosities between 10 mm²/s and 300 mm²/s. For contamination control and pump longevity, filtration to NAS 1638 Class 9 or better is recommended.

Constructed with durable aluminium material for strength and corrosion resistance. Features flange mount with split flange inlet and outlet ports for secure installation. Supports 4000 rpm maximum rotational speed and clockwise direction of rotation.

Intermittent pressure rating up to 280 bar suitable for heavy-duty applications. Compact dimensions with high precision and robust tapered shaft design. Compatible with mineral oil fluids over a broad temperature and viscosity range.

Recommended filtration standards ensure long service life and performance. Ideal for industrial, manufacturing, agricultural, hydraulic power units, and fluid control systems.

This Bosch Rexroth Hydraulic Gear Pump is an essential component for hydraulic systems requiring reliable, efficient fluid power transmission. Its robust design and precise engineering cater to diverse industrial use cases, including construction equipment, manufacturing machinery, and agricultural applications.
