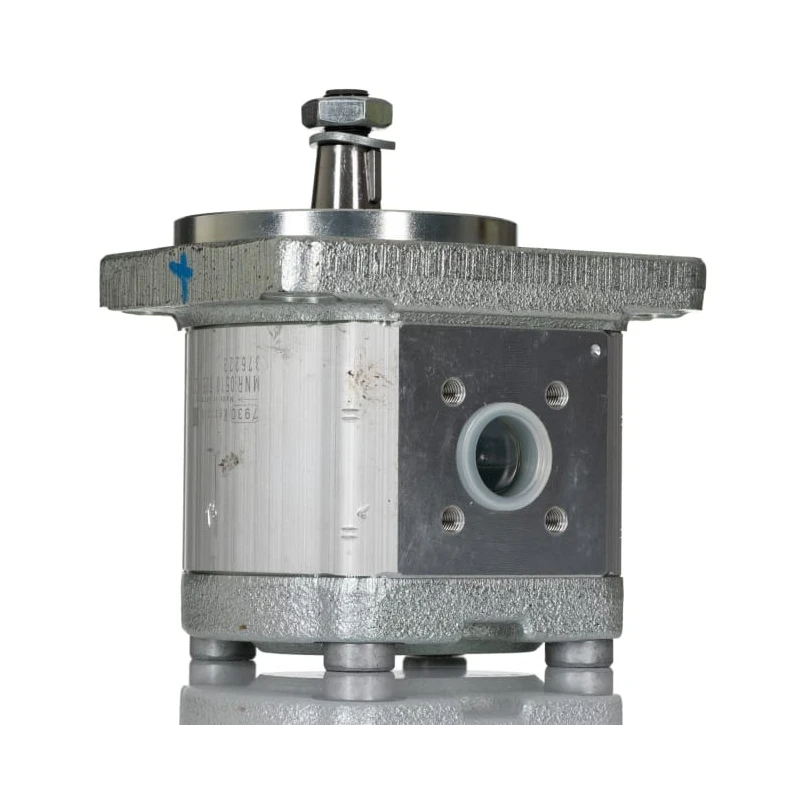

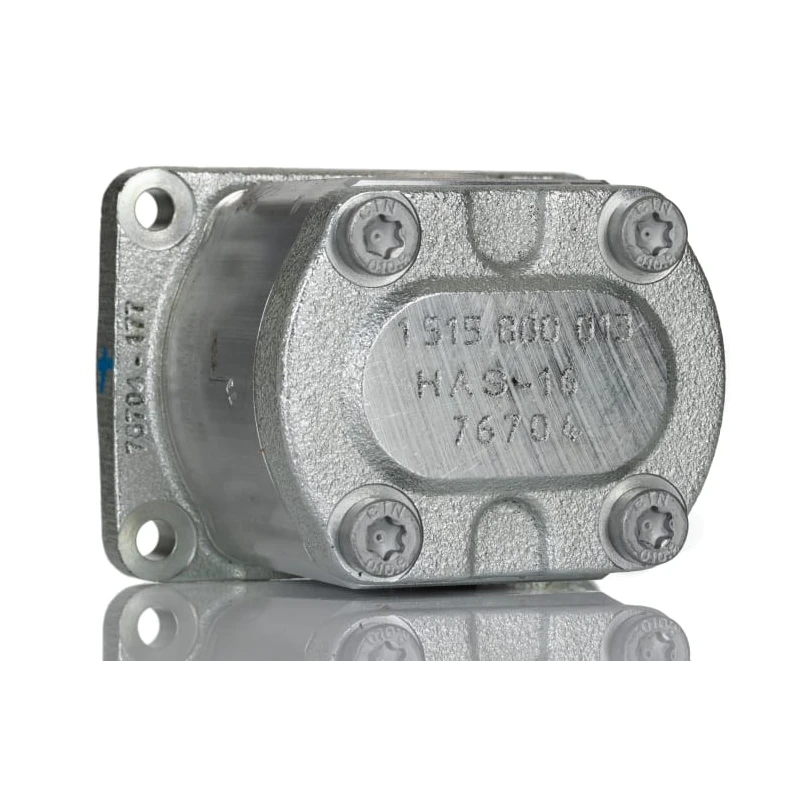

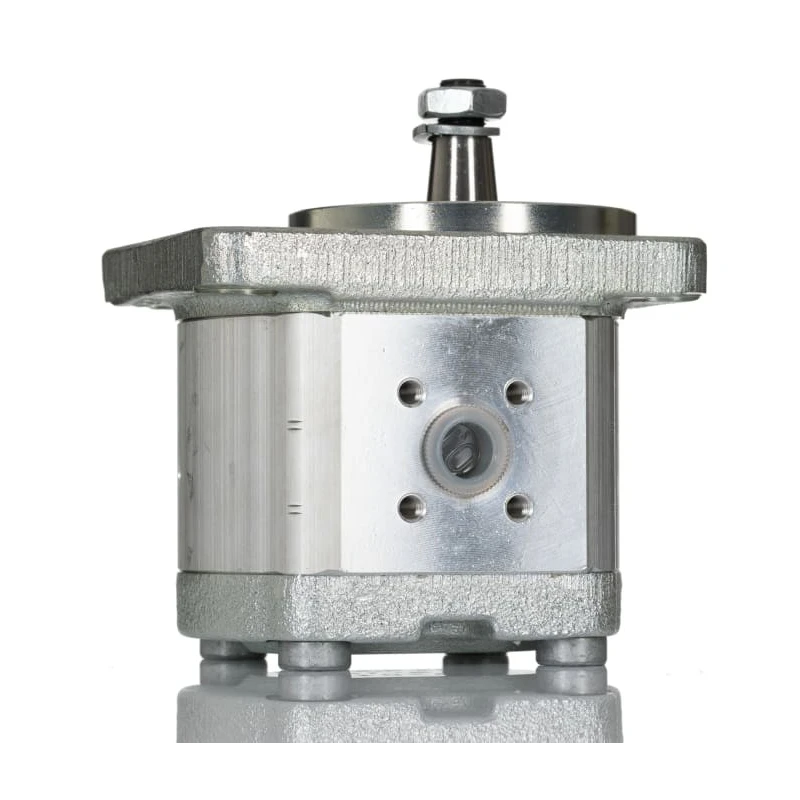

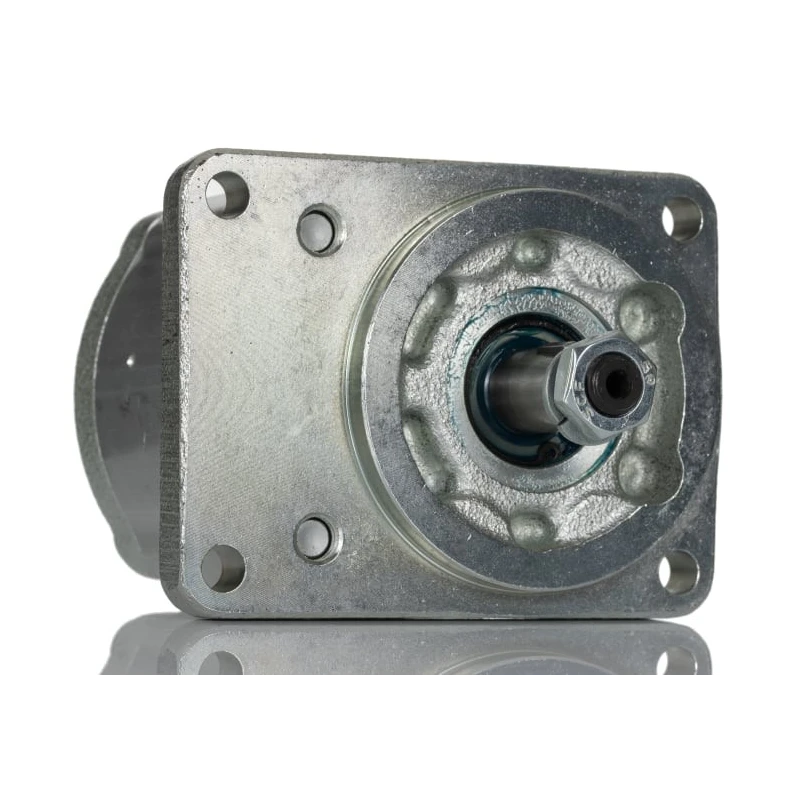

Bosch Rexroth Hydraulic Gear Pump , 11 cm³ Displacement, Aluminium Body, 280 bar Pressure, 4000 rpm Max Speed 0510525022

Bosch Rexroth 0510525022 Hydraulic Gear Pump with an 11 cm³ displacement, aluminium body construction, and a maximum rotational speed of 4000 rpm is designed for high-efficiency hydraulic fluid transfer in industrial and mechanical systems.

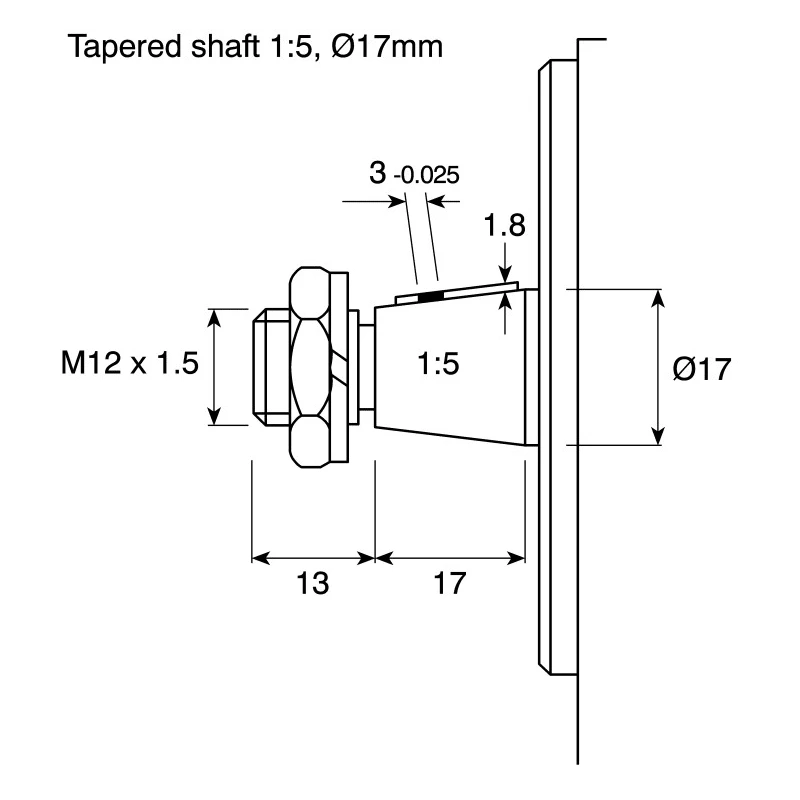

This self-aspirating external gear pump features a 1:5 tapered shaft and is constructed with plain bearings designed to handle high load applications. The flange mount type along with split flange inlet and outlet ports facilitates secure and reliable installation in various hydraulic circuits.

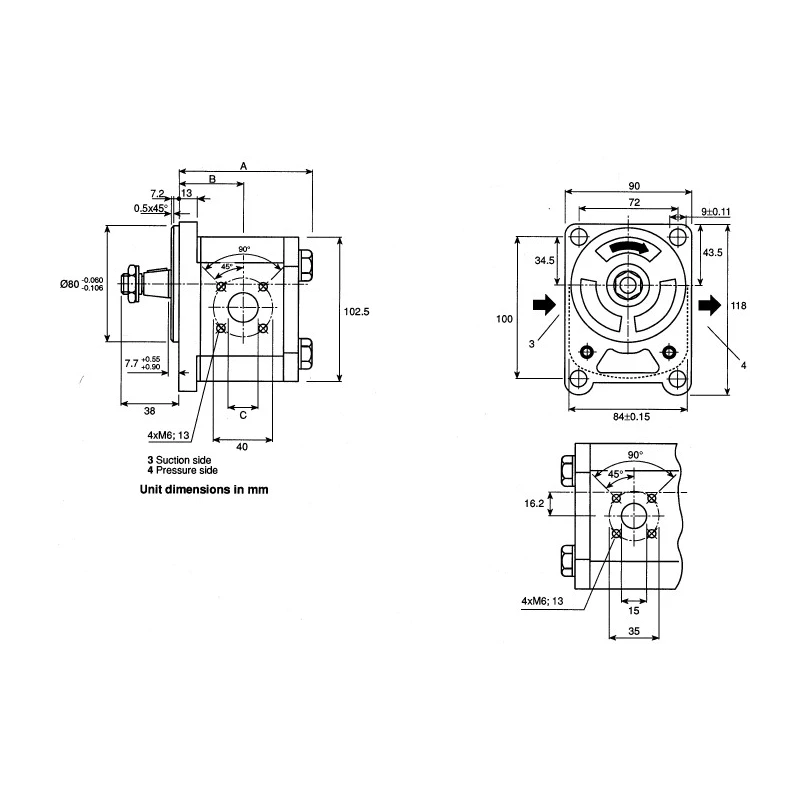

With an intermittent pressure rating of up to 280 bar and a clockwise direction of rotation, this pump is capable of meeting demanding operational requirements. The dimensions - 118mm height, 91.6mm length, and 90mm width - offer a compact form factor suitable for space-constrained environments.

Its shaft diameter of 16.5mm and shaft length of 14.8mm ensure precise mechanical coupling. Made from aluminium, the pump body offers high strength with corrosion resistance, supporting durability in fluid power and pneumatic applications.

The recommended fluid for operation is mineral oil with viscosities ranging between 10mm²/s to 300mm²/s, and the fluid temperature range supports -15°C to +80°C, making it versatile across industrial temperature conditions.

To ensure long life and optimal performance, fluid filtration to NAS 1638 Class 9 (using filters with a retention rate of B10≥100) is recommended. The maximum permissible contamination level is NAS Class 10.

This pump is manufactured in Germany, reflecting stringent quality standards and reliability for hydraulic systems used in industrial, manufacturing, construction, and hydraulic power equipment.

Self-aspirating external gear pump with tapered shaft. High load capacity plain bearings for demanding applications. Flanged fittings available separately for pipe connection ease. Compact dimensions for flexible integration.

Robust aluminium construction for durability and corrosion resistance. Suitable for mineral oil fluids and viscosity ranges common in hydraulics. Recommended fluid filtration practices enhance product life. Ideal for industrial hydraulic systems in manufacturing and mechanical setups.

Direction of rotation is clockwise for standard usage. High intermittent pressure rating of 280 bar supports heavy-duty tasks. Explore more Hydraulic Gear Pumps and related hydraulic equipment in the Industrial Tools & Equipment category on EnvMart for reliable fluid power solutions.
