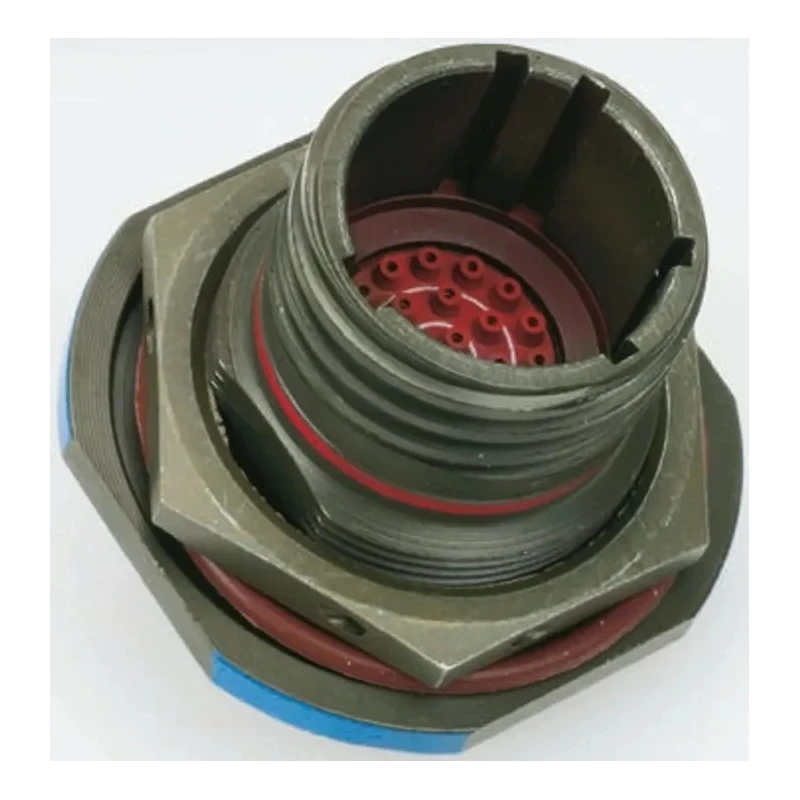

Amphenol Limited MIL Spec Circular Connector Copper Alloy Straight 6 Way Panel Mount 7.5A 600-850V AC TV07RW-11-98PN(W52)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600, 850V ac |
| Brand | Amphenol Limited |
| Colour | Green |
| Orientation | Straight |
| Current | 7.5A |
| Model | TV07RW-11-98PN(W52) |
| Mount Type | Panel Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | TV |
| Termination Type | Crimp |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |

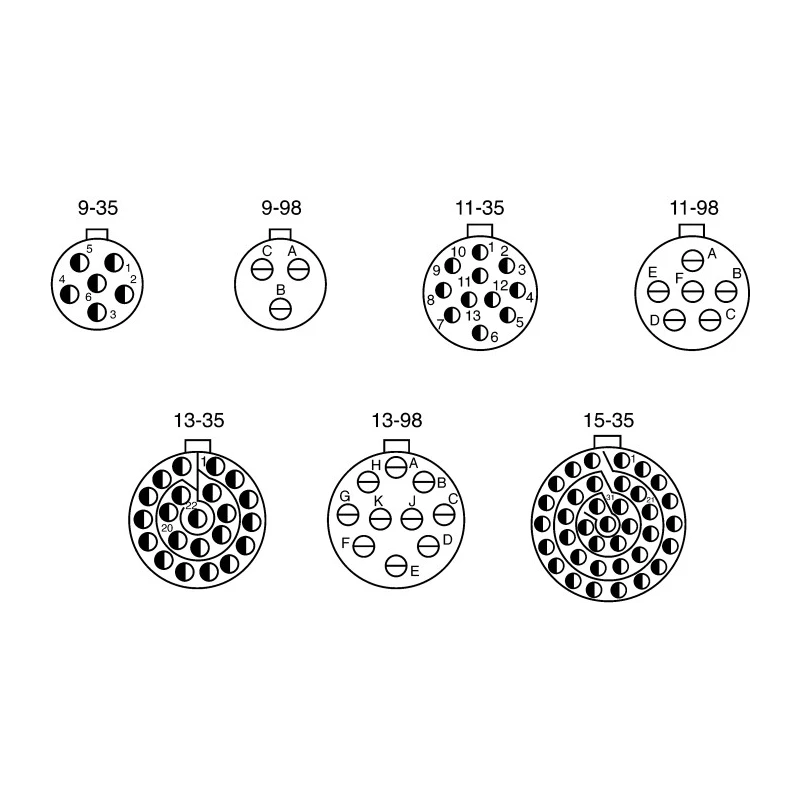

| Number of Contacts | 6 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 11 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- This MIL Spec circular connector features a straight orientation and panel mount design.
- Constructed with aluminium housing, copper alloy contacts plated with gold, and zinc cobalt shell plating for high durability.
- Rated for 7.5 amps current and voltage up to 850V AC, supporting robust electrical connections.
- Operates reliably within temperature range from -65°C to 175°C for demanding environments.

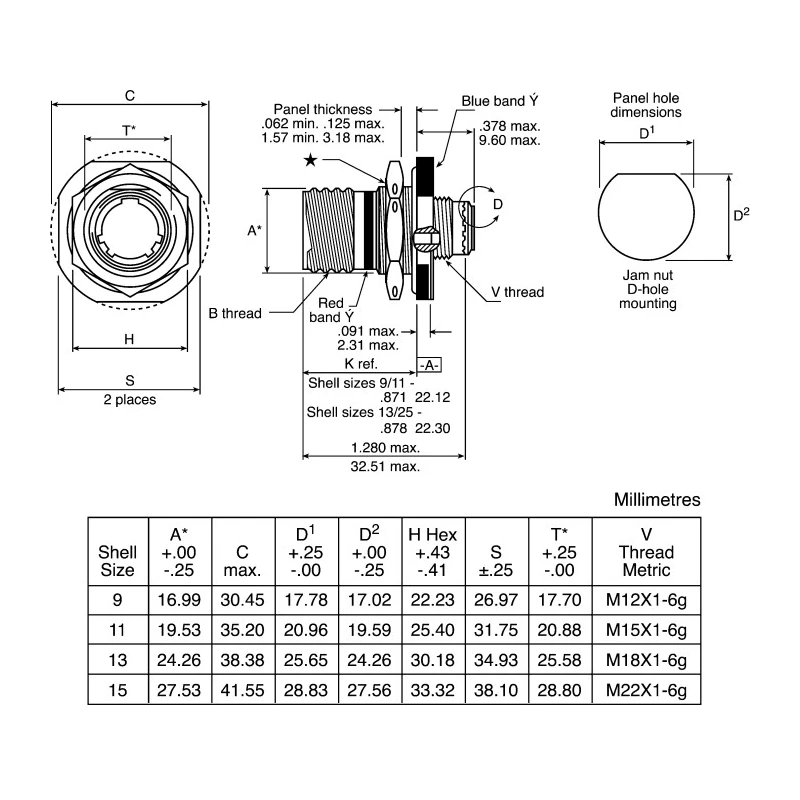

- Includes a jam nut receptacle and screw coupling mating type as per MIL-DTL-38999 standards.
- Connector size standard, series TV, with strain relief to enhance cable protection.
- The green colour coding assists with easy identification in installations.
Product Description
Amphenol Limited TV07RW-11-98PN(W52) MIL Spec Circular Connector is a high-quality panel mount 6 way connector designed for industrial, military, and harsh environment applications. With a copper alloy contact material plated in gold and aluminum housing plated in zinc cobalt, it ensures robust electrical conductivity and corrosion resistance.
This connector supports a current rating of 7.5A and withstands voltages at 600 to 850 volts AC, making it suitable for power and signal transmission in demanding conditions. The operating temperature range from -65°C minimum to 175°C maximum enables use in extreme temperature environments.
The connector uses a straight orientation and screw coupling for reliable mechanical mating. It complies with the MIL-DTL-38999 military standard, offering compatibility and durability required by defense and aerospace sectors. The crimp termination type provides secure and serviceable cable connections.
The shell size is 11 with a green finish that meets EC directives for cadmium-free and environmentally robust products. Strain relief is integrated to protect wiring from mechanical stress.
This MIL Spec circular connector is suitable for industrial electrical systems, aerospace equipment, defense communications, and other applications requiring rugged, high-quality connectors with military-grade specifications.
This connector is a jam nut receptacle ensuring stability when mounted. The gold-plated copper alloy contacts optimize electrical performance while resisting corrosion. The aluminium shell with zinc cobalt plating provides a durable, cadmium-free finish.
Compliance with MIL-DTL-38999, BS9520G0003, and JN1034 ensures industry-standard quality and reliability. Ideal for industrial, military, and aerospace applications needing robust panel mount connectors. Explore more MIL Spec Circular Connectors and related electronic components in EnvMart's comprehensive catalogue for reliable industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7.5A and can withstand voltages ranging from 600 to 850V AC.
It features an aluminium housing, copper alloy contacts plated with gold, and a zinc cobalt shell plating.
The connector operates reliably within a temperature range of -65°C to 175°C.
This model has a total of 6 contacts.
It is designed for panel mount installation.
It features a straight orientation and uses a screw coupling mating type.
This connector complies with the MIL-DTL-38999 military standard.
The shell size for this model is 11.
The contact gender is male, while the connector gender is female.
It employs a crimp termination type for secure cable connections.
The connector is green, which assists with easy identification in installations.
The country of origin for this connector is India.
