TDK 22 nF Multilayer Ceramic Capacitor, 250V DC, ±10% Tolerance, Surface Mount, 0805 Package CGA4J3X7R2E223K125AA

TDK CGA4J3X7R2E223K125AA is a high-quality multilayer ceramic capacitor with a capacitance of 22 nF, rated for 250V DC voltage operating in surface mount technology (SMT) format with the compact 0805 package size. The X7R dielectric ensures robust thermal stability and capacitance retention across a wide temperature range, making it suitable for demanding industrial, automotive, and electronic applications.

This capacitor complies with the AEC-Q200 automotive standard, affirming its suitability for use in hybrid and electric vehicle (HEV, EV) power inverters, DC-DC converters, and other high-reliability electronics. Its dimensions are crafted to optimize PCB layout efficiency without compromising performance.

The surface mount terminations facilitate effective soldering in automated manufacturing lines, and the tape & reel packaging supports high-volume production. Operating temperature ranges from -55°C to 125°C enable durability in extreme environments.

Applications include decoupling noise, smoothing voltage fluctuations, and snubber circuits protecting sensitive electronics from voltage spikes. The capacitor's low residual inductance improves frequency response and reduces losses in high-frequency circuits.

The capacitor features X7R dielectric material ensuring stable performance across a broad temperature range. Voltage rating supports up to 250V DC for various industrial and automotive electronic circuits. Compliance with automotive standard AEC-Q200 guarantees reliability in automotive and high-stress environments.

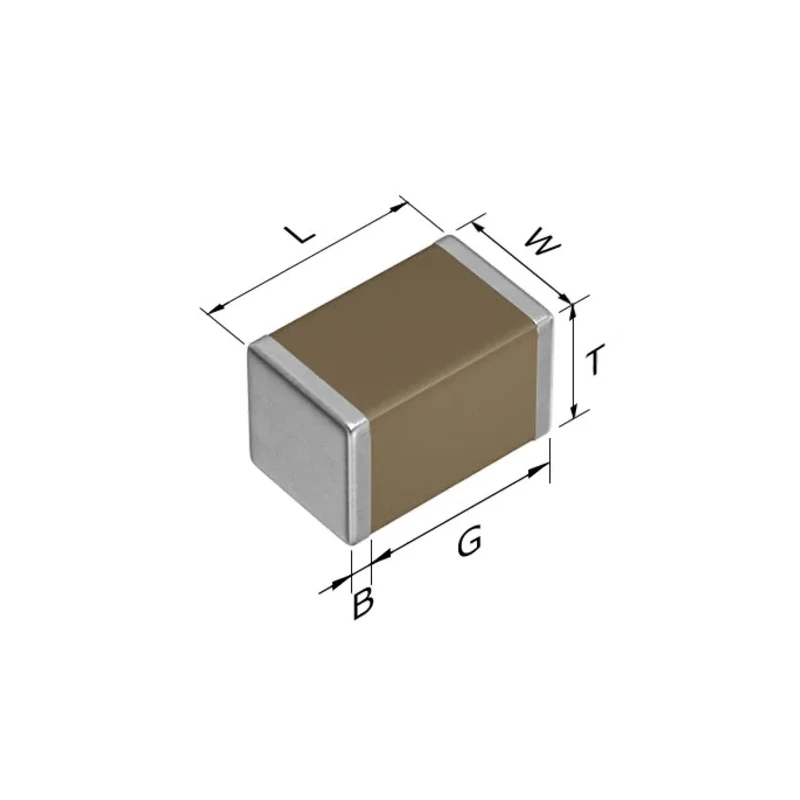

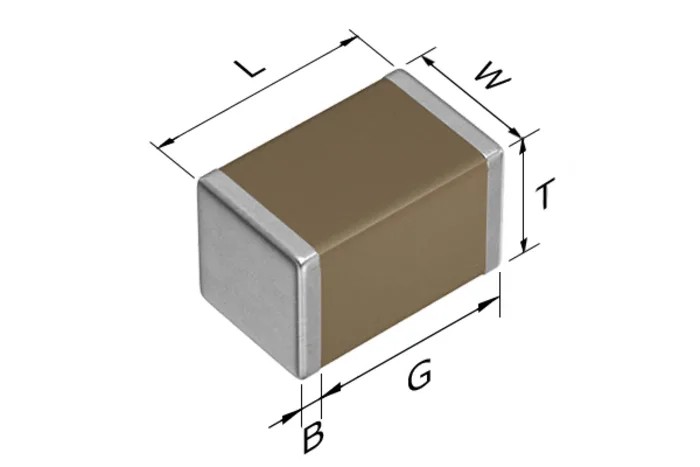

Compact dimensions of 2mm length, 1.25mm width, and 1.25mm height optimize PCB space utilization. Suitable for decoupling, smoothing, and snubber circuits in power electronics and EV/HEV inverters. Packaging is tape and reel format enabling efficient automated assembly processes.

Termination type is surface mount providing ease of installation in SMT processes. Operating temperature range from -55°C to 125°C accommodates harsh environmental conditions. Japanese origin manufacturing assures high-quality standards and traceability.

Class II suppression classification supports noise reduction in electronic systems.
