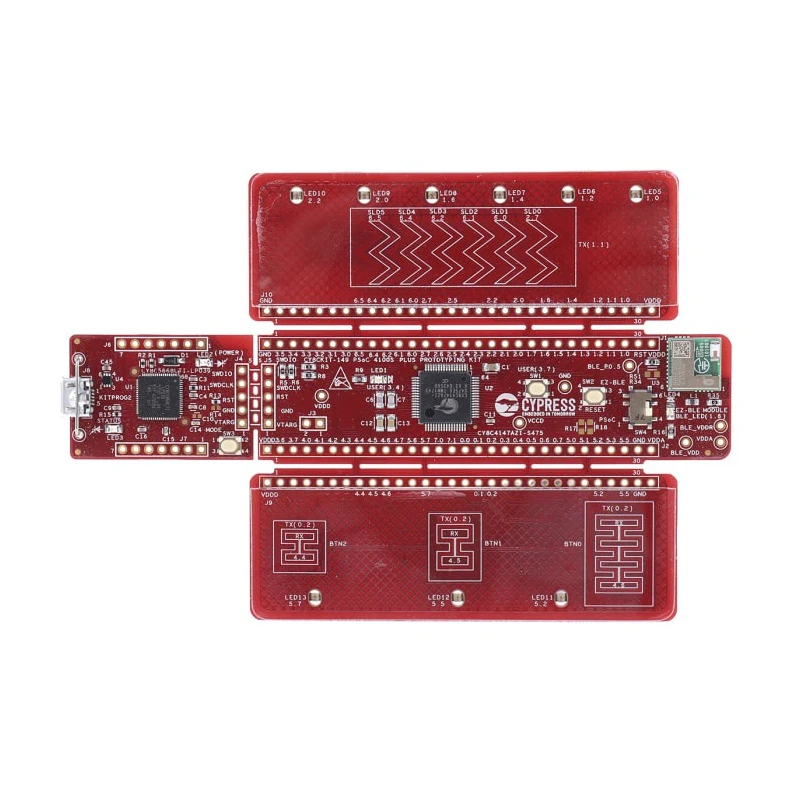

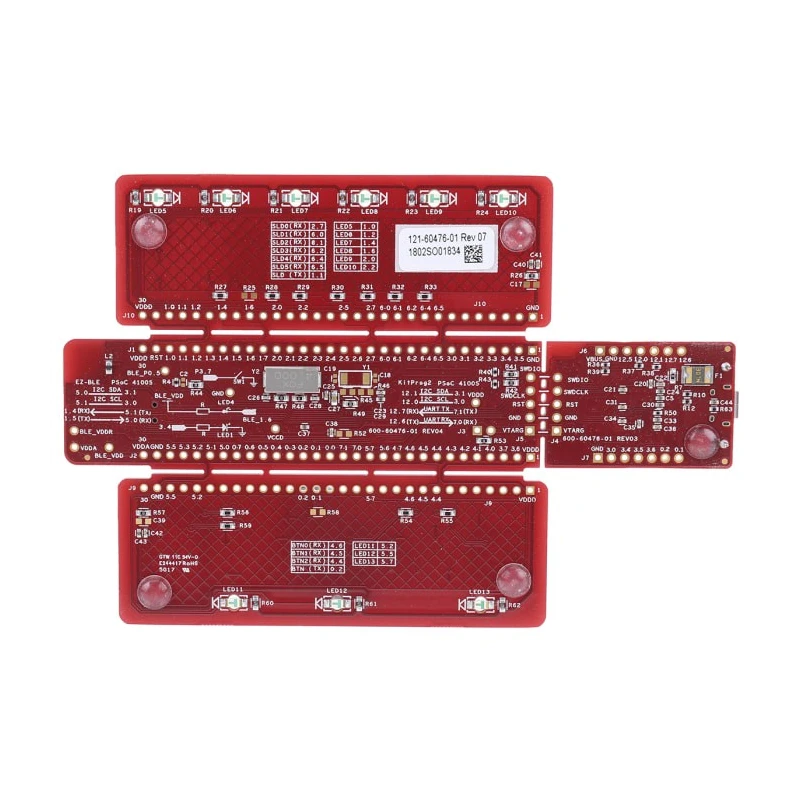

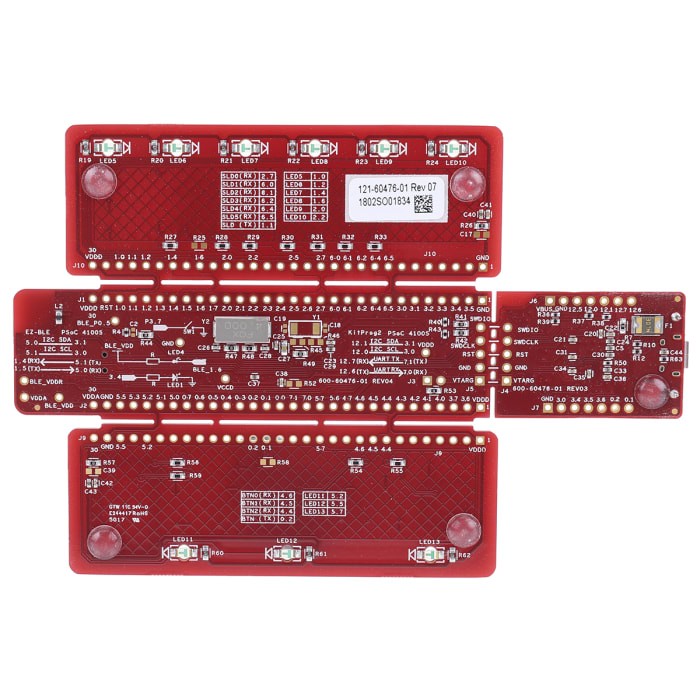

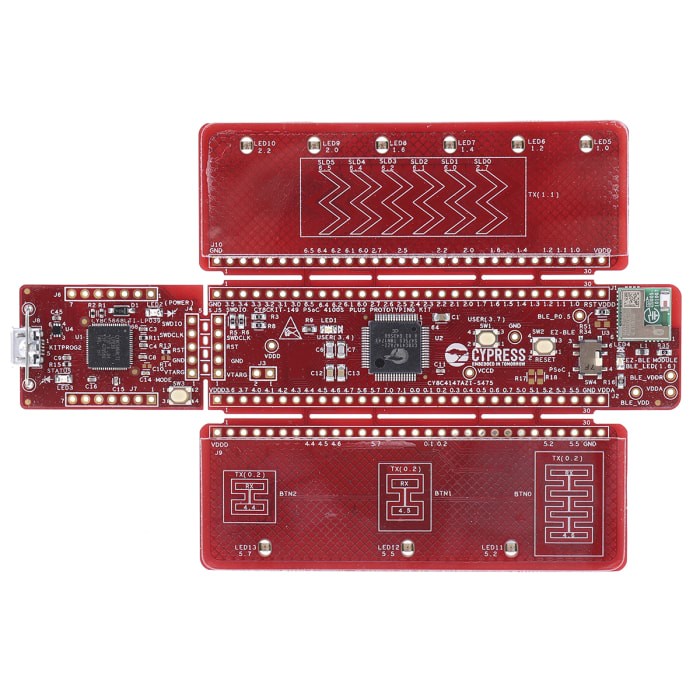

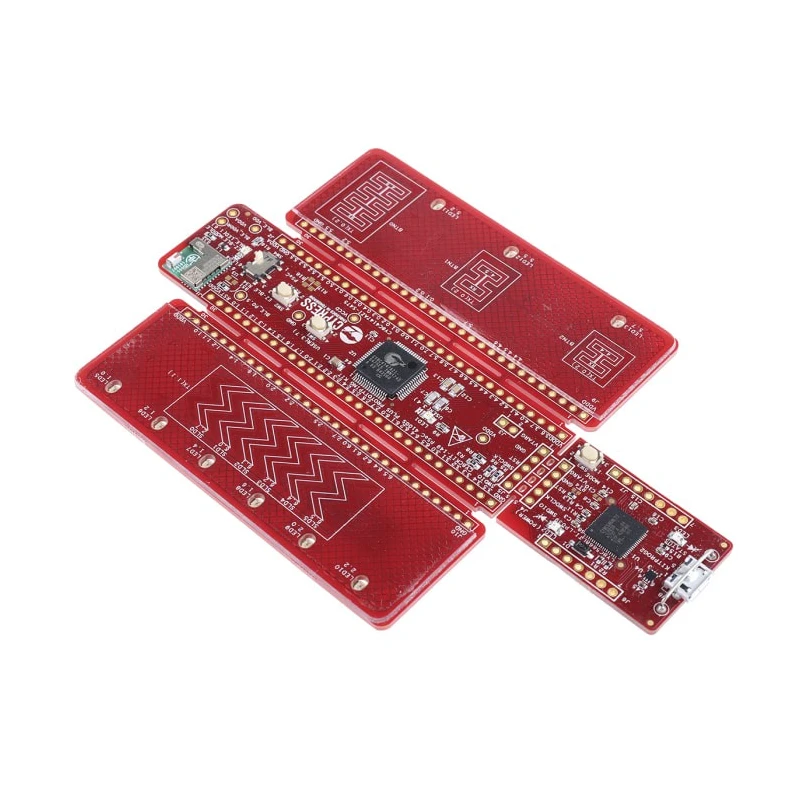

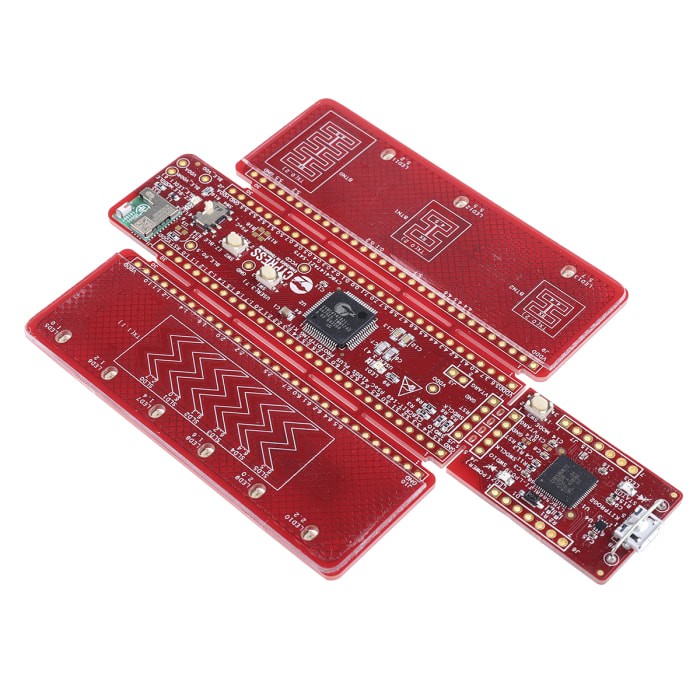

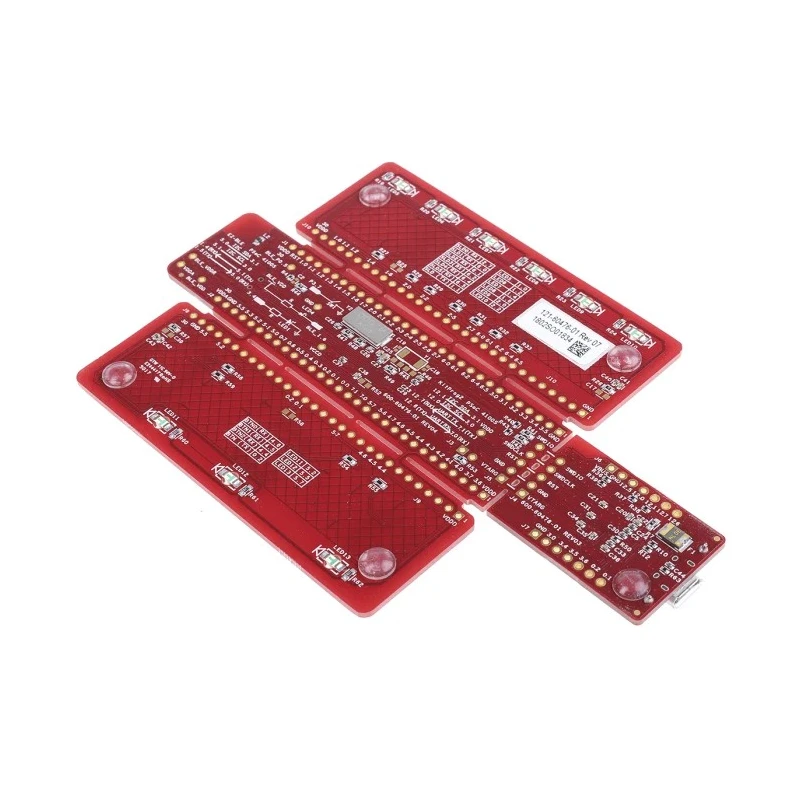

Infineon Microcontroller Development Tool Prototyping Kit PSoC Development Board CY8CKIT-149

Infineon CY8CKIT-149 is a high-performance microcontroller development tool prototyping kit designed to evaluate and develop systems based on the Arm Cortex-M0 core. This PSoC development board features Cypress Semiconductor's advanced capacitive sensing technology, allowing efficient operation even in noisy environments and in the presence of liquids. The kit is built with a snap-away form-factor, enabling users to detach the programmer and debugger for independent use, enhancing versatility.

This development kit operates reliably over a voltage range of 1.8V to 5V and includes a pushbutton to provide simple user input capabilities. It houses an Arm Cortex-M0 core equipped with up to 128kb flash memory and 16kb SRAM, along with 9 programmable analogue blocks and 13 programmable digital blocks. The board offers a total of 54 general purpose input/output pins, including 24 smart I/Os, to support complex interfacing needs.

For timing and clocking functions, the kit includes an external ECO crystal running at 4MHz and a WCO crystal at 32.768kHz. Connectivity is enhanced via an integrated EZ-BLE module equipped with a feedback LED, enabling Bluetooth low energy applications. User interaction devices feature a six-segment slider and three capacitive sensing buttons of different sizes, each with feedback LEDs for visual status indication. Additionally, two LEDs provide status feedback for the 4100S device and the EZ-BLE module respectively.

This prototyping kit is well-suited for use in electronics laboratories and embedded system environments where robust and flexible development tools are essential. It supports rapid prototyping and testing for embedded applications, ensuring reliable performance in various operating contexts.

Supports 1.8V to 5V operation for flexible power options. Includes a pushbutton for simple user input integration. Up to 128kb flash and 16kb SRAM on Arm Cortex-M0 core. Contains 9 programmable analogue and 13 digital blocks.

Provides 54 general purpose I/Os, including 24 smart I/Os. Equipped with 4MHz ECO crystal and 32.768kHz WCO crystal. Integrated EZ-BLE module with feedback LED for wireless connectivity. Features a six-segment slider and three CapSense buttons with feedback LEDs.

Two LEDs give feedback for the 4100S device and EZ-BLE module.

This product complies with RoHS standards and certifications including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, making it a reliable choice for professional development and laboratory use. Discover more Microcontroller Development Tools and related products at EnvMart.
