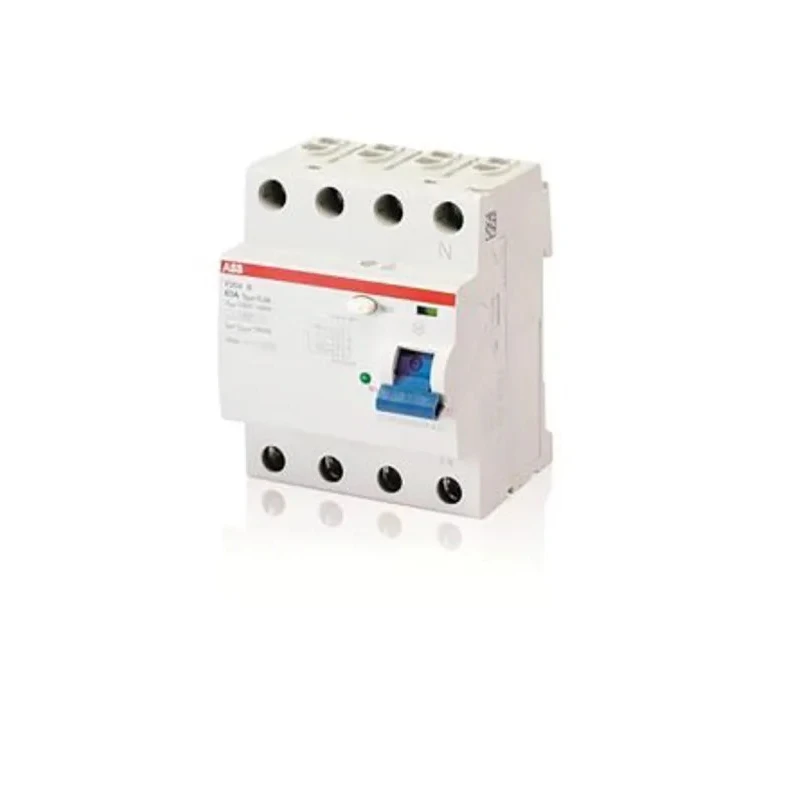

ABB Residual Current Circuit Breaker, F200 Series, 63A, 4-Pole, 500 mA Trip Sensitivity, Type 2CSF204592R4630 F204 B-63/0,5
Specifications
| Country of Origin | Italy |
|---|---|
| Range | F200 |
| Brand | ABB |
| Height | 85mm |
| Model | 2CSF204592R4630 F204 B-63/0,5 |
| Depth | 69mm |
| Width | 72mm |
| Mount Type | DIN Rail |
| Current Rating | 63A |
| Series | F200 |
| Terminal type | Screw |
| Breaking Capacity | 1kA |
| Number of Poles | 4 |
| Standards/Approvals | RoHS, CE, IEC EN 61008 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 500mA |
| Earth Leakage Protection Type | F |
Key Features
- Type B tripping characteristic ensures reliable residual current detection.
- Breaks current up to 1 kA with a rated voltage of 400V AC.
- Compact DIN rail mount design with dimensions 85mm (H) x 72mm (W) x 69mm (D).
- Equipped with toggle switch reset actuator and screw terminal type for secure connections.
- Certified under RoHS, CE, IEC EN 61008 standards with VDE and IMQ approvals.
- Features green LED operation indicator and contact position indication for easy monitoring.
- Type B devices comply with EN 62423 for residual current detection.
- Designed for harsh conditions, operable up to 60 °C ambient temperature.
Product Description
ABB 2CSF204592R4630 F204 B-63/0,5 is a Residual Current Circuit Breaker (RCCB) from the renowned F200 Series, designed for industrial and commercial electrical protection applications. It offers a 63A current rating with 4 poles and a trip sensitivity of 500 mA, ensuring precise fault detection and enhanced safety.
This device utilizes Type B tripping characteristics, compliant with EN 62423 standards, suitable for detecting AC, pulsating DC, and smooth DC residual currents, providing dependable earth leakage protection.
The RCCB features a 1 kA breaking capacity at a rated voltage of 400V AC, making it capable of handling significant fault currents. It mounts conveniently on DIN rails, featuring compact dimensions of 85mm height, 72mm width, and 69mm depth to optimize panel space.
Designed with a toggle switch reset actuator and screw terminal connection, it supports easy installation and operational reliability. Green LED indicators provide clear operational status and contact position, aiding maintenance and monitoring.
Certified for quality and durability, this product meets RoHS, CE, and IEC EN 61008 standards, with additional VDE and IMQ marks certifying its robustness under harsh conditions up to 60 °C ambient temperature.
Type B residual current detection compliant with EN 62423. Easy connection compatibility with busbars via System pro M compact clamps. Only two modules wide for enhanced space efficiency in switchboards. Robust electromagnetic tripping mechanism ensuring timely fault response.
Green LED for operational monitoring and contact position indication. Certified by VDE and IMQ for reliability in tough environmental conditions. Suitable for residential, commercial, and industrial safety applications.
ABB RCCBs from the F200 series are essential components for electrical networks requiring high sensitivity and reliable earth leakage protection. This model is ideal for stringent safety compliance in industrial, commercial, and residential installations. Explore a wide range of electrical protection devices in the EnvMart catalog to ensure optimal safety and performance for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 63A, making it suitable for various electrical protection applications.
The dimensions of this unit are 85mm in height, 72mm in width, and 69mm in depth, allowing for compact installation on DIN rails.
It has a breaking capacity of 1 kA at a rated voltage of 400V AC, which allows it to handle significant fault currents effectively.
This RCCB features Type B tripping characteristics, which are designed for detecting AC, pulsating DC, and smooth DC residual currents.
The trip sensitivity of this model is 500 mA, providing reliable earth leakage protection.
It is designed for DIN rail mounting, which simplifies installation and optimizes panel space.
This unit is equipped with a toggle switch reset actuator, facilitating easy manual reset after a trip.
It is certified under RoHS, CE, and IEC EN 61008 standards, and has additional approvals from VDE and IMQ.
This model is designed to operate in ambient temperatures up to 60 °C, making it suitable for harsh conditions.
It features screw terminal connections, ensuring secure and reliable electrical connections.
This RCCB is intended for use in residential, commercial, and industrial safety applications, providing essential earth leakage protection.
Yes, it supports easy connection compatibility with busbars via System pro M compact clamps, enhancing installation flexibility.
