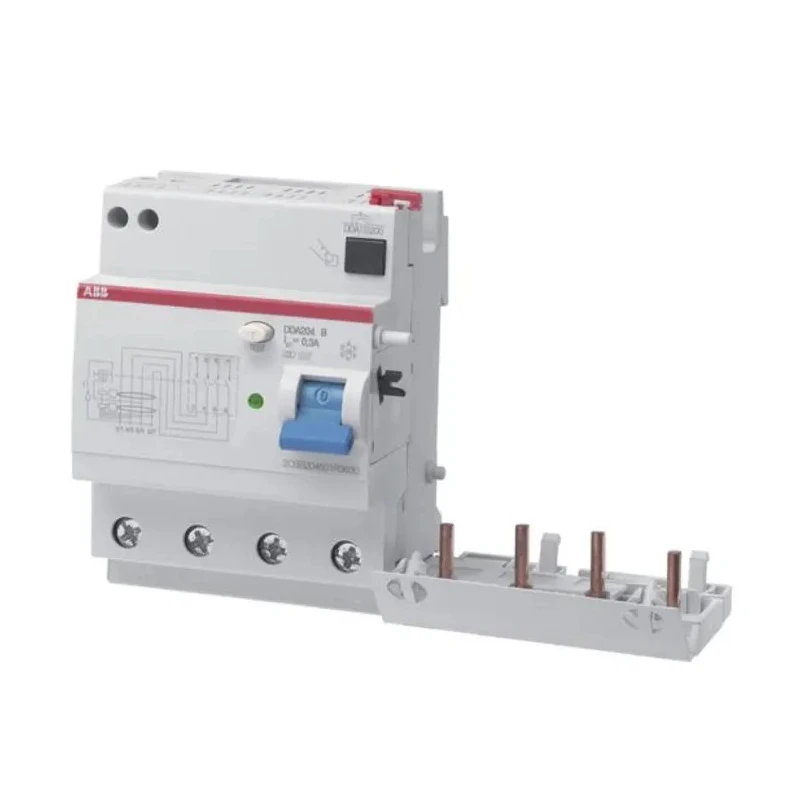

ABB Residual Current Device Series, 40A, 4-Pole, 30 mA Trip Sensitivity, Type B, 1 kA Breaking Capacity, 400V AC DDA200
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | ABB |
| Height | 85mm |
| Model | DDA200 |
| Depth | 93mm |
| Width | 69mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | DDA200 |
| Terminal type | Screw |
| Breaking Capacity | 1kA |
| Number of Poles | 4 |
| Standards/Approvals | RoHS, IEC/EN 61008 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | AC |
Key Features
- Designed for protection against earth leakage currents with quick tripping.
- Supports assembly with MCBs S200 series for integrated protection.
- Features a breaking capacity of 1 kA for reliable fault interruption.
- Mounts easily on DIN rail with screw terminal connections.
- Suitable for tertiary and industrial applications with electromagnetic tripping mechanism.
- Rated for 400V AC operation and complies with IEC/EN 61008 and RoHS standards.
- Equipped with toggle switch reset actuator for user convenience.
Product Description
ABB DDA200 Residual Current Device model offers high reliability with a 40A current rating and 4 poles for comprehensive circuit protection. With a trip sensitivity of 30 mA and Type B tripping characteristics, it is ideal for detecting AC, pulsating DC, and smooth DC earth fault currents, protecting sensitive equipment in industrial and residential installations.
This Residual Current Device is designed to be mounted on a DIN rail and is compatible with ABB MCBs from the S200 series, facilitating modular assembly. It incorporates electromagnetic tripping mechanics with instantaneous break time to ensure rapid disconnection upon fault detection.
Constructed with screw-type terminals, the device ensures secure and stable wiring connections. The device meets RoHS and IEC/EN 61008 standards, assuring safety and compliance. It operates at a rated AC voltage of 400V and provides a breaking capacity of 1 kiloampere (kA), suitable for handling fault currents safely.
The compact dimensions (Height: 85 mm, Width: 69 mm, Depth: 93 mm) enable the device to fit in standard electrical panels without occupying excessive space. Its toggle switch allows easy manual reset after tripping events.
Applications include industrial plants, commercial buildings, and residential electrical systems where sensitive earth leakage protection is essential. The Type B tripping characteristic specifically allows detection of smooth DC faults, which is critical for modern electronic systems and renewable energy setups.
Protection against earth leakage with 30 mA sensitivity. Type B tripping characteristic for AC and smooth DC currents. Instantaneous break for rapid fault response. DIN rail mount with screw terminals for easy installation.
Complies with IEC/EN 61008 and RoHS standards. Compact and durable design from ABB. Applications in industrial and residential environments. Toggle switch actuator for convenient reset. Explore the range of ABB Residual Current Devices at EnvMart to ensure reliable electrical safety solutions for various applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DDA200 has a current rating of 40A.
It features a trip sensitivity of 30 mA.
This model has Type B tripping characteristics, suitable for detecting AC, pulsating DC, and smooth DC earth fault currents.
The device has a breaking capacity of 1 kA.
The dimensions are 85 mm in height, 69 mm in width, and 93 mm in depth.
It is designed for DIN rail mounting and features screw terminal connections for secure wiring.
This model complies with RoHS and IEC/EN 61008 standards.
It is equipped with a toggle switch reset actuator for user convenience.
It is suitable for use in industrial plants, commercial buildings, and residential electrical systems where sensitive earth leakage protection is essential.
The rated AC voltage for this device is 400V.
The device utilizes an electromagnetic tripping mechanism with instantaneous break time for rapid disconnection upon fault detection.
Yes, it supports assembly with ABB MCBs from the S200 series for integrated protection.
