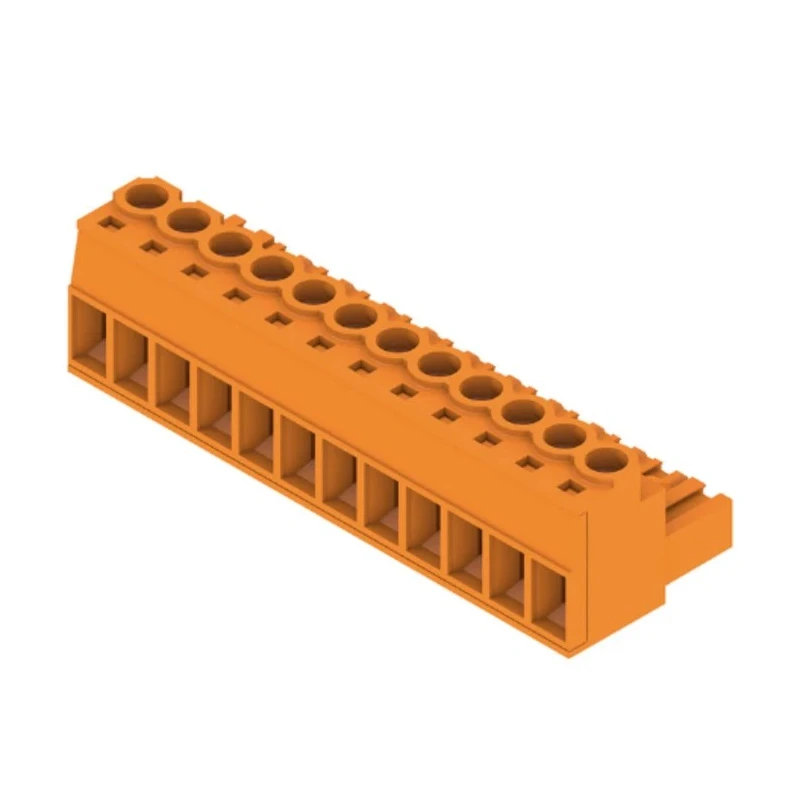

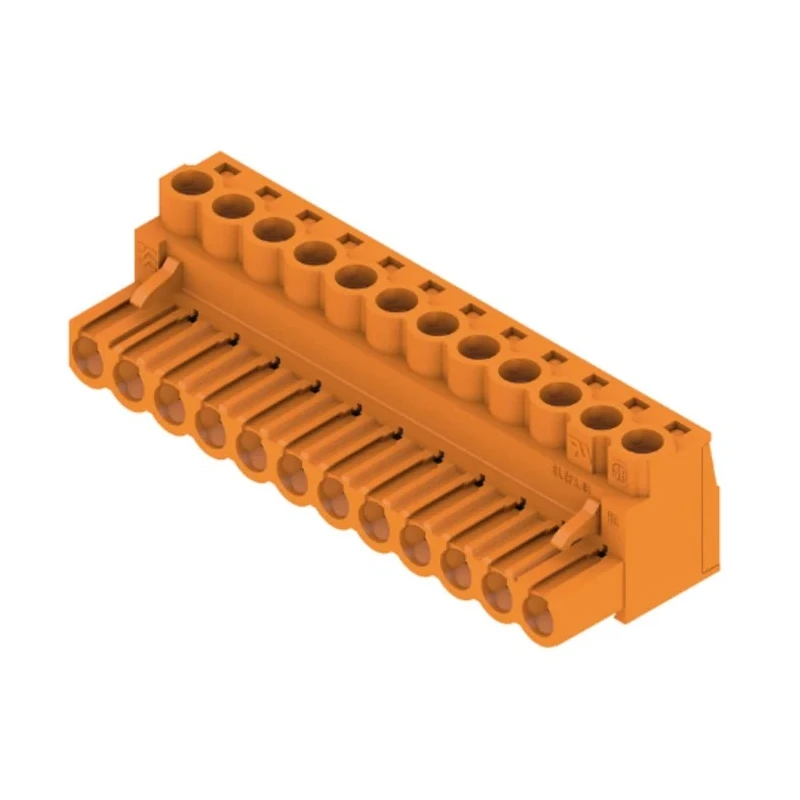

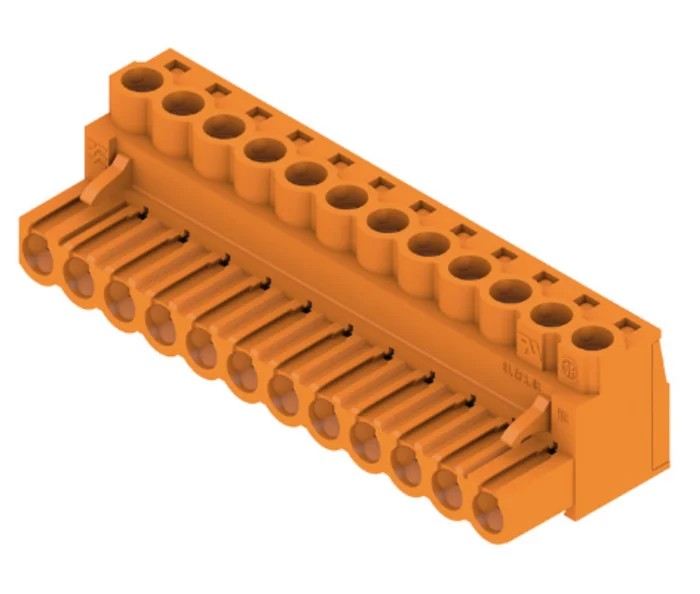

Weidmüller BL Series Pluggable Terminal Block 12-Contact 5.08 mm Pitch 1 Row Screw Termination 20A Current 400V 1943680000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 20A |
| Length | 67.88mm |
| Depth | 16mm |
| Width | 20.1mm |
| Housing Material | Copper Alloy |
| Series | BL |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 12 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
| Weidmüller Barrier Strip, 12 Contact, 5.08 mm Pitch, 1 RowBrand | Weidmüller |
Key Features
- This terminal block supports a current rating of 20A and voltage up to 400V.
- The right angle body design enables compact installation in restricted spaces.
- Screw termination ensures reliable and secure wire connections.
- Constructed from durable copper alloy housing for longevity and electrical safety.
- It accommodates wire sizes from 0.2mm² to 4mm² (26AWG to 12AWG).
- Through hole mounting provides stable and robust installation.
- The orange color coding aids easy identification and wiring.
- RoHS compliant, suitable for industrial automation and HVAC applications.
Product Description
Weidmüller 1943680000 BL Series Pluggable Terminal Block features 12 contacts with a 5.08 mm pitch in a single row, designed for reliable electrical connections in industrial and automation applications. The terminal block supports a current rating of 20A and is rated for up to 400V, meeting diverse voltage requirements.
Its right angle orientation allows installation in compact or space-constrained environments, optimizing panel layouts. The housing is made from a sturdy copper alloy that ensures durability and excellent conductivity over time.
The terminal block uses screw termination for secure wire connections and supports a wire size range from 0.2 mm² to 4 mm² (26 AWG to 12 AWG), accommodating various conductor sizes. The through hole mounting method guarantees a stable mechanical and electrical connection during installation.
The distinctive orange color of the block enhances wire management and identification in complex assemblies. Compliant with RoHS standards, it is environmentally friendly and suitable for use in automation equipment, HVAC systems, and other industrial electrical assemblies.
While optimized for indoor use with an IP20 protection rating, this terminal block provides a high level of reliability in electrical links where safety and performance are critical.
This product contains 12 contacts enhancing multi-circuit connectivity. Compact right angle form factor supports space-saving panel designs. Screw termination method delivers secure and easy wiring. Copper alloy housing ensures long service life and corrosion resistance.
Supports 20A current and 400V voltage rating for diverse applications. Suitable for wire sizes from 0.2 mm² to 4 mm², accommodating common wiring gauges. Mounts using through hole technique for mechanical stability. Ideal for automation, HVAC, and industrial electrical uses.
RoHS compliant ensuring adherence to environmental regulations. Explore more electronics components like terminal blocks and related products in the Electronics Components section of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 20A.
This model is rated for up to 400V.
The contacts have a pitch of 5.08 mm.
It accommodates wire sizes from 0.2 mm² to 4 mm² (26 AWG to 12 AWG).
Wiring is connected using a screw termination method.
It has a length of 67.88 mm, a width of 20.1 mm, and a depth of 16 mm.
This model features a right angle orientation, allowing for compact installation.
The housing is constructed from a copper alloy, ensuring durability and conductivity.
Yes, it is RoHS compliant, adhering to environmental regulations.
It is suitable for use in industrial automation and HVAC applications.
This model features 12 contacts, enhancing multi-circuit connectivity.
The country of origin for this terminal block is Germany.
