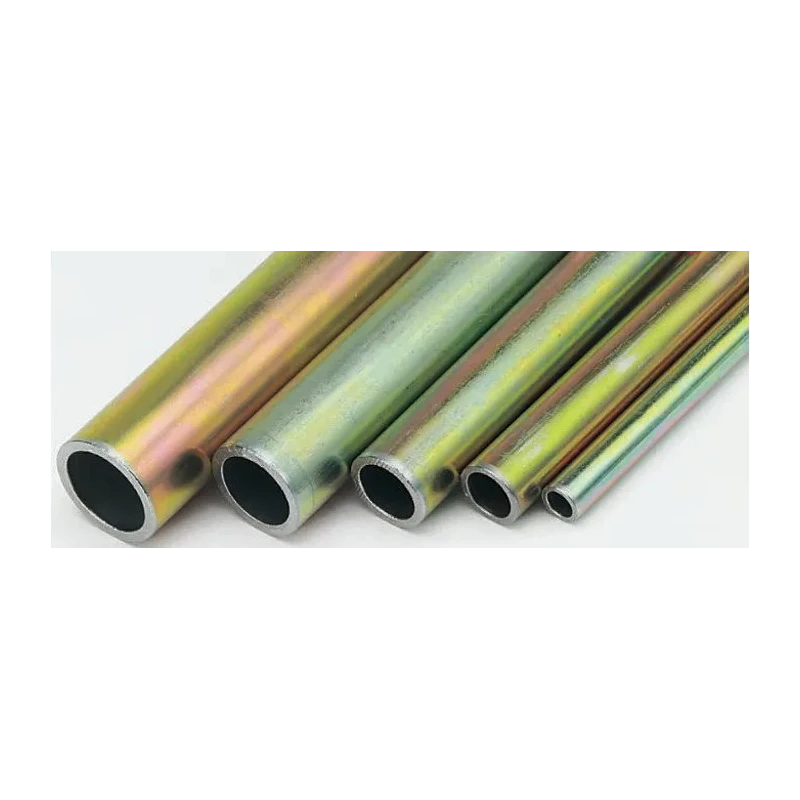

RS PRO 12 mm ID Zinc Plated Steel Hydraulic Tubing 2 m, 16 mm OD, 2 mm Thickness, 345 bar Maximum Operating 400-7724
Specifications
| Country of Origin | Spain |
|---|---|
| Brand | RS PRO |
| Material | Zinc Plated Steel |
| Maximum Operating Pressure | 345 bar |
| THICKNESS | 2mm |
| Length | 2m |
| Model | 400-7724 |
| Finish | Zinc Plated |
| Gross Weight | 0.7kg/m |
| Outside diameter | 16mm |
| Maximum Operating Temperature | 120°C |
| Inside Diameter | 12mm |
| Minimum Operating Temperature | -40°C |
| RS PROPolypropylene Tube Clamp for 19 mm OD TubeBrand | RS PRO |
Key Features
- Constructed from zinc plated steel with a yellow passivated finish for high corrosion resistance.
- Metric cold drawn steel tube manufactured to DIN 2391/C standard, ensuring fine grain quality and tensile strength.
- Outside diameter measures 16 mm with an inside diameter of 12 mm and thickness of 2 mm.
- Suitable for operating temperatures ranging from -40°C to 120°C without pressure reduction.
- Maximum operating pressure rated at 345 bar, suitable for hydraulic systems.
- Compatible with EO hydraulic tube fittings for fluid applications in industrial and mechanical environments.
- Originates from Spain and features a plating thickness between 8 to 12 microns.
Product Description
RS PRO 400-7724 Hydraulic Tubing is a zinc plated steel seamless tube with a 12 mm inside diameter and a 16 mm outside diameter. This 2-meter long tubing is designed to withstand a maximum operating pressure of 345 bar, making it ideal for demanding hydraulic systems in industrial applications.
The tubing is manufactured to DIN 2391/C standards using cold drawn steel in fine grain quality (material type ST37.4 to DIN 1630 NBK). Its zinc plated yellow passivated finish provides superior corrosion resistance thanks to a plating thickness of 8 to 12 microns, ensuring durability in harsh environments.
With a thickness of 2 mm, this hydraulic tubing maintains structural integrity over its operation temperature range of -40°C to 120°C without the need for pressure reduction. The tensile strength (RM) is at least 340 N/mm², and the yield point (ReH) is minimum 235 N/mm², guaranteeing reliable performance under pressure.
The 2 m tubing sections come with capped ends to prevent contamination during storage and installation. This product is compatible with EO hydraulic tube fittings and is suitable for fluid power applications in mechanical, construction, manufacturing, and general industrial sectors.
Constructed from zinc plated steel with high corrosion resistance. Manufactured to DIN 2391/C with cold drawn fine grain steel. Rated for maximum 345 bar operating pressure. Operates reliably between -40°C and 120°C. 2 meter length with capped ends for protection.
Compatible with EO hydraulic tube fittings series. Spanish origin ensuring quality manufacture.
This RS PRO hydraulic tubing is a dependable choice for professionals requiring reliable Hydraulic Tubing for fluid power transmission. Explore other hydraulic tubes and fittings in the EnvMart catalog for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hydraulic tubing has an outside diameter of 16 mm, an inside diameter of 12 mm, and a thickness of 2 mm. It is 2 meters long.
This model is rated for a maximum operating pressure of 345 bar, making it suitable for demanding hydraulic systems.
The tubing operates reliably within a temperature range of -40°C to 120°C without the need for pressure reduction.
It is constructed from zinc plated steel, which provides high corrosion resistance.
This hydraulic tubing is manufactured to the DIN 2391/C standard, ensuring fine grain quality and tensile strength.
Yes, it is compatible with EO hydraulic tube fittings for fluid applications in industrial and mechanical environments.
The gross weight of the tubing is 0.7 kg per meter.
Yes, the ends of the tubing are capped to prevent contamination during storage and installation.
This model originates from Spain, ensuring quality manufacture.
The tubing features a zinc plated finish with a yellow passivated coating for enhanced corrosion resistance.
The tensile strength (RM) is at least 340 N/mm², and the yield point (ReH) is a minimum of 235 N/mm².
It is suitable for fluid power applications in mechanical, construction, manufacturing, and general industrial sectors.
