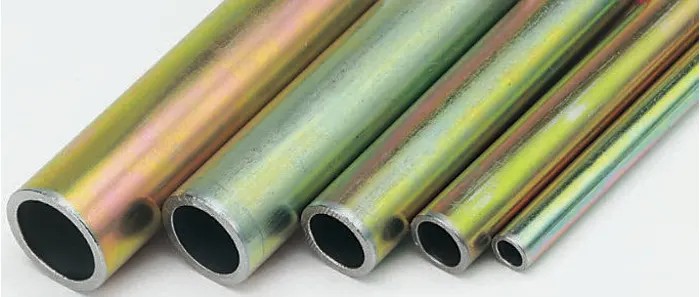

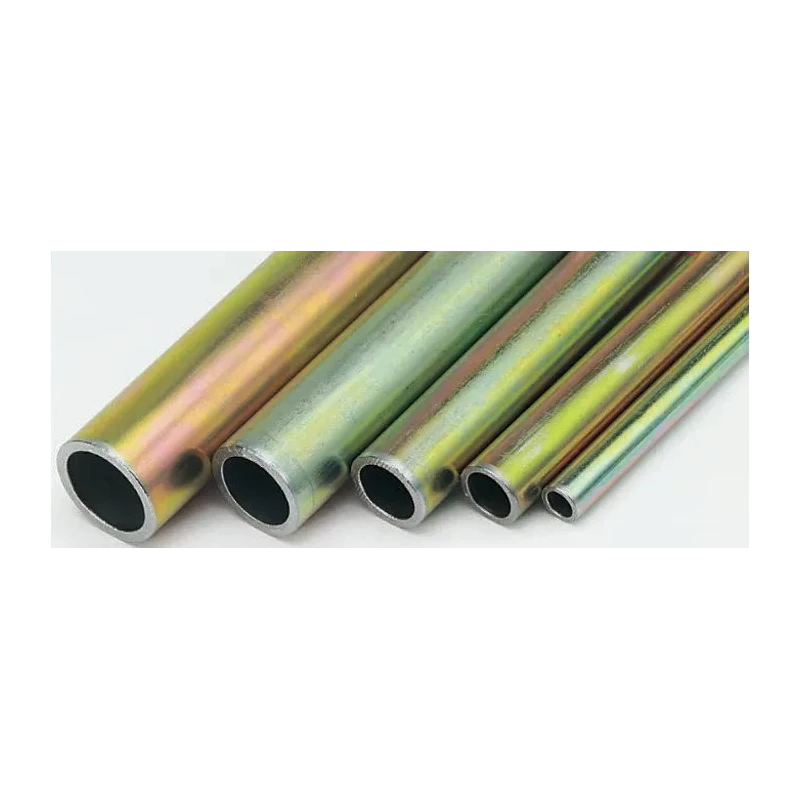

RS PRO Zinc Plated Steel Hydraulic Tubing 14 mm Inside Diameter, 18 mm Outside Diameter, 2 mm Thickness, 2 m Length 432-5757

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Zinc Plated Steel Hydraulic Tubing 14 mm Inside Diameter, 18 mm Outside Diameter, 2 mm Thickness, 2 m Length 432-5757

Name: RS PRO Zinc Plated Steel Hydraulic Tubing 14 mm Inside Diameter, 18 mm Outside Diameter, 2 mm Thickness, 2 m Length 432-5757
Brand: RS PRO
SKU: 424831
Price: 83.02 USD
Availability: InStock



Category Hydraulic Tubing Brand RS PRO Condition New

Specifications

Country of Origin	Spain
Brand	RS PRO
Material	Zinc Plated Steel
Maximum Operating Pressure	303 bar
THICKNESS	2mm
Length	2m
Model	432-5757
Finish	Zinc Plated
Gross Weight	0.8kg/m
Outside diameter	18mm
Maximum Operating Temperature	120°C
Inside Diameter	14mm
Minimum Operating Temperature	-40°C
RS PROPolypropylene Tube Clamp for 19 mm OD TubeBrand	RS PRO

Key Features

Made of zinc plated steel with yellow passivated finish for corrosion resistance.
14 mm inside diameter with 18 mm outside diameter and 2 mm wall thickness.
2 meter length seamless hydraulic tube conforming to DIN 2391/C standard.
Suitable for fluid power applications with maximum pressure rating of 303 bar.
Operates reliably within temperature range of -40°C to 120°C without pressure reduction.
Manufactured from fine grain quality steel meeting tensile strength minimums of 340 N/mm².
Compatible with EO range of hydraulic tube fittings.
Ends capped to prevent dirt ingress during storage and handling.

Product Description

RS PRO 432-5757 Hydraulic Tubing is fabricated from zinc plated steel featuring a yellow passivated finish that provides exceptional corrosion resistance with a plating thickness of 8 to 12 microns. This 2 meter long hydraulic seamless tube has a 14 mm inside diameter and an 18 mm outside diameter with a 2 mm wall thickness, manufactured to DIN 2391/C standard ensuring high-quality and durability.

The tubing is produced from cold drawn steel of fine grain quality (RR) material type ST37.4 as per DIN 1630 NBK, boasting a minimum tensile strength of 340 N/mm² and a yield point ReH of at least 235 N/mm². Its ductile yield A5 (longitudinal) is 25% minimum, which confirms robust mechanical performance under demanding conditions.

Designed for fluid power systems, this hydraulic tube supports a maximum operating pressure of 303 bar and functions in a temperature range from -40°C up to 120°C without pressure derating. The tubing ends are capped to prevent contamination, maintaining cleanliness until installation.

Compatible with the EO range of hydraulic tube fittings, it facilitates seamless integration in various industrial and mechanical applications including construction, manufacturing, and hydraulic system maintenance.

Zinc plated steel with yellow passivated finish for corrosion protection. 2 meter seamless tube length with capped ends to prevent dirt ingress. Meets DIN 2391/C standard and DIN 1630 NBK material quality. High tensile strength and yield point for reliable durability.

Maximum operating pressure of 303 bar suitable for hydraulic applications. Operating temperature range: -40°C to 120°C without pressure reduction. Compatible with EO hydraulic tube fittings for fluid systems. Ideal for use in hydraulic and fluid power industries.

Manufactured in Spain ensuring European quality standards.

This RS PRO Hydraulic Tubing is a dependable choice for hydraulic and pneumatic systems requiring rigorous performance under pressure and temperature stresses in industrial, mechanical, and fluid power applications. Explore the complete range of hydraulic tubes and fittings in the EnvMart catalog for your system needs.
