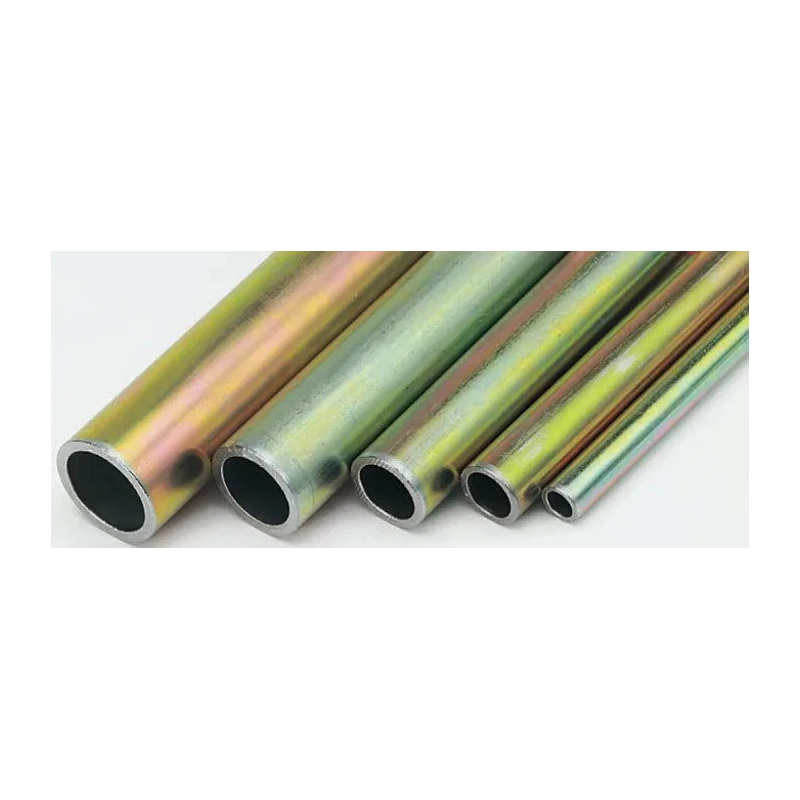

RS PRO 16 mm Inside Diameter Zinc Plated Steel Hydraulic Tubing 20 mm OD 2 mm Thickness 2 m Length 281 bar Max 400-7730

RS PRO 400-7730 hydraulic tubing is engineered from zinc plated steel with a yellow passivated finish, providing exceptional corrosion resistance suitable for industrial hydraulic and fluid power systems. This seamless hydraulic tube conforms to DIN 2391/C standards, ensuring fine grain quality and robust mechanical properties including a tensile strength of 340 N/mm² minimum and yield point of 235 N/mm² minimum. The hydraulic tubing measures 16 mm inside diameter, 20 mm outside diameter, and 2 mm wall thickness, supporting a maximum operating pressure of 281 bar. It is supplied in 2 m lengths with capped ends to prevent contamination during handling and installation.

The tubing operates effectively in a wide temperature range from -40°C to 120°C without pressure loss, making it suitable for diverse industrial environments such as manufacturing plants, agricultural machinery, fluid power tools, hydraulics equipment, and pneumatic systems. Its compatibility with the EO range of hydraulic tube fittings expands integration possibilities for comprehensive hydraulic piping assemblies.

With its zinc plated finish and yellow passivation, the tubing boasts plating thickness between 8 to 12 microns, enhancing corrosion resistance and providing an excellent finish appearance. The product is manufactured in Spain ensuring compliance with European manufacturing and quality standards.

Manufactured from zinc plated steel with a yellow passivated finish for corrosion resistance. Tube dimensions include 20 mm outside diameter, 16 mm inside diameter, and 2 mm thickness. Designed to operate reliably between -40°C and 120°C without pressure reduction.

Maximum operating pressure rating is 281 bar suitable for demanding hydraulic systems. Produced to DIN 2391/C standards ensuring fine grain quality and dimensional accuracy. Supplied in 2 m lengths with capped ends to prevent dirt ingress.

Compatible with EO range hydraulic tube fittings for various fluid applications. Also offers tensile strength minimum of 340 N/mm² and yield point at least 235 N/mm². Ideal for use in industrial hydraulic and pneumatic equipment installations.

Originates from Spain ensuring European manufacturing standards.

This Hydraulic Tubing is engineered for industrial applications including fluid power, hydraulics, manufacturing, construction, and agricultural machinery. It provides dependable durability, mechanical strength, and corrosion protection, making it a valuable component in hydraulic system assemblies. Explore the full range of hydraulic tubes and fittings to complement your equipment needs at EnvMart.
