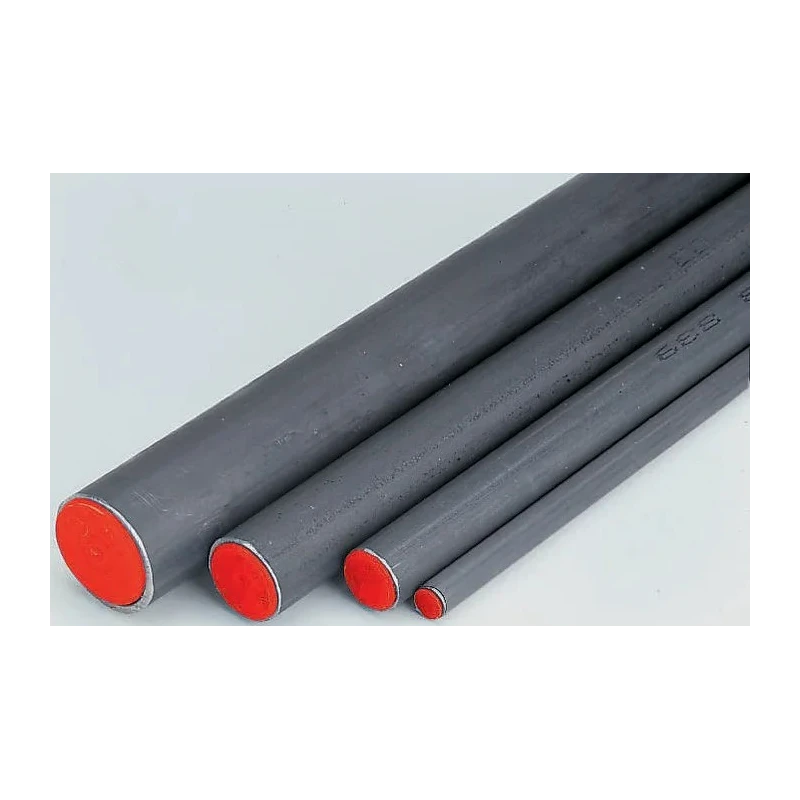

RS PRO 15 mm ID Phosphate Steel Hydraulic Tubing, 2 m, 20 mm OD, 2.5 mm Thickness, Black Phosphate Finish 188-532

RS PRO 188-532 hydraulic tubing features a 15 mm inside diameter and a length of 2 meters. Manufactured from phosphate steel with a black phosphate finish, this hydraulic tube is designed for use in fluid power and industrial hydraulic applications.

The seamless tube is made to DIN 2391/C standards with metric sizes of cold drawn fine grain ST37.4 steel, ensuring exceptional material strength and durability. With an outside diameter of 20 mm and a wall thickness of 2.5 mm, the tubing provides excellent resistance to pressure and mechanical stress.

The black phosphate finish offers moderate corrosion resistance and allows for cold bending using tube benders or by hand. For optimal bending performance, a bend radius of three times the external tube diameter is recommended.

The tubing can operate reliably across a temperature range of -40°C to 120°C without reduced pressure capacity. The tensile strength is rated at a minimum of 340 N/mm², while the yield strength is at least 235 N/mm², providing structural integrity in demanding environments.

Capped ends on the tubing help prevent dirt ingress during installation and handling. This product is compatible with EO hydraulic tube fittings, making it suitable for a wide range of fluid power systems in industrial, manufacturing, and mechanical applications.

Produced in Germany, the RS PRO hydraulic tubing meets high-quality standards and can be used in construction, automotive, agricultural machinery, and factory automation contexts. The tubing has an outside diameter of 20 mm and wall thickness of 2.5 mm.

Manufactured from phosphate steel conforming to DIN 2391/C standards. Seamless tube with capped ends to prevent contamination. Recommended bend radius of 3 times tube external diameter for cold bending. Operating temperature range from -40°C to 120°C.

Tensile strength minimum 340 N/mm² and yield point minimum 235 N/mm². Compatible with EO hydro tube fittings for fluid power applications. Suitable for industrial, mechanical, and hydraulic applications. Manufactured in Germany ensuring reliable performance.
