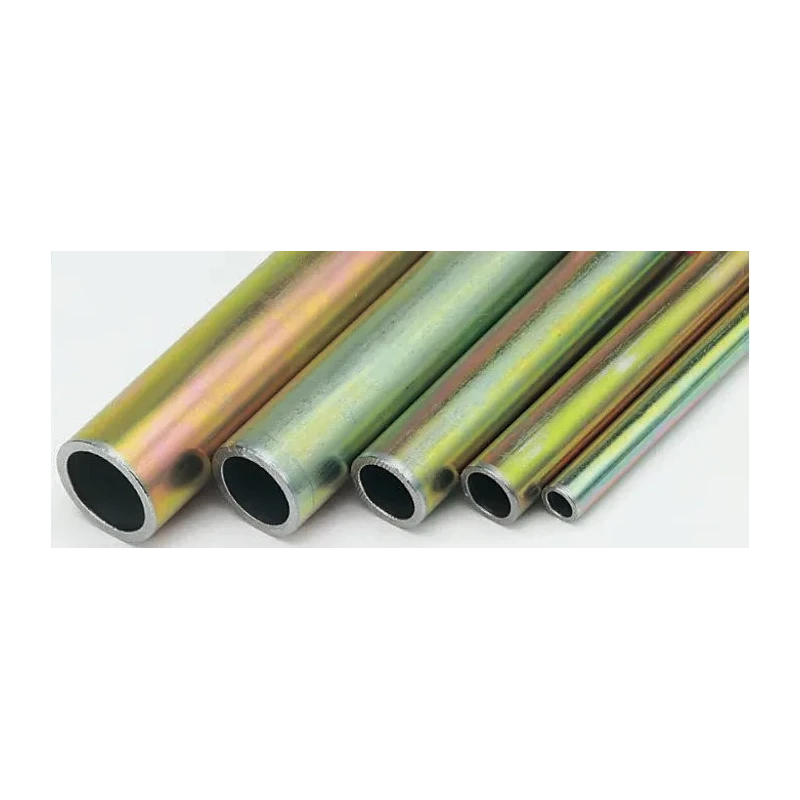

RS PRO Zinc Plated Steel Hydraulic Tubing 18 mm ID, 22 mm OD, 2 mm Thickness, 2 m Length 432-5763
Specifications
| Country of Origin | Spain |
|---|---|
| Brand | RS PRO |
| Material | Zinc Plated Steel |
| Maximum Operating Pressure | 256 bar |
| THICKNESS | 2mm |
| Length | 2m |
| Model | 432-5763 |
| Finish | Zinc Plated |
| Gross Weight | 1kg/m |
| Outside diameter | 22mm |
| Maximum Operating Temperature | 120°C |
| Inside Diameter | 18mm |
| Minimum Operating Temperature | -40°C |
| RS PROPolypropylene Tube Clamp for 22 mm OD TubeBrand | RS PRO |
Key Features
- Constructed from zinc plated steel with a yellow passivated finish for corrosion resistance.
- Inner diameter of 18 mm and outer diameter of 22 mm with 2 mm tube thickness.
- Available in 2 meter length with capped ends to prevent dirt ingress.
- Operates under temperature range of -40°C to 120°C without pressure reduction.
- Has maximum operating pressure rating of 256 bar suitable for fluid power applications.
- Manufactured to DIN 2391/C standard from cold drawn fine grain quality steel ST37.4.
- Tensile strength minimum of 340 N/mm² and yield point minimum of 235 N/mm².
- Ductile yield (longitudinal) minimum 25% ensuring good mechanical strength.
Product Description
RS PRO 432-5763 Zinc Plated Steel Hydraulic Tubing is a precision cold drawn tube designed for hydraulic and fluid power systems requiring reliable performance and corrosion resistance. Featuring an 18 mm inside diameter and 22 mm outside diameter with 2 mm thickness, this tubing is manufactured using zinc plated steel with a yellow passivated finish providing a plating thickness of 8 to 12 microns for excellent protection against corrosion.
The tube is supplied in 2 meter lengths with capped ends to prevent contamination during storage and handling. It adheres to DIN 2391/C standard and is made from fine grain quality steel ST37.4, ensuring a tensile strength of at least 340 N/mm² and a yield point of 235 N/mm², combined with 25% minimum ductile yield longitudinally. This construction ensures durability and reliability under hydraulic pressures up to 256 bar.
The tubing withstands operating temperatures ranging from -40°C to 120°C without requiring pressure reduction, making it suitable for a variety of industrial applications including hydraulic systems in manufacturing, construction, agricultural machinery, and fluid power distribution networks. Its compatibility with EO hydraulic tube fittings further enhances its versatility in hydraulic circuit assemblies.
The zinc plated surface finish not only improves corrosion resistance but also provides a professional appearance similar to EO range hydraulic tube fittings. This product is manufactured in Spain, reflecting high-quality European manufacturing standards.
Constructed from zinc plated steel with protective yellow passivation. Precision cold drawn hydraulic tubing with metric sizes per DIN 2391/C. 2 meter length with capped ends to prevent dirt ingress during handling. High tensile strength and yield point suitable for hydraulic pressures up to 256 bar.
Wide operating temperature range from -40°C to 120°C without pressure degradation. Compatible with EO hydraulic fittings for fluid power systems. Ideal for industrial, construction, agricultural, and manufacturing hydraulic applications.
Explore the full range of Hydraulic Tubing and fittings on EnvMart to find compatible components and accessories tailored to your fluid power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hydraulic tubing has an inside diameter of 18 mm, an outside diameter of 22 mm, and a thickness of 2 mm.
It has a maximum operating pressure rating of 256 bar, making it suitable for fluid power applications.
This tubing operates within a temperature range of -40°C to 120°C without requiring pressure reduction.
It is constructed from zinc plated steel with a yellow passivated finish for enhanced corrosion resistance.
The tubing is available in a length of 2 meters.
It is manufactured to the DIN 2391/C standard from cold drawn fine grain quality steel ST37.4.
The tubing has a minimum tensile strength of 340 N/mm² and a yield point of 235 N/mm².
Yes, it has capped ends to prevent dirt ingress during storage and handling.
It is compatible with EO hydraulic tube fittings, enhancing its versatility in hydraulic circuit assemblies.
This hydraulic tubing is manufactured in Spain, reflecting high-quality European manufacturing standards.
The gross weight of the tubing is 1 kg per meter.
It is suitable for a variety of industrial applications, including hydraulic systems in manufacturing, construction, and agricultural machinery.
