Eaton 6-Pole Surface Mount Isolator Switch IP65, 520A, 22 kW Power Rating, 3 Phase, Red Handle, Model

Category Isolator Switch Brand Eaton Condition New

Specifications

Country of Origin United Kingdom
Brand Eaton
Length 240mm
Model IP65
Depth 125mm
IP Rating IP65
Width 160mm
Mount Type Surface Mount
Series T5B
Maximum Operating Temperature 50°C
Minimum Operating Temperature -25°C
Switching Current 520A
Terminal type Screw
Electrical Phase 3
Handle Colour Red
Number of Poles 6
Standards/Approvals UL, IEC, CSA
Switching DC Voltage 60V dc
Switching AC Voltage 230V ac
Switching Power 22kW

Key Features

  • Red rotary handle enables quick and safe power shut-off.
  • Surface mount construction allows versatile installation positions.
  • IP65 rated for dust-tight protection and resistance to low-pressure water jets.
  • Designed to operate within temperatures from -25°C to 50°C.
  • Equipped with auxiliary contacts for enhanced control functionality.
  • Complies with UL, IEC, and CSA standards offering trusted safety and quality.
  • Screw-type terminals ensure secure and reliable wiring connections.
  • Tested to withstand impulse voltages up to 6000V AC for added electrical protection.

Product Description

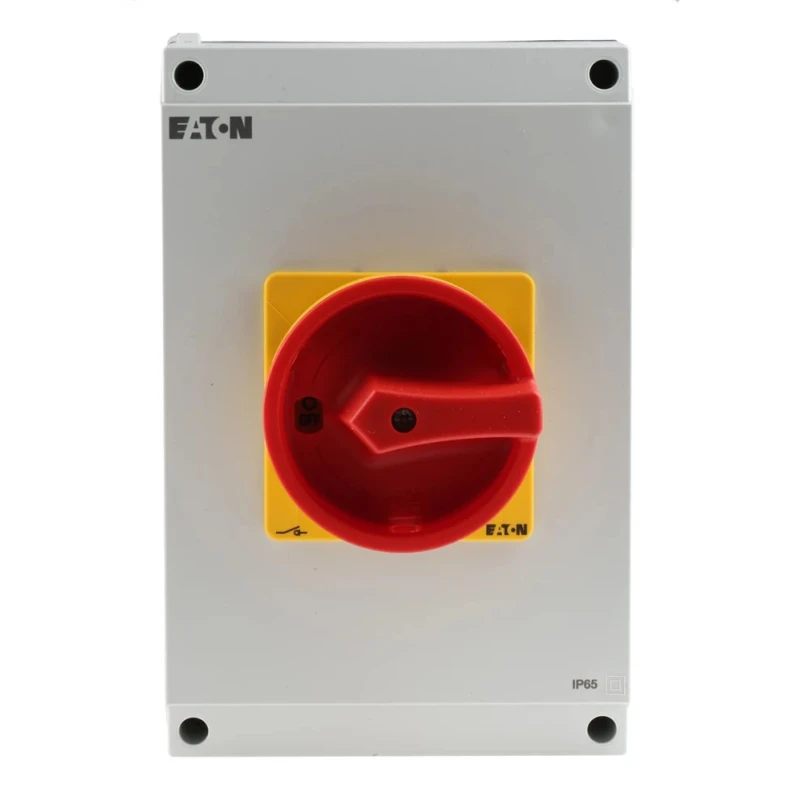

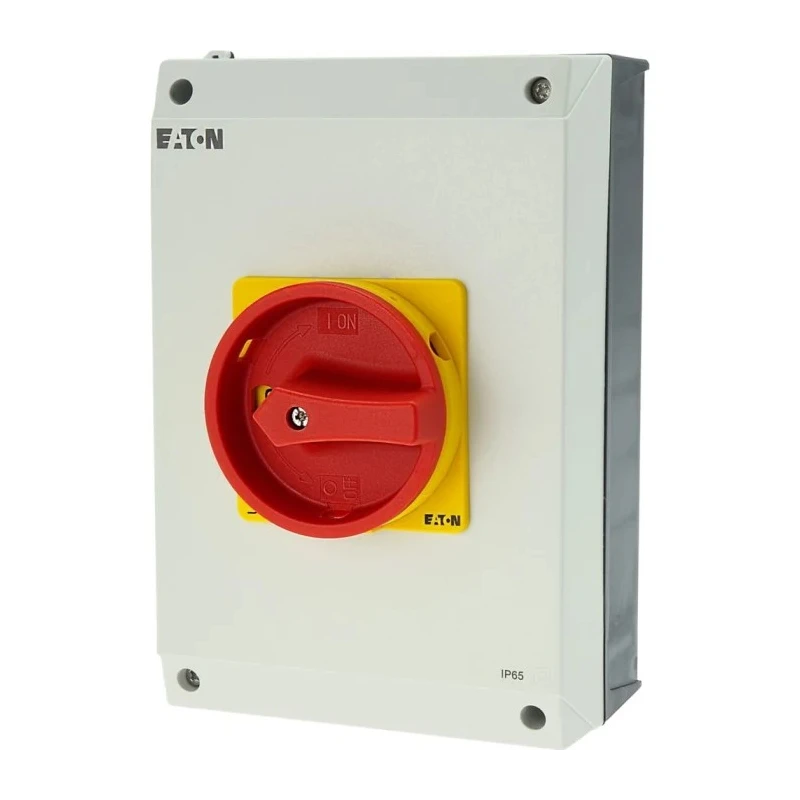

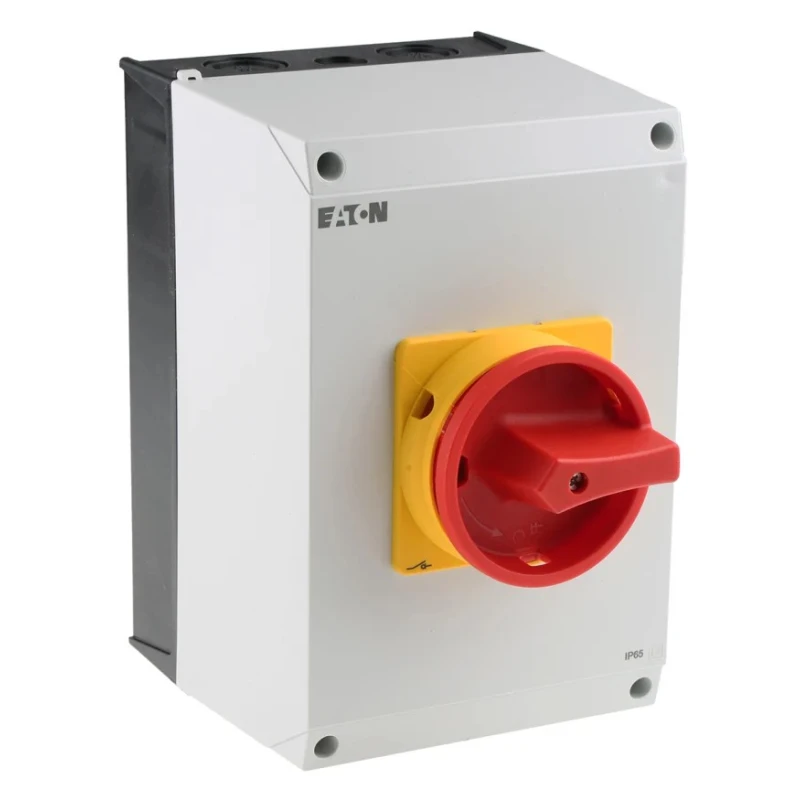

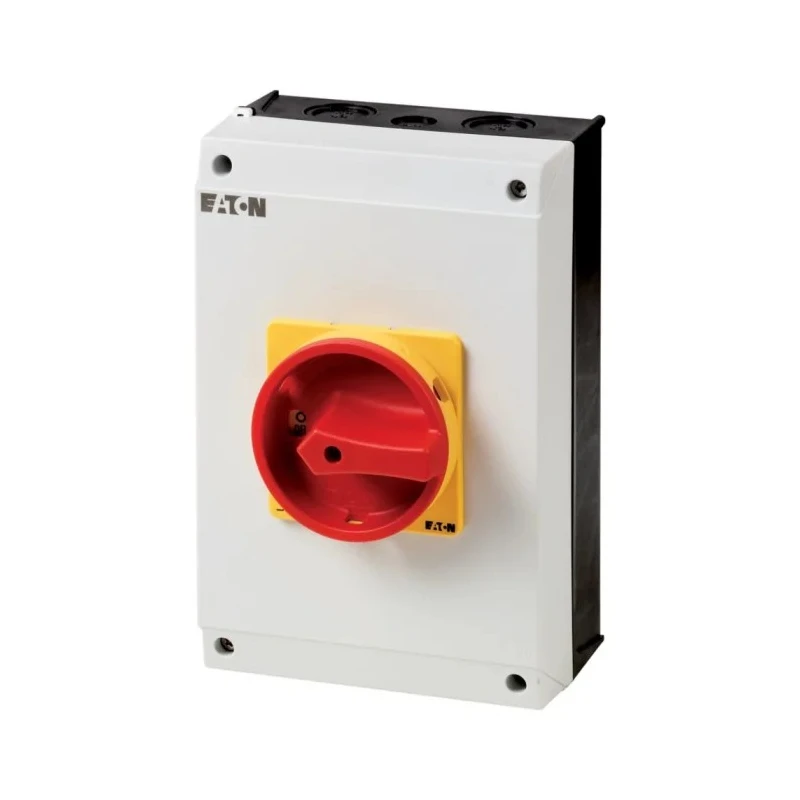

Eaton 207246 T5B-4-15682/I4/SVB 6-Pole Surface Mount Isolator Switch rated at 520A current and 22 kW power is designed for reliable operation in three-phase electrical systems. Featuring a robust red rotary handle, it enables immediate power disconnection to ensure safety during equipment maintenance and emergencies.

Its surface mount design allows installation in any orientation, providing flexibility across diverse industrial setups. The IP65 enclosure rating protects the switch from dust ingress and low-pressure water jets, making it suitable for harsh industrial, manufacturing, and commercial environments.

This isolator switch operates efficiently within an ambient temperature range of -25°C to 50°C. It integrates auxiliary contacts for expanded control functions and employs screw-type terminals for secure connections.

Engineered to meet UL, IEC, and CSA standards, its insulation resistance has been tested up to 6000V AC against impulse voltages, ensuring superior electrical safety. With a mechanical endurance of over 500,000 operations, it delivers consistent reliability and longevity.

Additionally, the switch is lockable in the off position to prevent unauthorized operation, enhancing workplace safety. This model is compatible with Eaton Moeller series K-CI Accessory Neutral terminal (2699706) for expanded application.

Red rotary handle for safe power isolation. Flexible surface mount installation. IP65 dust and water protection. Auxiliary contacts for control features. Screw terminal connections for reliability. UL, IEC, and CSA approved standards.

6000V AC impulse voltage tested. 500,000+ mechanical operation lifespan. Lockable off position for safety. Supports Eaton Moeller accessory terminals.

This isolator switch is ideal for use in industrial automation systems, electrical substations, power distribution, and maintenance safety applications. Eaton ensures reliable isolation performance to meet rigorous operational demands.

Explore more Isolator Switches and related electrical safety devices on EnvMart to secure your equipment efficiently with trusted brand solutions.

Eaton 6-Pole Surface Mount Isolator Switch IP65, 520A, 22 kW Power Rating, 3 Phase, Red Handle, Model
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The isolator switch has a maximum current rating of 520A.

It is rated for a power of 22 kW.

This model has an IP65 rating, providing dust-tight protection and resistance to low-pressure water jets.

The dimensions of the switch are 240mm in length, 160mm in width, and 125mm in depth.

It operates efficiently within a temperature range of -25°C to 50°C.

It features screw-type terminals for secure and reliable wiring connections.

It complies with UL, IEC, and CSA standards, ensuring safety and quality.

This model is a 6-pole isolator switch.

Yes, the switch is lockable in the off position to prevent unauthorized operation.

It is equipped with auxiliary contacts for enhanced control functionality.

This isolator switch is designed for three-phase electrical systems.

It has a mechanical endurance of over 500,000 operations, ensuring consistent reliability.
