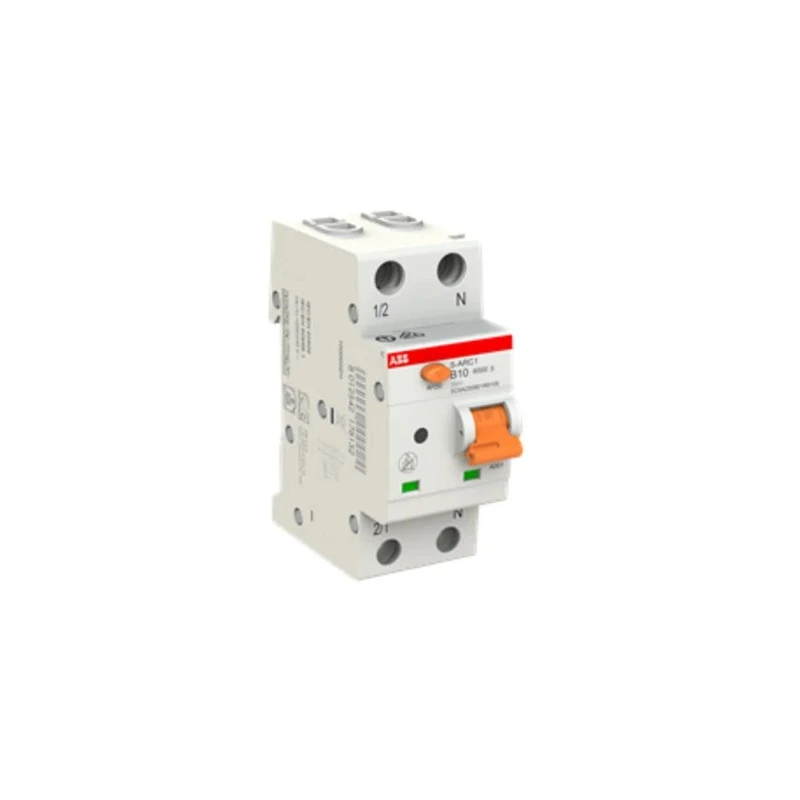

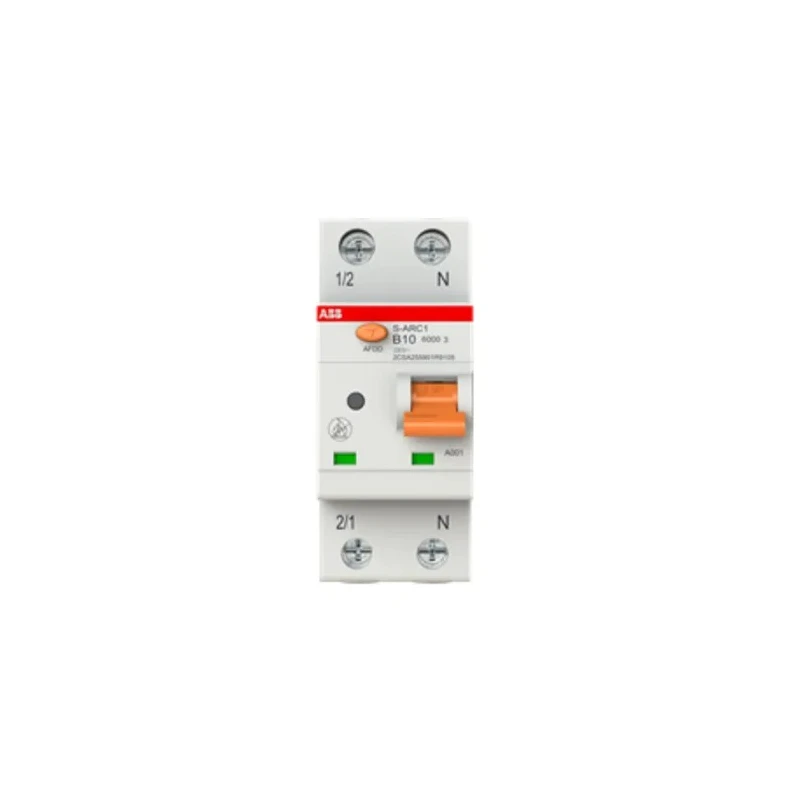

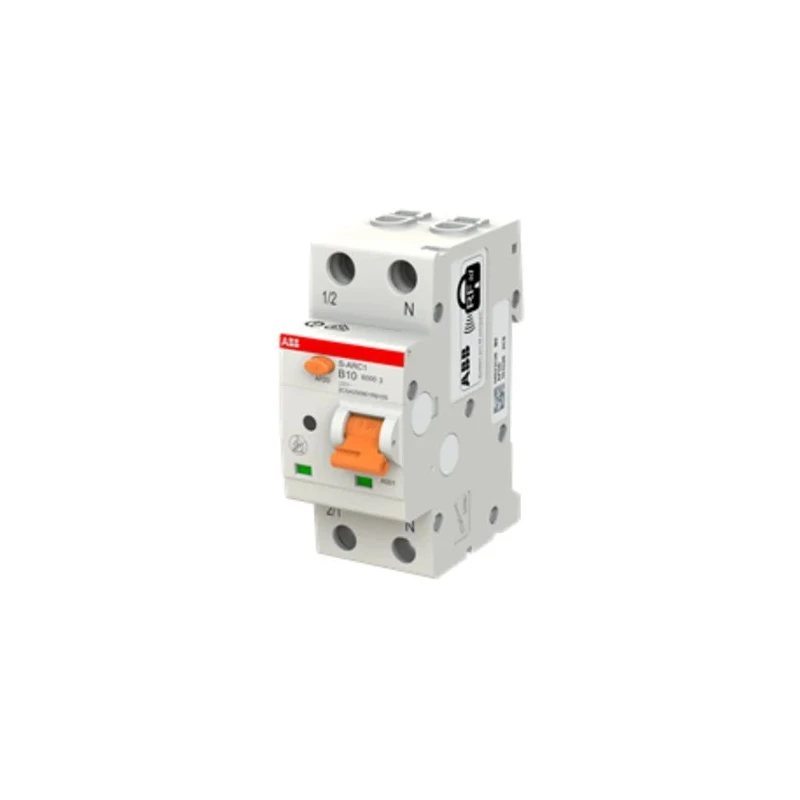

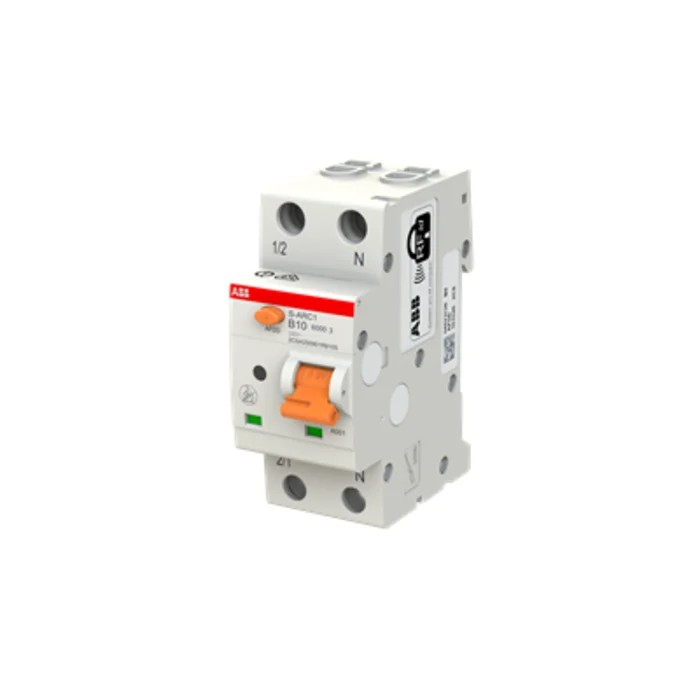

ABB S-ARC1 Miniature Circuit Breaker 1-Pole 10A Type B 240V AC 6 kA Breaking Capacity ARC1

ABB ARC1 Miniature Circuit Breaker model ARC1 is a high-quality 1-pole circuit protection device rated at 10 Amps for use at 240V AC electrical circuits. It provides dependable overcurrent protection with a Type B tripping characteristic suitable for residential, commercial, and light industrial applications.

This compact MCB features a thermal magnetic tripping mechanism that ensures rapid response to fault conditions. The device is mounted easily on DIN Rails, with screw terminals designed for secure wiring connections, promoting installation reliability and safety.

With a breaking capacity of 6 kA, it effectively interrupts high fault currents to protect downstream equipment and wiring. The toggle switch actuator enables straightforward manual resetting after tripping.

The ABB ARC1 complies with IEC/EN 60898-1 and IEC/EN 62606 standards, assuring quality and safety performance. The device has an IP20 and IP40 rating, providing protection from ingress of dust and solid objects.

Physical dimensions of 69mm width, 85mm height, and 69mm depth make it ideal for integration within compact electrical distribution panels. Compact 1-pole design offers reliable overcurrent protection. Type B tripping characteristic ideal for domestic and light commercial loads.

Screw terminal ensures secure and safe wiring connections. DIN Rail mounting enables easy installation in electrical panels. Thermal magnetic tripping mechanism provides precise fault detection. Toggle switch actuator allows quick manual reset of the breaker.

6 kA breaking capacity handles high fault currents efficiently. IP20 and IP40 rated for protection against ingress and dust. Compliant with IEC/EN 60898-1 and IEC/EN 62606 standards for circuit breakers. Dimensions: Width 69mm, Height 85mm, Depth 69mm for compact panel integration.

This Miniature Circuit Breaker is widely used for overcurrent protection in residential electrical mains, automation equipment, mechanical system circuits, and lighting or appliance circuits. It enhances electrical safety by accurately detecting overcurrent and short circuits and disconnecting power swiftly to avoid damage.
