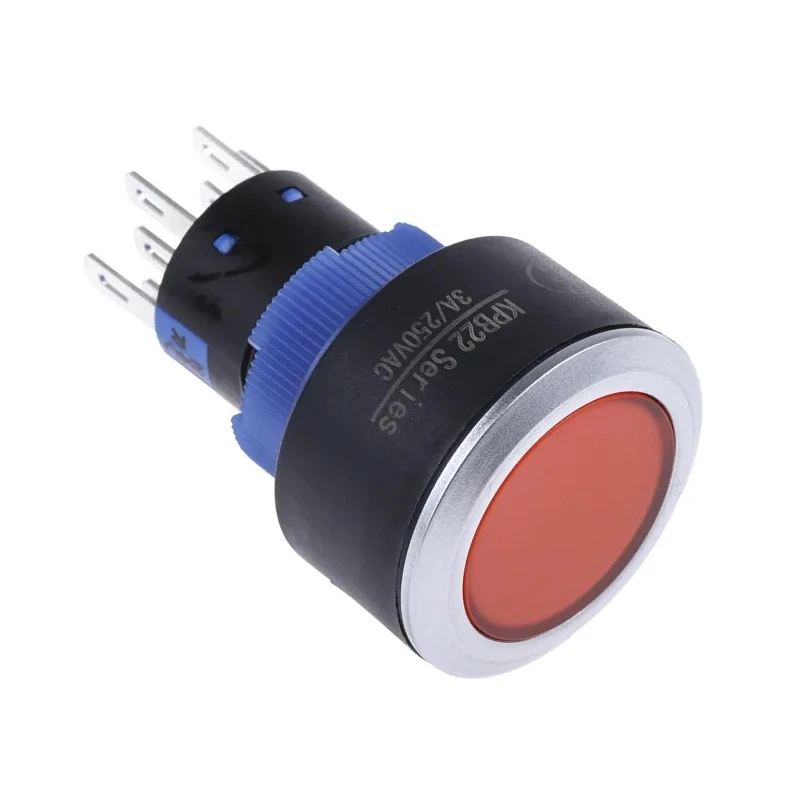

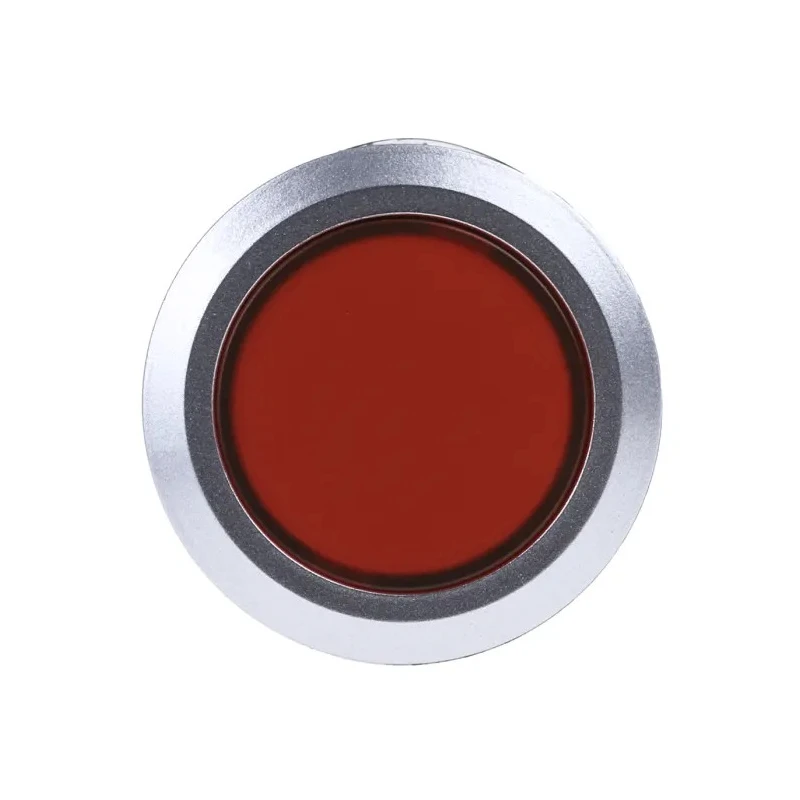

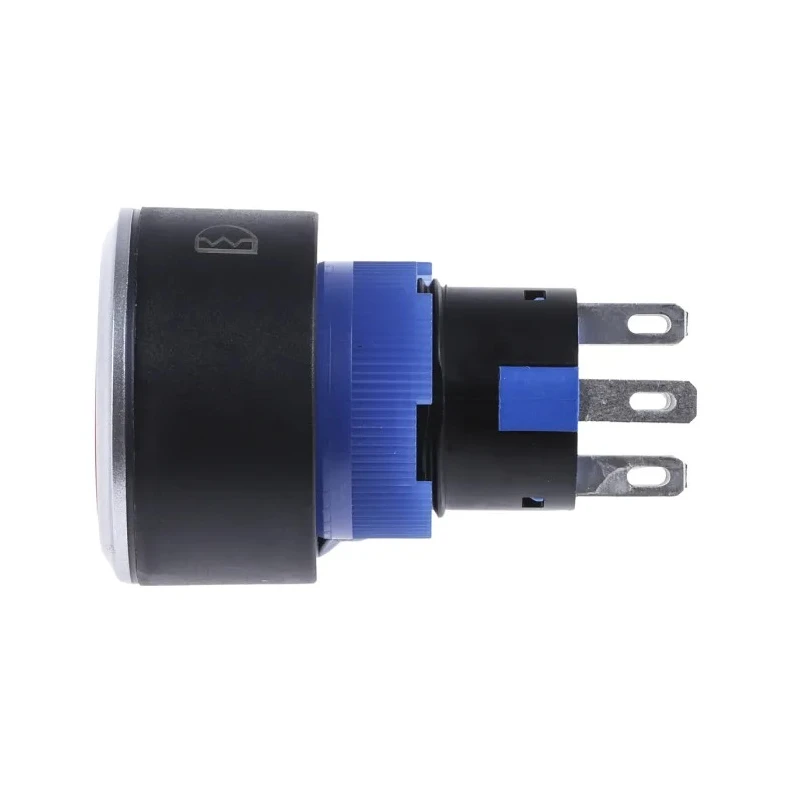

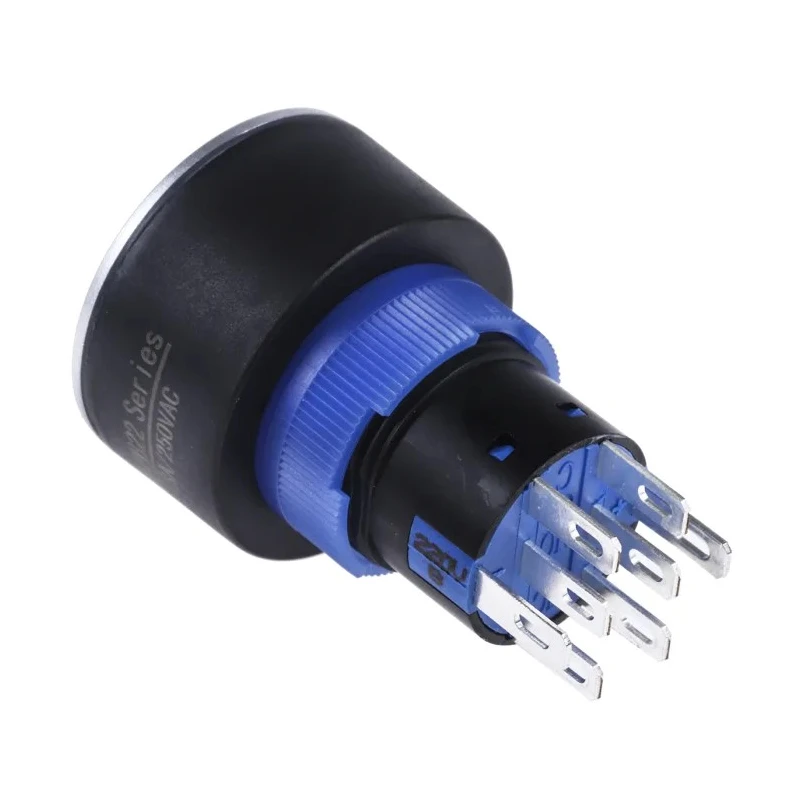

RS PRO Illuminated Momentary Push Button Switch Panel Mount DPDT 22.2 mm Cutout Red LED IP65 36 V dc 250 V KPB22

RS PRO KPB22 Series Illuminated Momentary Push Button Switch with DPDT contact configuration is designed for panel mount installations requiring a precise 22.2 mm cutout. This high-quality switch includes a flat red actuator with LED illumination, providing clear and immediate status indication. It is IP65 rated, ensuring excellent protection against dust ingress and water jets, suitable for challenging industrial or commercial environments.

The switch supports contact voltages of 36 V dc and 250 V ac, with a maximum contact current rating of 5 A suitable for various electrical circuits. The robust construction features a lightweight plastic cover combined with a silver metal cap and customized carved pattern, enhancing both functionality and appearance.

This KPB22 series switch operates momentarily, engaging contacts only while pressed, facilitating control that is instantaneous and temporary. Its DPDT (Double Pole Double Throw) contact arrangement allows flexible switching schemes, making it ideal for automation, communication equipment, wireless devices, industrial machinery, and office electronics.

The operating temperature range from -35°C to 70°C allows use in diverse environments without performance degradation. The solder terminal type ensures easy and secure electrical connections during installation.

Applications include communication equipment, wireless devices, electronic measuring instruments, automation systems, office machines, and other industrial electronic equipment. The IP65 rating maintains reliable operation in dusty or wet conditions.

The switch is momentary action for temporary contact engagement. Panel mount design fits neatly into 22.2 mm cutouts. Illuminated with a bright red LED for clear status indication. Double Pole Double Throw (DPDT) contact configuration supports versatile circuit control.

Rated for contact voltages of 36 V dc and 250 V ac. IP65 rating ensures protection against dust and water ingress. Flat actuator style with red color offers ergonomic and visible operation. Operating temperature range from -35°C to 70°C for reliable performance in varied environments.

Suitable for communication, automation, industrial, and electronic measuring equipment applications. Constructed with lightweight plastic and silver metal cap for durability and aesthetic appeal. Explore more reliable and precision-engineered Push Button Switches and related electrical components on EnvMart for your industrial and commercial applications.
