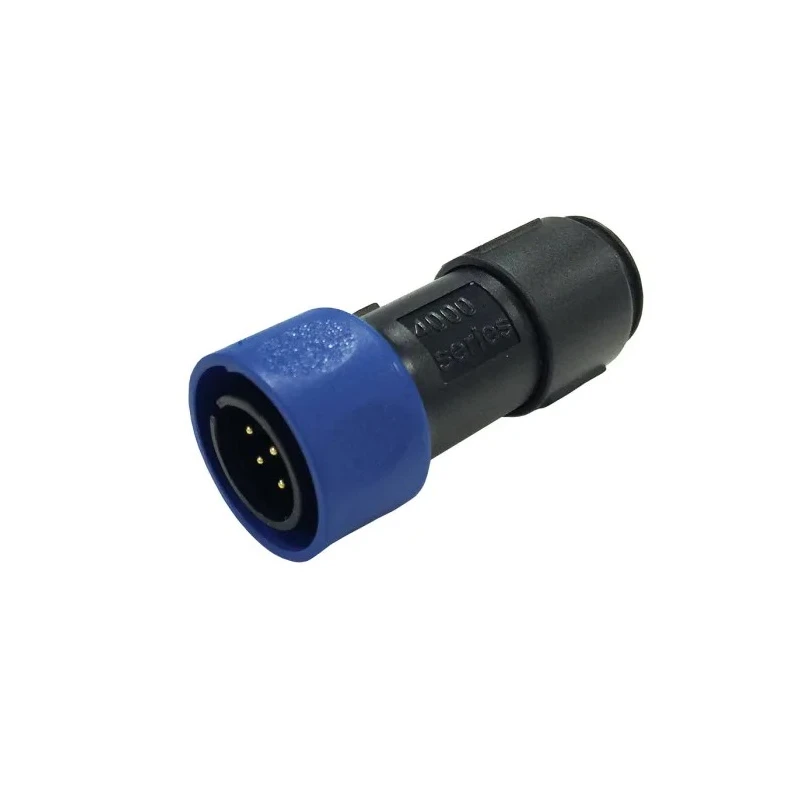

Bulgin Buccaneer 4000 Series Circular Connector, 2 Contacts, Miniature Cable Plug, Male, Threaded Mating PXP4010/02P/5055

Bulgin PXP4010/02P/5055 Buccaneer 4000 Series circular connector is a high-quality industrial grade miniature connector designed for power and data transmission with a robust cable mount configuration. It features 2 male contacts with a reliable threaded mating system for secure connections in demanding environments.

This connector supports currents of 10 to 13 amps at 600 volts, making it suitable for a broad range of industrial, manufacturing, and electronic applications requiring durable and compact connectors. It is rated IP68, IP66, and IP69K, ensuring protection against dust, water ingress and high pressure washdowns, making it excellent for use in harsh conditions.

The polymer housing offers flame retardant properties and corrosion resistance, while the gold plated copper contacts ensure excellent conductivity and mechanical stability. It operates across a temperature range of -40°C to 120°C, which suits diverse environments including outdoor and industrial settings.

The Buccaneer 4000 series connectors come with options for 2, 3, 4, 6, 8, 10, and 12 pole configurations, with this model having the 2 pole format. It has a compact miniature size and a shell diameter of 20 mm with a straight plug orientation, ideal for tight spaces.

Additional benefits include color coded O-rings and washers for straightforward identification, crimp and solder contacts availability, and sealing caps to maintain IP ratings when disconnected. This connector mates with other Buccaneer 4000 series options including flex in-line or panel mounting versions, making it versatile for various industrial and electronic applications.

Supports 10 to 13 amp current rating and 600 volts voltage rating. IP68, IP66, and IP69K rated for reliable ingress protection. Threaded mating and straight orientation for secure connections. Polymer housing and gold plated copper contacts for durability.

Wide operating temperature from -40°C to 120°C. Miniature size with 2 contacts for compact power and data transmission. Contacts supplied separately, except PCB versions. Color coded O-rings and sealing caps available for IP compliance.

This Bulgin Buccaneer connector is ideal for industrial, manufacturing, electronic, and power connector applications requiring robust, compact, and high-performance connectors. Find more Industrial Circular Connectors and related components in the Electronics & Electricals category on EnvMart for your project needs.
