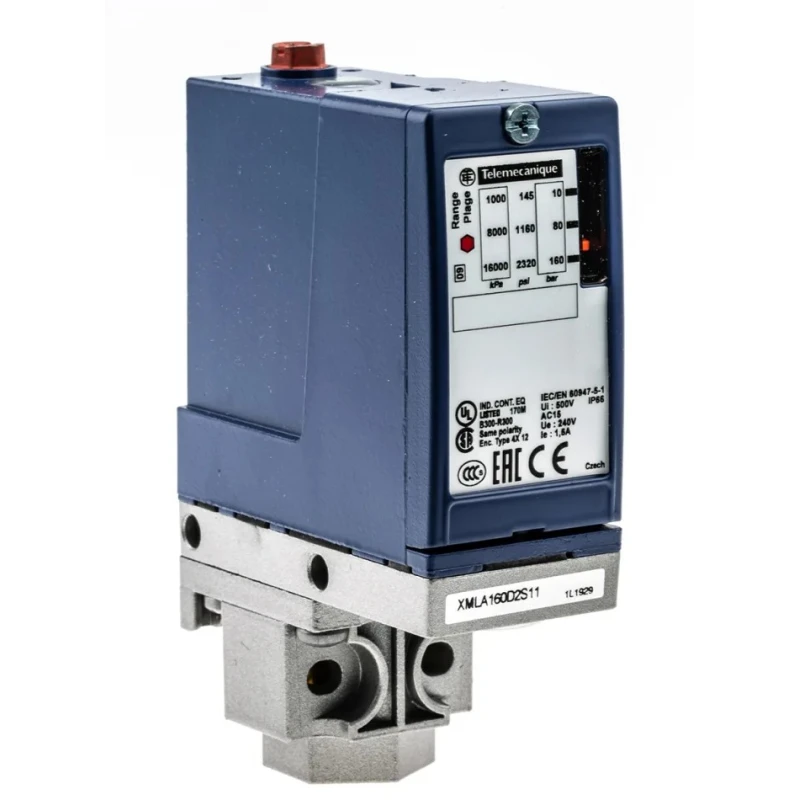

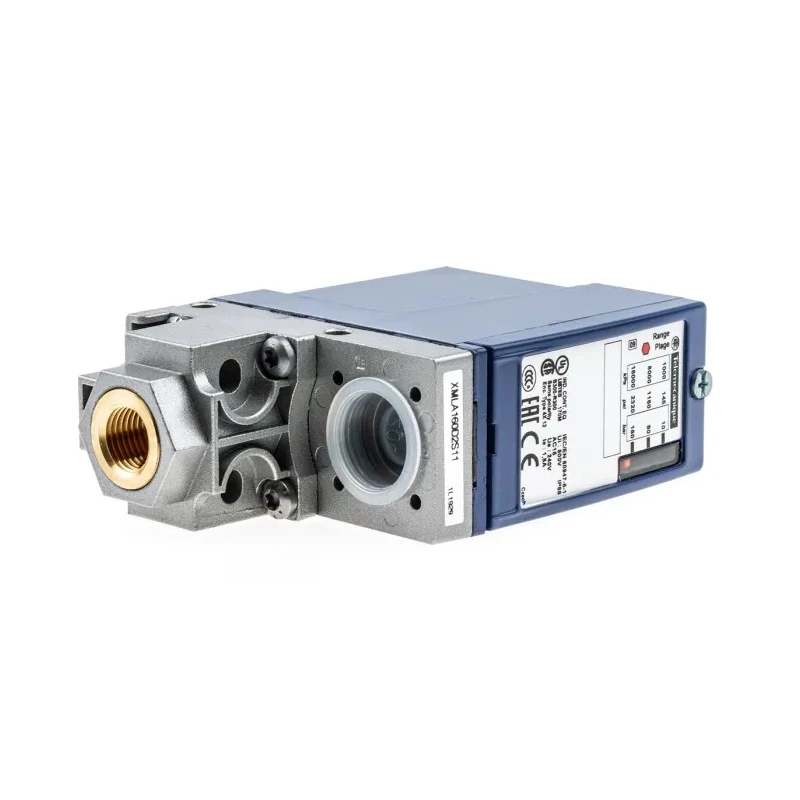

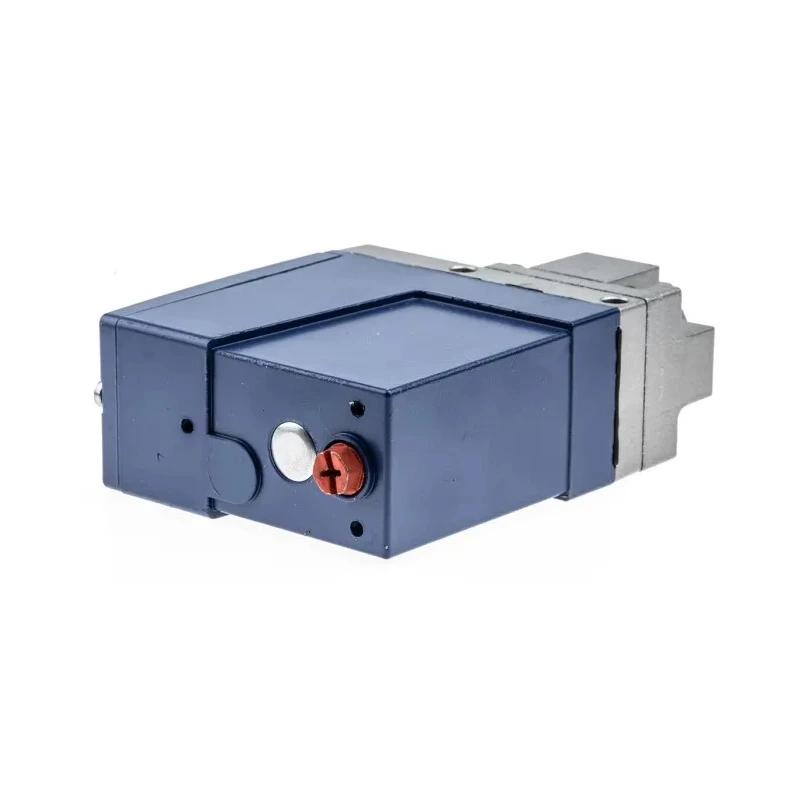

Telemecanique Sensors XMLA Series Pressure Sensor, Relay Output, Differential Reading, 10 bar to 160 bar, Zinc XMLA160D2S11

Telemecanique Sensors XMLA160D2S11 is a high-quality pressure sensor designed for precise differential pressure measurement ranging from 10 bar to 160 bar. Featuring relay output with 1 NO and 1 NC snap acting contacts, it ensures reliable pressure control suitable for various industrial and automation applications. The sensor is engineered to operate accurately with an accuracy of 2% in demanding environments.

The sensor housing is constructed from durable zinc alloy material, providing excellent protection with an IP66 rating for terminal connections and IP65 with plug-in connectors. It is suitable for use with hydraulic fluids, fresh and sea water, air, steam, corrosive fluids, and viscous products, making it versatile for multiple media.

Operating temperature capabilities range from -25°C up to +70°C, enabling application across diverse climatic conditions. Electrical connections are facilitated through screw clamp terminals. The sensor installation uses a 1/4" NPT media connection coupled with a 1/2" NPT conduit connection for secure fittings.

The XMLA series pressure sensor adheres to stringent international standards, including UL 508, EN/IEC 60947-5-1, CSA C22-2 No 14, and CE, ensuring compliance and safety in industrial environments. It supports an operating rate of up to 120 operations per minute for diaphragm types and 60 per minute for piston types.

Common industrial applications include automation systems, hydraulic pressure monitoring, manufacturing process control, and HVAC system pressure regulation. The fixed differential characteristic along with external pressure setting windows provides precise pressure threshold detection.

Designed for differential pressure measurement with high stability and accuracy. Relay output allows integration with automated control circuits. Robust zinc alloy construction offers long-term durability in harsh environments.

Wide temperature and pressure range suitable for industrial conditions. Ease of installation with standard NPT thread connections. Compliance with major industry standards ensures reliability and safety. Applicable for hydraulic oils, water, air, steam, and corrosive fluids.

IP66 rated housing protects against dust and powerful water jets. Operating rate supports high-frequency cycling in control applications. Manufactured in Morocco adhering to quality control standards. Explore more Telemecanique Sensors Pressure Sensors and components on EnvMart for industrial automation needs.
