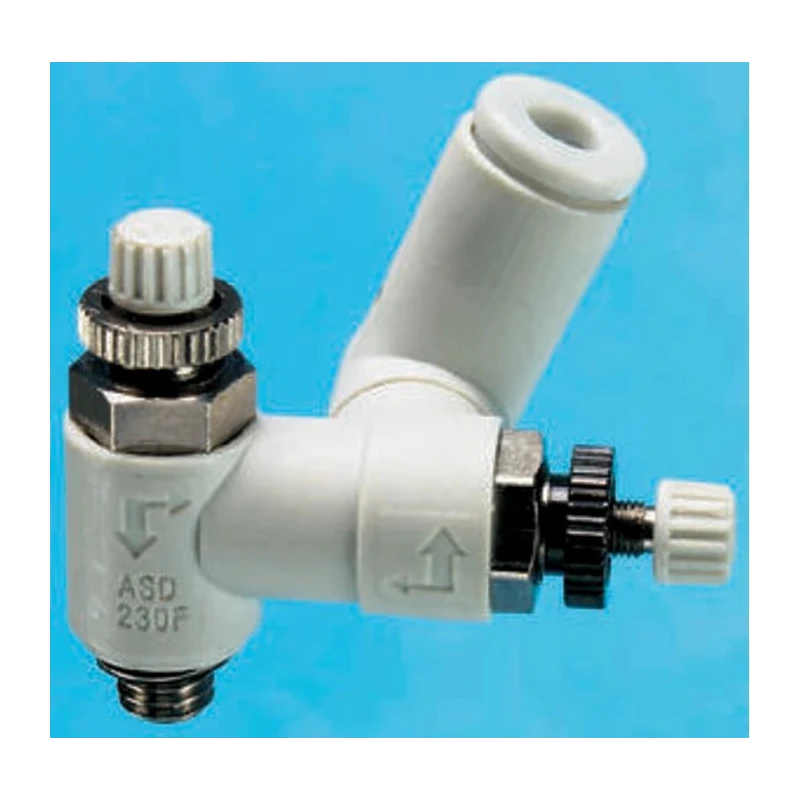

SMC ASD Series Flow Controller Flow Regulator with Inlet Male Threaded R and Outlet Male R, Operating ASD430F-02-06S

SMC ASD430F-02-06S Flow Controller Flow Regulator is a high-precision pneumatic component designed for efficient control of compressed air flow to pneumatic actuators and miniature cylinders. It integrates dual flow control valves and dual check valves in a compact body, combining meter-in and meter-out flow regulation functions to optimize performance and reduce pipework complexity.

This flow regulator features male inlet and outlet connections with threaded R standards, ensuring compatibility with common pneumatic systems. It operates within a pressure range of 0.1 MPa minimum to 1 MPa maximum, with a proof pressure of 1.5 MPa, allowing for reliable and safe control under typical industrial conditions.

Designed to function in environments ranging from 0°C to 60°C, it supports stable pneumatic flow regulation across standard temperature ranges. The device does not carry hazardous area certification, making it suitable for general pneumatic installations.

The compact design and push-pull locking dial facilitate precise, fast flow adjustments, reducing setting time by half compared to conventional regulators. This makes the ASD430F-02-06S ideal for automation applications requiring accurate speed control of pneumatic cylinders.

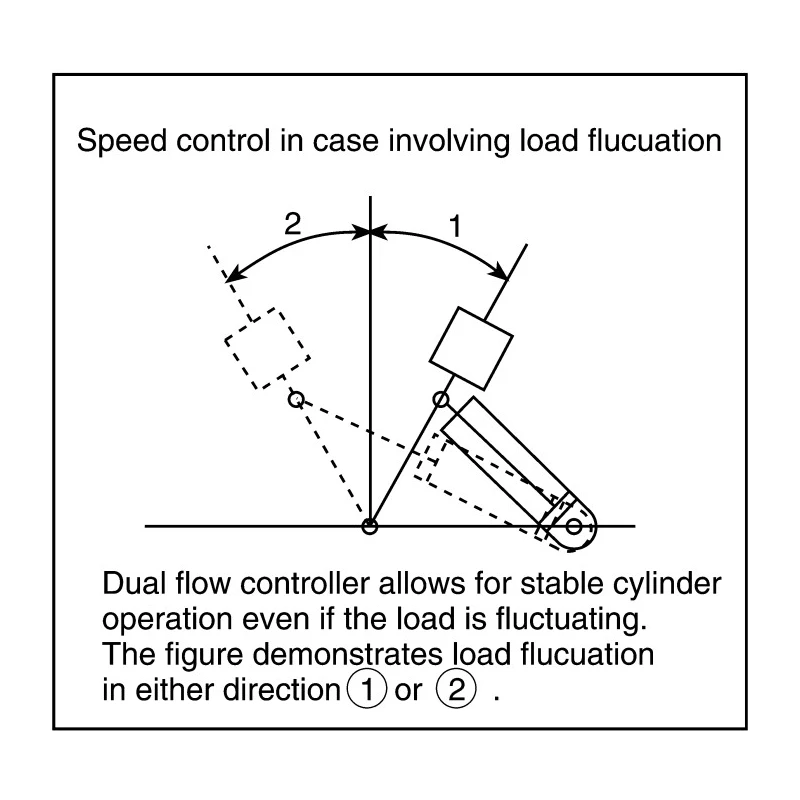

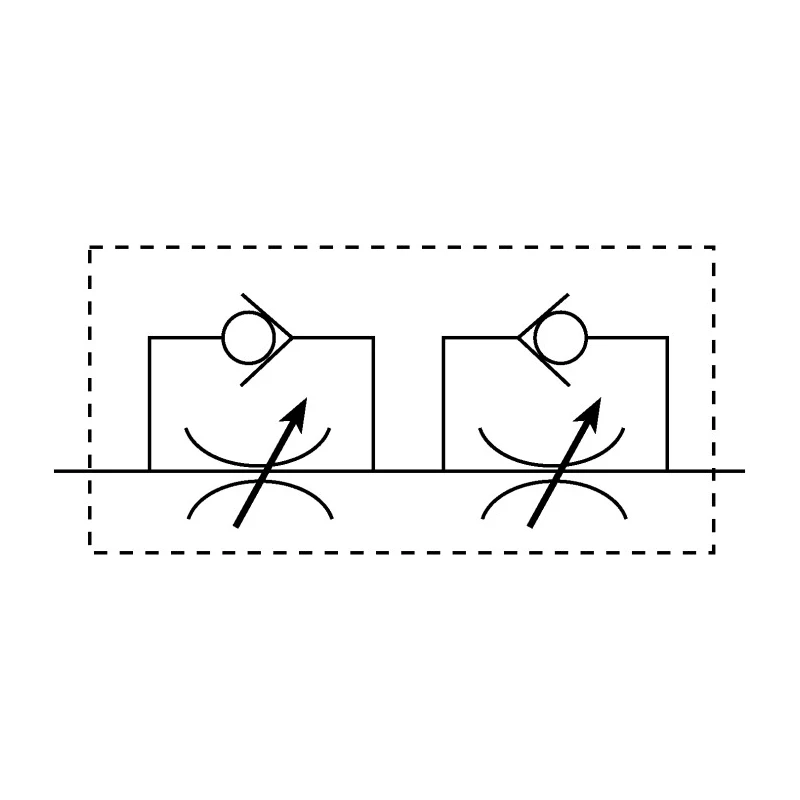

The controller incorporates two flow control valves and two check valves for dual regulation. Its meter-in and meter-out functionalities are integrated, improving control efficiency. The threaded male inlet and outlet ports conform to R thread standards for secure fittings.

Maximum operating pressure rating is 1 MPa, with proof testing up to 1.5 MPa. Designed to operate between 0°C and 60°C without performance loss. The compact size reduces installation space and pipework complexity. Enables high precision pneumatic flow control in miniature cylinder applications.

This flow controller is widely used in mechanical, fluid power, industrial automation, pneumatic control loops, manufacturing, and assembly line machinery where precise flow regulation of compressed air is required.
