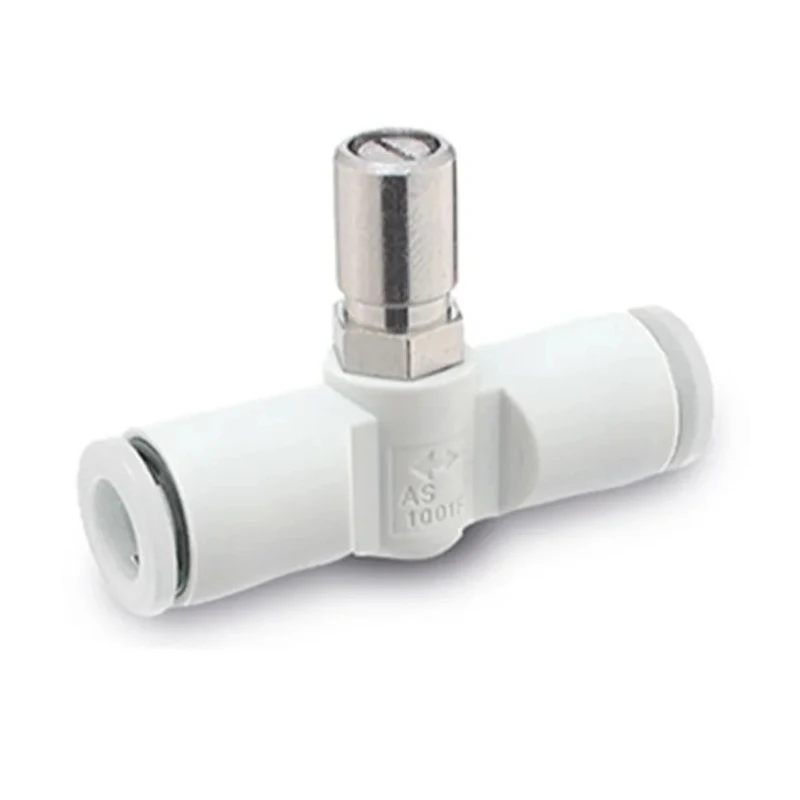

SMC AS100 Series Speed Controller Pneumatic Speed Controller with Female Inlet & Outlet

SMC AS100 Series Speed Controller model AS1001F-04D is a pneumatic speed controller featuring female inlet and outlet ports. It is engineered for regulation of air flow and pressure control within pneumatic systems, widely used in industrial automation and fluid power applications.

The controller’s body can be rotated to allow ease of installation and alignment within piping systems. It supports multiple thread sizes ranging from M3 to 1/2 inch, accommodating both inch (NPT) and metric R(PT) threads. Compatible tube outer diameters range from 3.2 mm up to 12 mm in metric units and 1/8 inch up to 1/2 inch in imperial units.

Flow adjustment is performed with a flat head screwdriver, enabling precise control over the air speed. The speed controller is constructed of robust steel, ensuring durability and resistance to wear. It operates with a maximum pressure of 1 MPa and a proof pressure rating of 1.5 MPa, suitable for demanding industrial pneumatic environments.

The product is certified for general use without hazardous area approvals and functions reliably under temperature conditions from -5°C to 60°C. One-touch fittings are included as standard, preventing accidental adjustment or disconnection during operation. The in-line flow controller design supports integration into various pneumatic circuits for industrial machinery, manufacturing, and fluid power systems.

Its compact size and rotatable body design facilitate straightforward installation and maintenance. This speed controller is ideal for applications requiring controlled actuator speeds, improving system efficiency and operational precision.

Body rotatable for simple installation and alignment. Supports thread sizes M3 to 1/2 inch including NPT and R(PT). Tube compatible sizes from 3.2 mm to 12 mm OD metric and 1/8 inch to 1/2 inch OD inch sizes. Adjustable flow rate using flat head screwdriver for precision control.

Constructed of steel material for robustness and longevity. Maximum operating pressure: 1 MPa; proof pressure: 1.5 MPa. Operating temperature range: -5°C to 60°C suitable for industrial environments. Standard one-touch fittings prevent inadvertent operation.

In-line type flow controller ideal for pneumatic systems in industrial automation.
