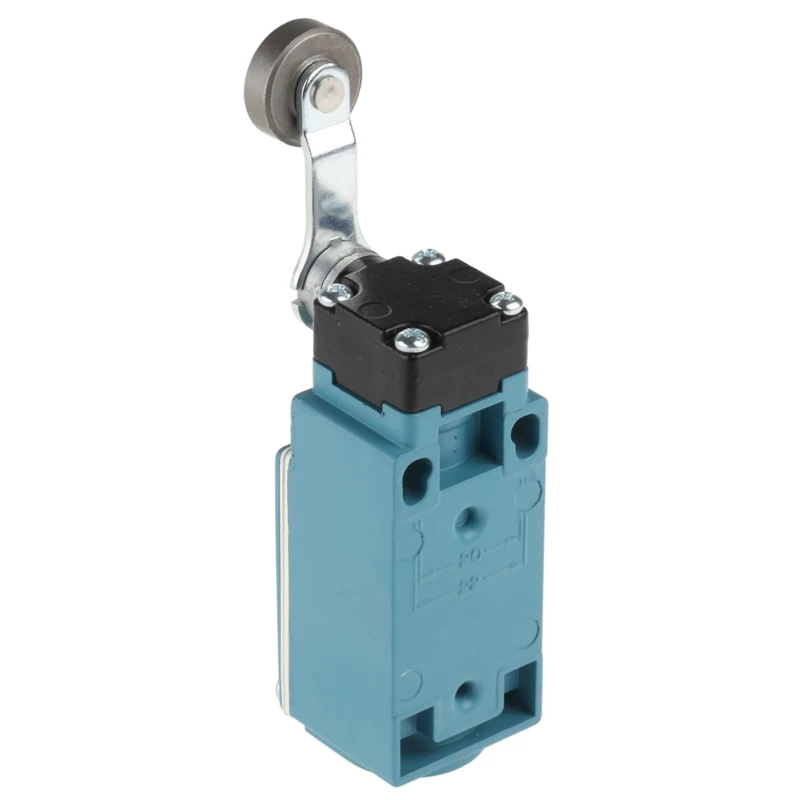

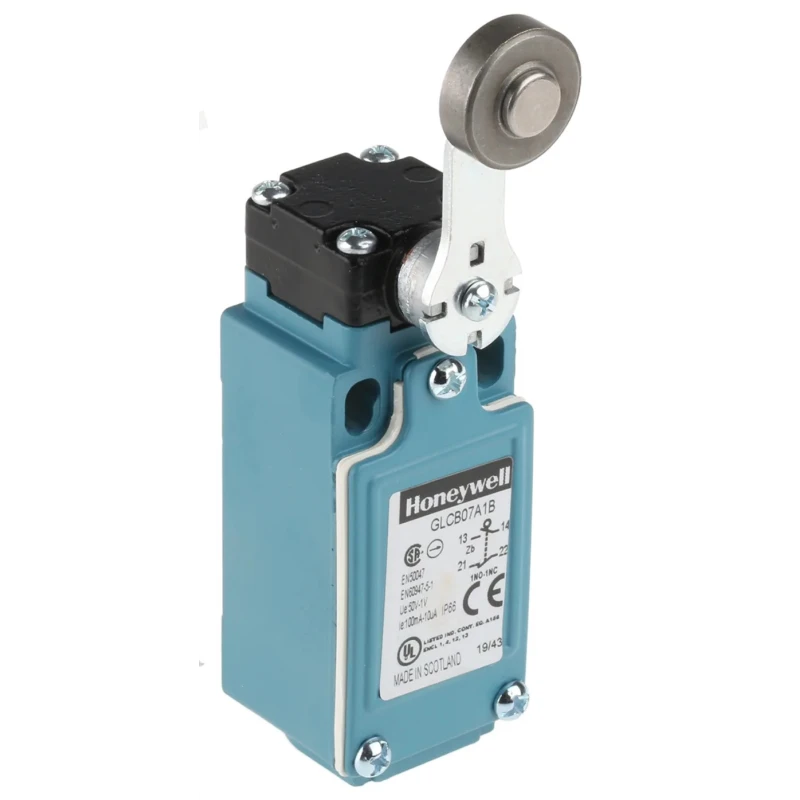

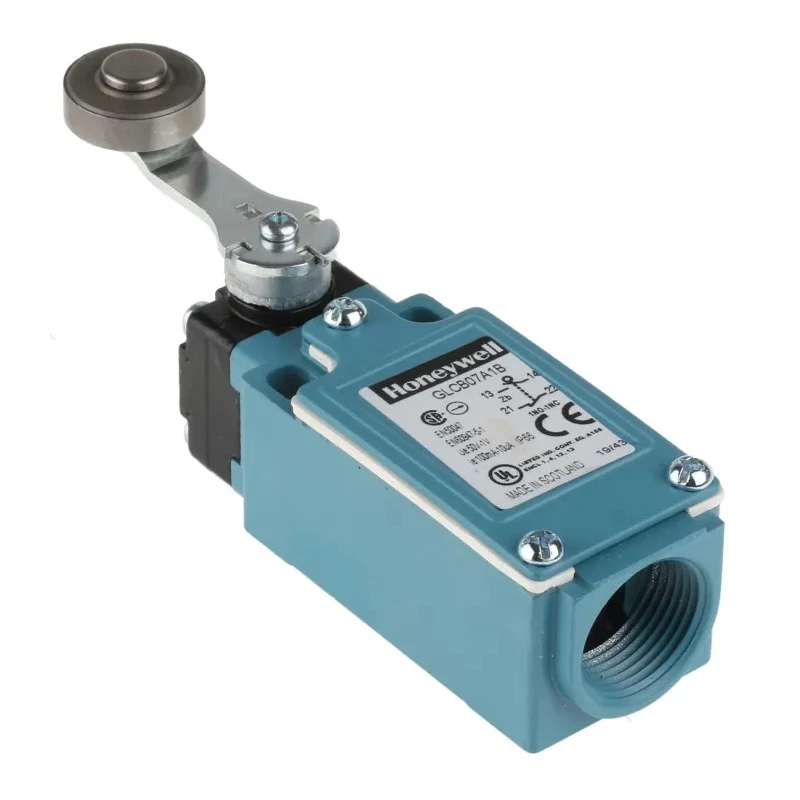

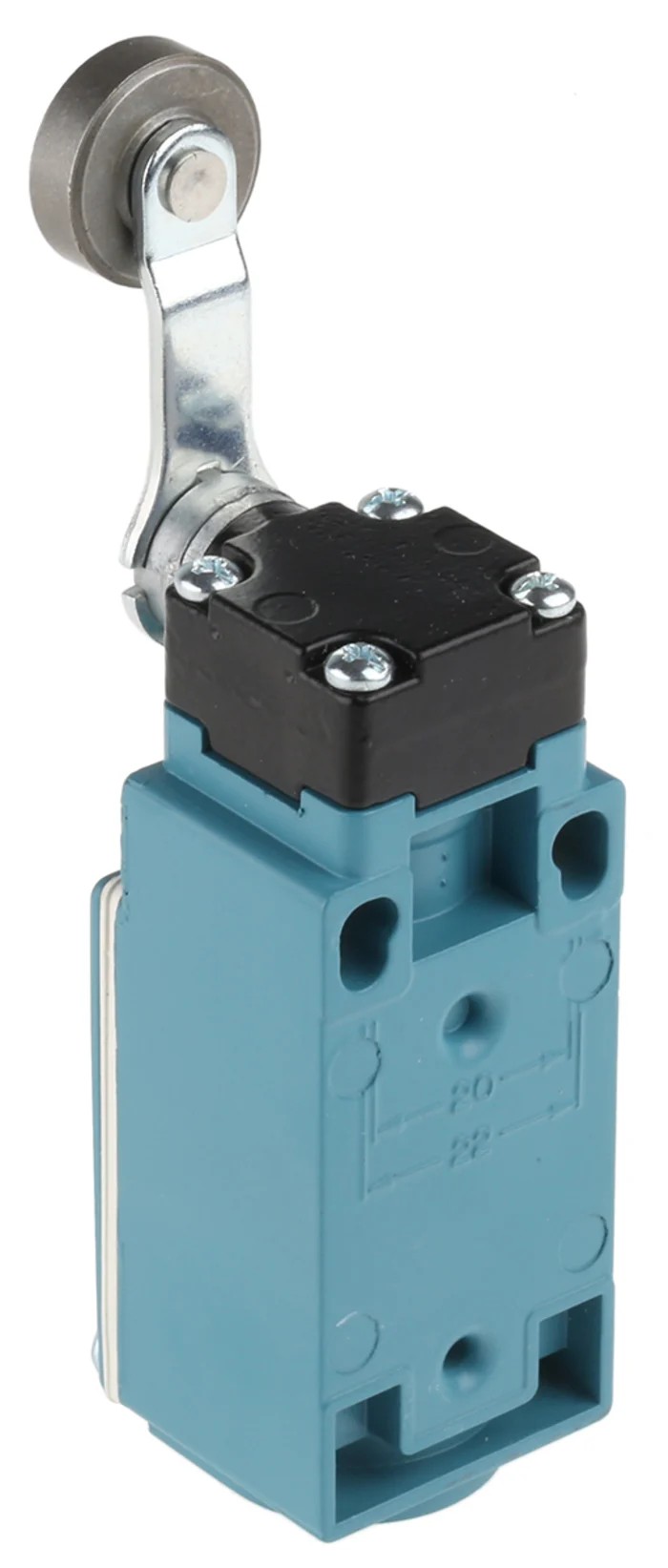

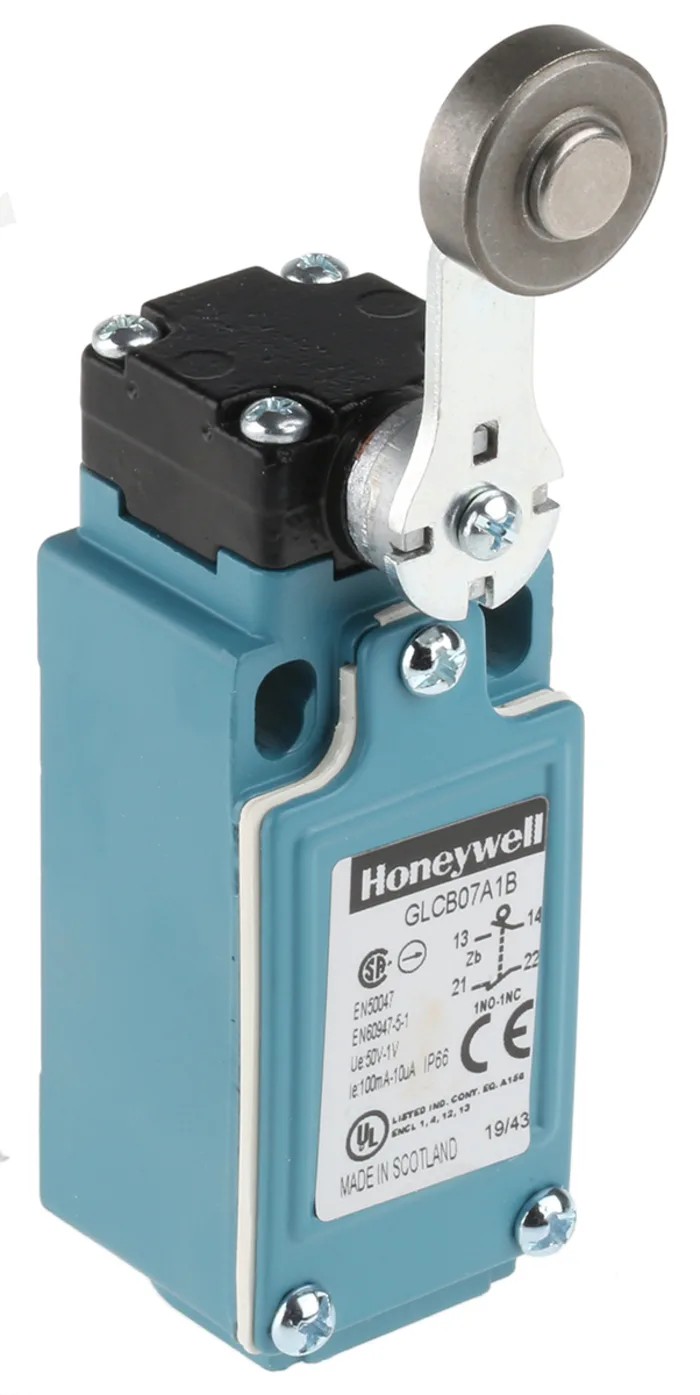

Honeywell Technologies GLC Series Roller Lever Limit Switch 1 NC/1 NO IP66 Die Cast Zinc Housing 240V AC 6A
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Honeywell Technologies |
| Length | 68.5mm |
| Model | IP66 |
| Depth | 26.35mm |
| IP Rating | IP66 |
| Width | 30.5mm |
| Housing Material | Die Cast Zinc |
| Series | GLC |
| Maximum Operating Temperature | 85°C |
| Mounting Orientation | Vertical |
| Contact Configuration | 1 NC/1 NO |
| Actuator Type | Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Standards/Approvals | UL, CE, CCC, CSA |
| Operating Force | 0.12Nm |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | PG13.5 |
Key Features
- The Snap Action contacts provide consistent and fast switching performance.
- The device supports versatile control logic with both Normally Closed (NC) and Normally Open (NO) contacts.
- Rated for a switching current of 6A at 240V AC, ideal for mains switching tasks.
- The IP66 rated enclosure protects against dust ingress and powerful water jets.
- Constructed with a durable die cast zinc housing with electrostatic epoxy coating for corrosion resistance.
- Operational temperature range from -40°C to 85°C supports extreme industrial environments.
- Designed for vertical mounting to ensure proper actuator geometry and reliable operation.
- Mechanical life expectancy of up to 10 million cycles ensures high durability.
Product Description
Honeywell Technologies GLCB07A1B is a high-performance roller lever limit switch designed for precise positional detection and circuit control in industrial automation and machine safety applications. This limit switch features a roller lever actuator and snap-action contact mechanism that ensures reliable switching even under demanding conditions.
It is rated for a switching current of 6A at 240V AC with an additional DC voltage tolerance of up to 250V DC, enabling safe and effective control in a wide array of electrical circuits. The device operates effectively in extreme temperature environments ranging from -40°C to 85°C.
The switch enclosure is IP66 rated, providing robust protection against dust and powerful water jets, making it suitable for harsh industrial settings. Its housing is constructed from die cast zinc with an electrostatic epoxy coating to resist corrosion and wear, extending the service life of the product.
Mechanical endurance is outstanding, with an expected 10 million operational cycles, supporting long service intervals. The unit features a PG13.5 conduit entry for secure and sealed cable installation, ensuring safe wiring in industrial environments. It is engineered for vertical mounting to optimize actuator movement and maintain accurate switching performance.
This limit switch finds application in conveyor end-of-travel detection, packaging and assembly machinery limit sensing, motor starter safety interlocks, position feedback in automated gates and doors, and actuator end-stop detection in material handling systems. It complies with standards IEC/EN 60947-5-1 and EN50047, emphasizing its suitability for industrial control circuits.
The Snap Action contacts provide consistent and fast switching performance. Supports 1 Normally Closed (NC) and 1 Normally Open (NO) contact configuration. Rated for 6A switching current at 240V AC. IP66 rated die cast zinc housing with epoxy coating for durability.
Mechanical life of up to 10 million cycles for extended reliability. Operational temperature range from -40°C to 85°C. Vertical mounting orientation for optimal actuator function. PG13.5 conduit entry for secure cable fitting.
Explore our extensive catalog of Limit Switches and industrial automation controls at EnvMart for reliable and high-quality products designed to enhance your manufacturing and safety operations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a switching current of 6A at 240V AC, with a DC voltage tolerance of up to 250V DC.
This limit switch operates effectively in temperatures ranging from -40°C to 85°C.

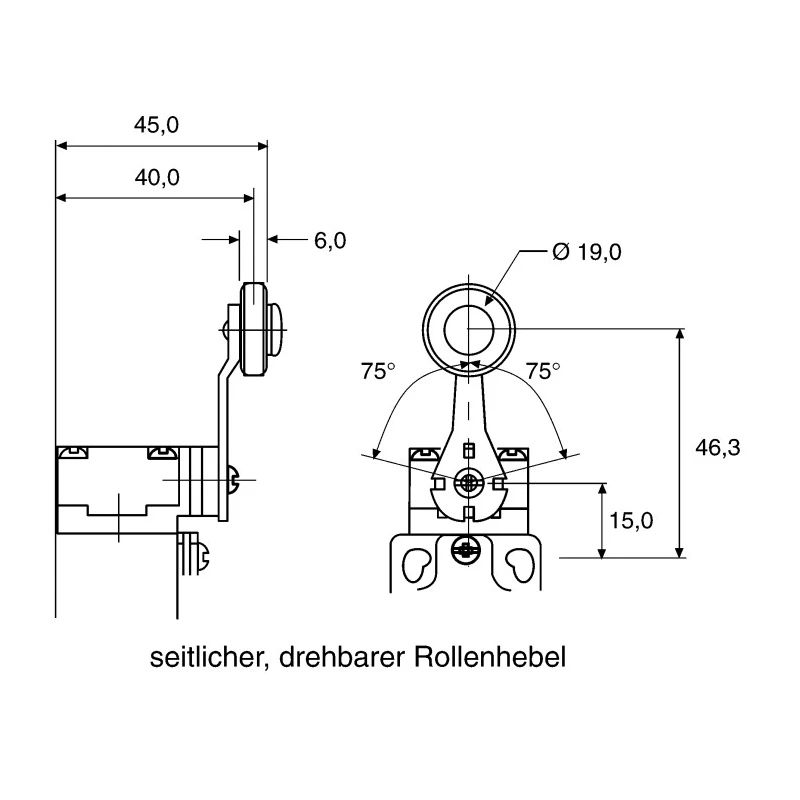

It features a roller lever actuator for precise positional detection and circuit control.
The enclosure is rated IP66, providing protection against dust ingress and powerful water jets.

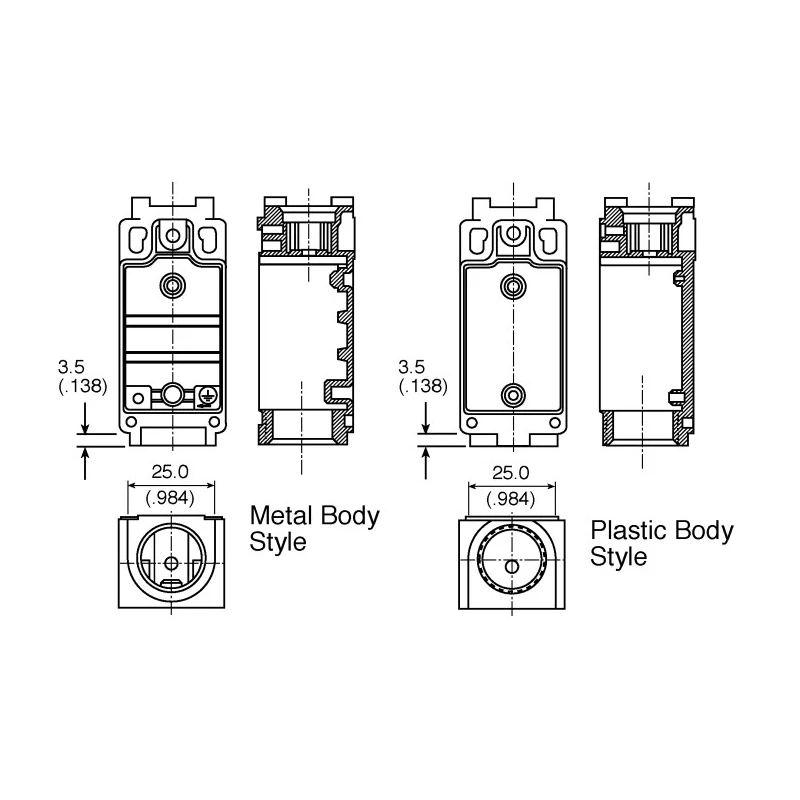

The dimensions are 68.5mm in length, 30.5mm in width, and 26.35mm in depth.
It has a mechanical life expectancy of up to 10 million cycles.
It supports a contact configuration of 1 Normally Closed (NC) and 1 Normally Open (NO) contact.
It complies with standards IEC/EN 60947-5-1 and EN50047.
The housing is constructed from die cast zinc with an electrostatic epoxy coating for corrosion resistance.
It is designed for vertical mounting to ensure proper actuator geometry and reliable operation.
The operating force required is 0.12Nm.
It utilizes a snap-action contact mechanism for consistent and fast switching performance.
