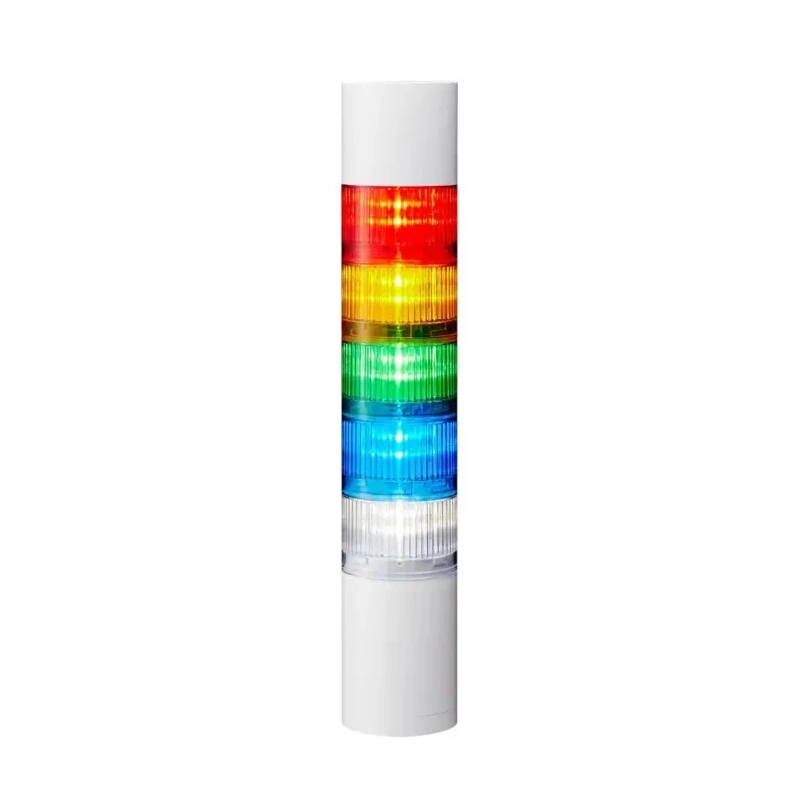

Patlite LR6 Series White, Red, Green, Clear, Blue, Amber Signal Tower Buzzer, 5 Lights, 24V DC Direct Mount LR6-502WJBW-RYGBC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 333.5mm |
| Model | LR6-502WJBW-RYGBC |
| IP Rating | IP65 |
| Mount Type | Direct Mount |
| Bulb Type | LED |
| Series | LR6 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 45mA |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 60mm |
| Terminal type | Terminal Block |
| Lens Colour | White, Red, Green, Clear, Blue, Amber |
| Standards/Approvals | UL 508, CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4,EN 61000-6-2), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4,KN 61000-6-2), RoHS Directive (EN 50581) |
| Maximum Supply Voltage | 24V |
| Housing Colour | Off-White |
| Light Effect | Flashing |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Sound Level at 1m | 88dB |
| Maximum Sound Level | 90dB |
| Number of Light Elements | 5 |
| Connection Cable Length | 1.3m |
| Four mounting options | Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket |
Key Features
- Equipped with five distinctly coloured LED light elements for enhanced visibility.
- Features a buzzer sounder with a minimum sound level of 85 dB and maximum of 90 dB.
- Constructed with a durable off-white housing and IP65 rating for water and dust resistance.
- Operates within a temperature range of -20°C to 50°C for varied environmental applications.
- Includes a 1.3 meter connection cable and terminal block for secure electrical connections.
- Modular 'Twist and Lock' system allows easy customization and configuration in the field.
- Complies with UL 508, CSA-C22.2 No. 14, EMC Directive, FCC, KC, and RoHS standards.
- Designed for industrial automation signalling and control applications.
Product Description
Patlite LR6-502WJBW-RYGBC signal tower buzzer is an advanced industrial signalling device incorporating five LED lights in white, red, green, clear, blue, and amber hues, designed for 24V DC operation with a direct mount system.
This signal tower features bright, flashing LED bulbs optimized for clear visual alerts across various industrial and manufacturing environments. The integrated buzzer provides an omni-directional sound with sound levels ranging from 85 dB minimum to 90 dB maximum, ensuring audible warning signals over ambient noise.
Engineered with a robust, off-white housing rated to IP65, this unit offers superior dust and water ingress protection suitable for harsh environmental conditions. It operates reliably in temperatures between -20°C and 50°C, making it versatile for diverse operational settings.
The product includes a 1.3 meter connection cable and terminal block type connectors for secure and straightforward wiring. The modular 'Twist and Lock' construction facilitates on-site customization and quick maintenance without specialized tools.
Compliant with multiple international standards including UL 508, CSA, EMC Directive, FCC DSS Class A, KC, and RoHS, the LR6 series ensures reliable and certified performance for safety and regulatory adherence.
Mounting versatility is achieved through four options: direct mount, pole mounting with L-bracket, circular bracket, or folding bracket, enhancing installation flexibility in industrial automation, factory machinery signalling, water treatment, and HVAC control systems.
Equipped with five LED light elements of varied colors. Buzzer produces high-level sound alerting. IP65 rated housing for water and dust protection. Wide operating temperature range for various environments. Modular twist and lock system for easy field configuration.
Complies with relevant international standards and directives. Multiple mounting options for flexible installation.
This signal tower model is essential for industrial safety and process management, providing clear visual and audible alerts. Explore the range of Patlite LR6 series Signal Towers and accessories on EnvMart for all your automation signalling requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 50°C.
This signal tower has an IP65 rating, providing protection against dust and water ingress.
It is equipped with five light elements in various colors: white, red, green, clear, blue, and amber.
The buzzer produces sound levels ranging from a minimum of 85 dB to a maximum of 90 dB.
It includes a terminal block for secure electrical connections and comes with a 1.3 meter connection cable.
This model offers four mounting options: direct mount, pole mounting with L-bracket, circular bracket, or folding bracket.
The current consumption for this signal tower is 45mA.
The minimum operating temperature is -20°C, allowing it to function in a wide range of environments.
It complies with UL 508, CSA-C22.2 No. 14, the EMC Directive, FCC, KC, and RoHS standards.
This model uses LED bulbs for its light elements, providing bright and efficient illumination.
The height of this signal tower is 333.5 mm.
The housing color of this unit is off-white.
