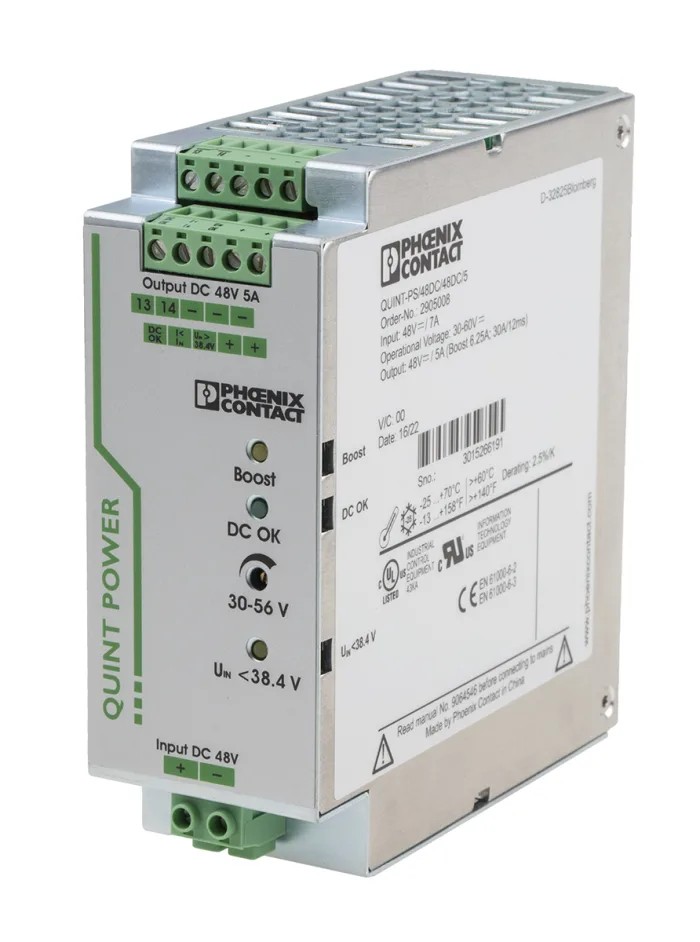

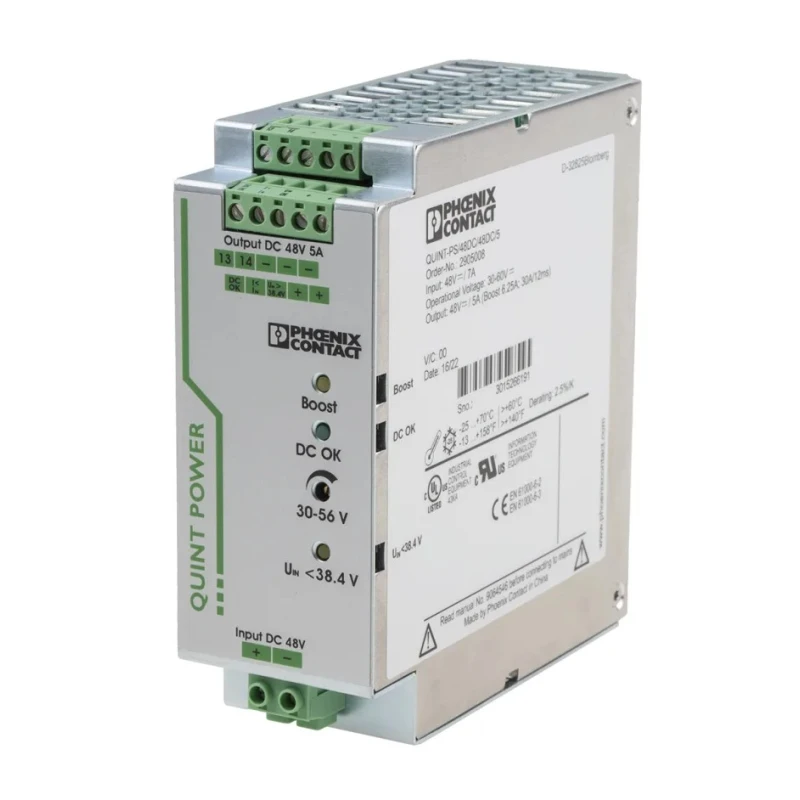

Phoenix Contact QUINT-PS/48DC/48DC/5 DC/DC Converter 30V 56V 5A 60V DC Input 48V DC Input DIN Rail 20W 70°C 2905008

Phoenix Contact 2905008 DC/DC Converter QUINT-PS/48DC/48DC/5 is engineered for industrial, manufacturing, and automation applications requiring stable and isolated DC voltage transformation. This unit efficiently converts input voltages from 48 V to 60 V DC into outputs at 30 V or 56 V DC with a maximum output current of 5 A and power capability of 20 W.

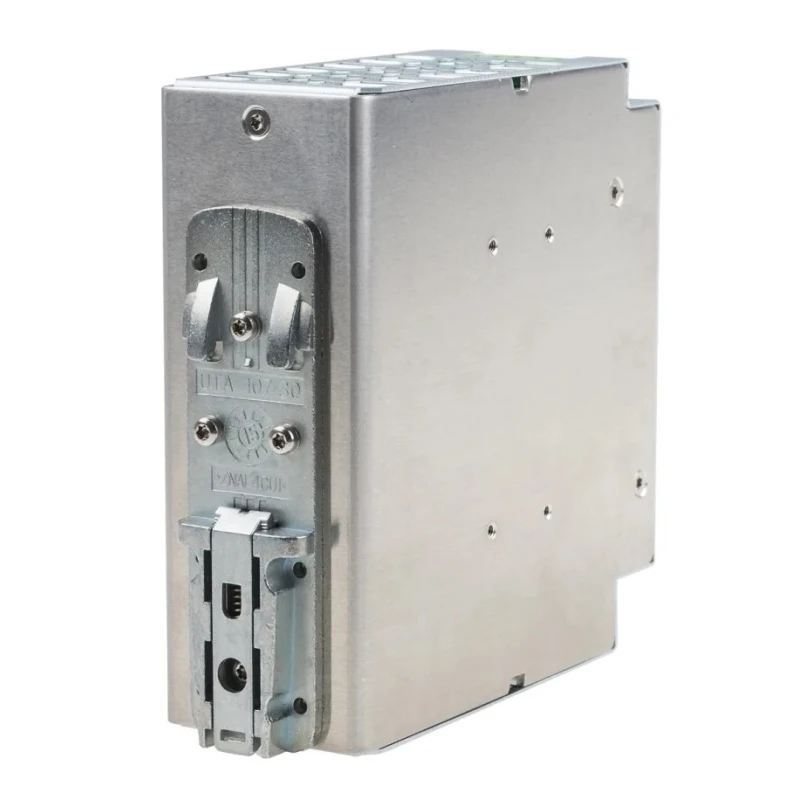

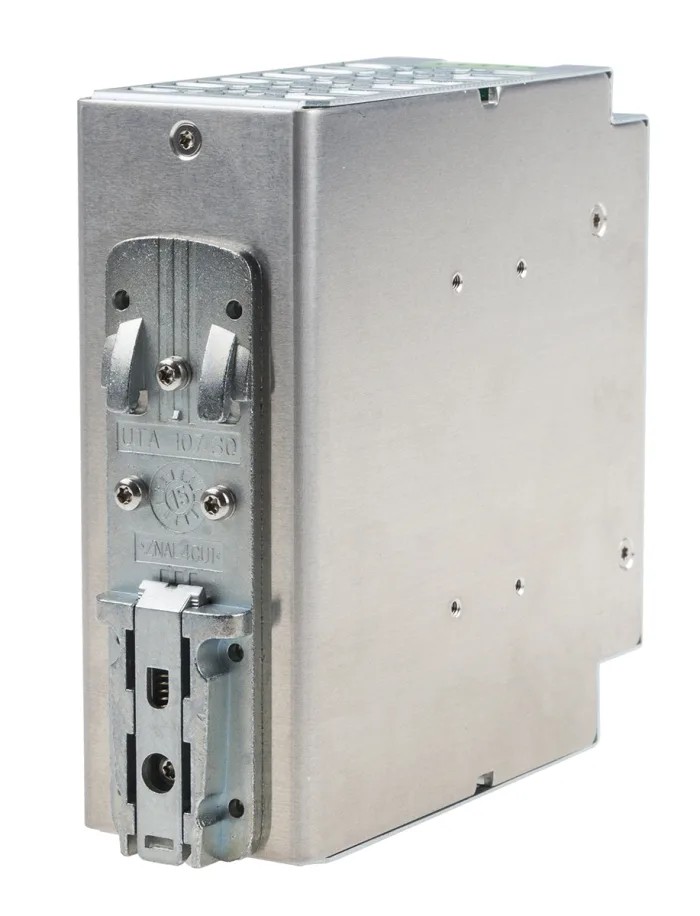

Its DIN rail mounting system provides secure installation within electrical cabinets and enclosures. It features a high isolation voltage of 1.5 kV DC, ensuring electrical isolation for independent supply circuits, crucial in preventing interference and ensuring system safety. The converter maintains a low output ripple and noise of 20 mV peak-to-peak, safeguarding sensitive equipment downstream.

This device offers a robust and compact design measuring 48 mm in length, 125 mm in width, and 130 mm in depth, weighing a manageable 1.12 kg. It meets stringent quality and safety approvals including EAC, cULus, cUL, and UL, guaranteeing reliable operation in harsh industrial environments with ambient temperatures up to 70 degrees Celsius.

Additional features of the QUINT-PS/48DC/48DC/5 include a static POWER BOOST reserve allowing reliable starting of difficult loads and preventive function monitoring to indicate critical operating conditions before failure, thus enhancing system availability and protection. Its magnetic trip characteristic supports selective and cost-effective system protection through circuit breakers.

This DC/DC converter is ideal for use in industrial automation, control systems, manufacturing lines, and energy management setups where stable power supply and electrical isolation are critical. It is manufactured to high standards and originates from China.

Output voltages of 30 V and 56 V DC for flexible power supply. Input voltage capability from 48 V up to 60 V DC. Output current rating of 5 A with 20 W maximum power output. DIN rail mounting for easy installation. Isolation voltage rated at 1.5 kV DC to prevent electrical noise and breakdown.

Low ripple noise output at 20 mV peak-to-peak. Compact dimensions: 48 mm (L) x 125 mm (W) x 130 mm (D). Weight of 1.12 kg for ease of handling. Standards compliant: EAC, cULus, cUL, UL certified. Operational temperature rating up to 70 °C.

For reliable and efficient DC voltage conversion solutions, explore the full range of Phoenix Contact converters on EnvMart. Enhance your control system capabilities with industry-leading power conversion technology.
