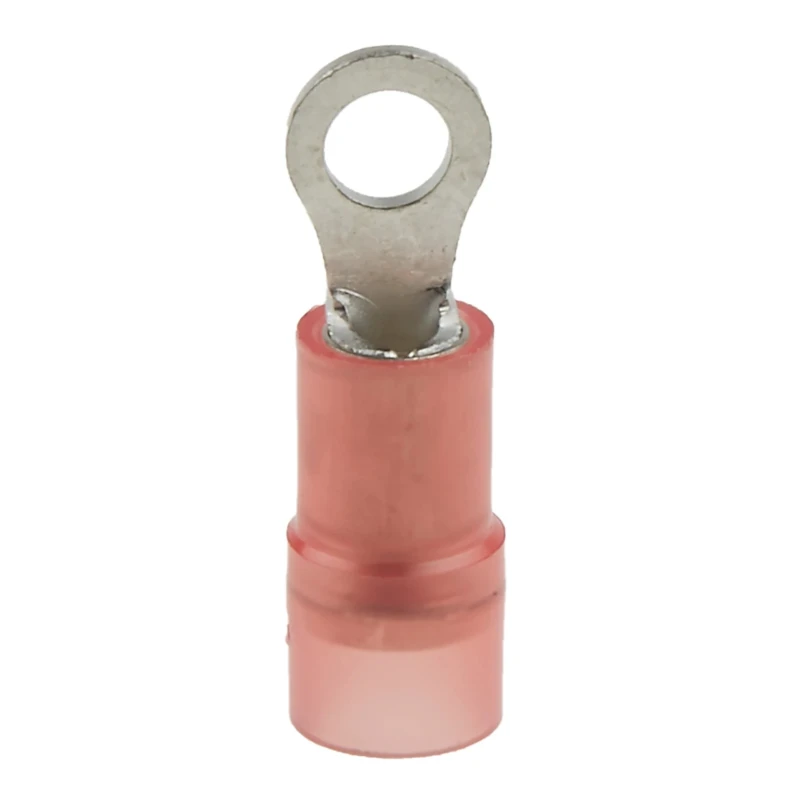

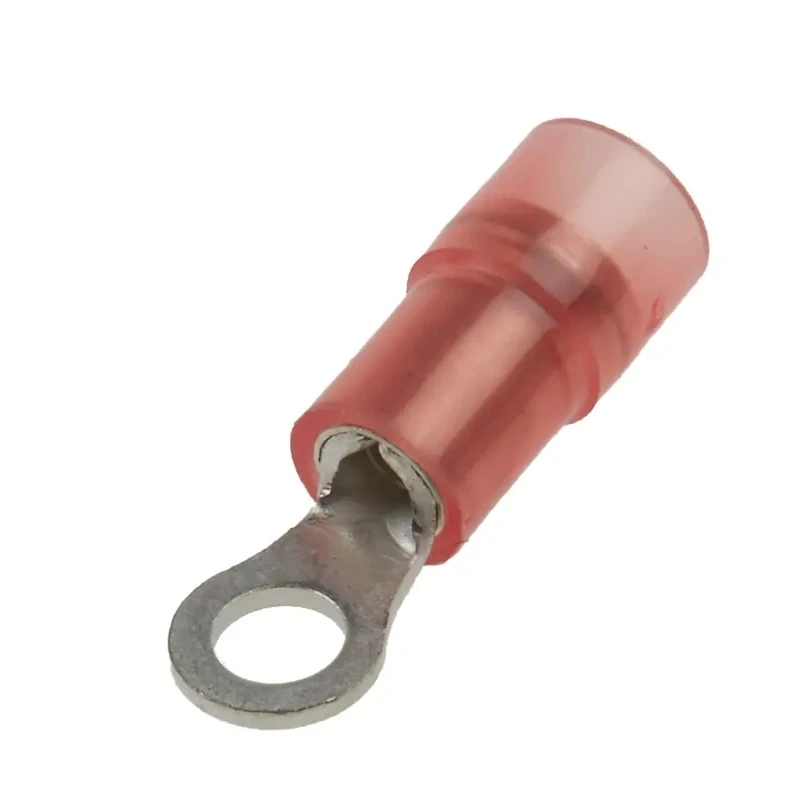

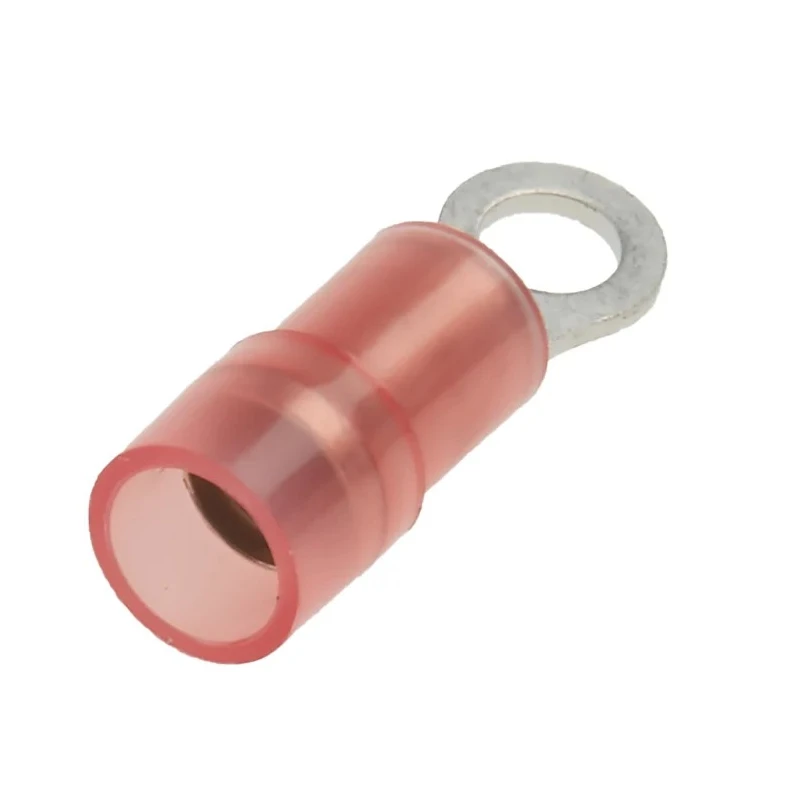

RS PRO Insulated Ring Terminal M3 Stud Size 22 AWG to 16 AWG Wire Size Red Nylon Insulation E245391 267-3650
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.75mm |
| Model | 267-3650 |
| Insulation | Insulated |
| Overall Length | 18.5mm |
| Contact Material | Copper |
| Series | E245391 |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.5mm |
| Inner Ring Diameter | 3.2mm |
| Stud Size | M3 |
Key Features
- Constructed from highly conductive copper for reliable electrical performance.
- Tin plating offers corrosion resistance and enhanced conductivity.
- Double crimp design with internal copper sleeve ensures robust and secure crimps.
- Nylon insulation provides abrasion, impact, and fatigue resistance.
- Colour-coded red insulation simplifies terminal size identification.
- Designed for maximum operating temperature of 105°C suitable for industrial applications.
- Overall length of 18.5mm and 0.75mm thickness for compact installation.
- Compatible with M3 stud and wire sizes 22 AWG to 16 AWG (0.5 to 1.5 mm²).
Product Description
RS PRO 267-3650 insulated ring terminal is a high-quality electrical connector designed for secure wire-to-stud connections in industrial, automotive, and electrical control systems. This ring terminal features a copper body with tin plating for excellent conductivity and resistance to corrosion, ensuring long-term electrical reliability.
Its double crimp construction includes an internal copper sleeve that strengthens the barrel and provides a robust crimp joint, reducing wire stress and vibration-related failures. The red nylon insulation offers durable electrical insulation, protection against abrasion and impact, and aids quick size identification.
The terminal supports M3 stud sizes and wire gauges from 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²), making it versatile for wiring in communication equipment, power supplies, industrial machines, and domestic appliances. The 18.5mm overall length and 0.75mm thickness ensure compact and efficient installation in tight spaces.
This ring terminal operates within a temperature range of -40°C to 105°C, suitable for demanding industrial environments. The flared insulation facilitates easy wire insertion and crimping process.
Constructed from highly conductive copper for reliable electrical performance. Tin plating offers corrosion resistance and enhanced conductivity. Double crimp design with internal copper sleeve ensures robust and secure crimps.
Nylon insulation provides abrasion, impact, and fatigue resistance. Colour-coded red insulation simplifies terminal size identification. Designed for maximum operating temperature of 105°C suitable for industrial applications.
Overall length of 18.5mm and 0.75mm thickness for compact installation. Compatible with M3 stud and wire sizes 22 AWG to 16 AWG (0.5 to 1.5 mm²).
RS PRO insulated ring terminals are ideal in industrial control systems, automotive wiring harnesses, power supplies, communication devices, and household appliance connections where vibration resistance and electrical integrity are critical.
Explore a wide range of RS PRO connectors and terminals in EnvMart's Electronics Components category for reliable industrial and electrical solutions.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal is compatible with wire sizes ranging from 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²).
The maximum operating temperature for this model is 105°C, making it suitable for industrial applications.
It is constructed from highly conductive copper with tin plating for corrosion resistance, and features nylon insulation for electrical protection.
The overall length of this terminal is 18.5mm, and it has a thickness of 0.75mm.
This ring terminal is designed to fit M3 stud sizes.
The minimum operating temperature for this terminal is -40°C.
It features nylon insulation, which provides abrasion, impact, and fatigue resistance.
The double crimp design with an internal copper sleeve ensures robust and secure crimps, reducing wire stress and vibration-related failures.
The inner ring diameter is 3.2mm, and the outer ring diameter is 5.5mm.
This model is suitable for use in industrial control systems, automotive wiring harnesses, power supplies, communication devices, and household appliance connections.
The red nylon insulation simplifies terminal size identification, making it easier to select the correct size during installation.
The contact material used in this terminal is copper, which provides reliable electrical performance.
