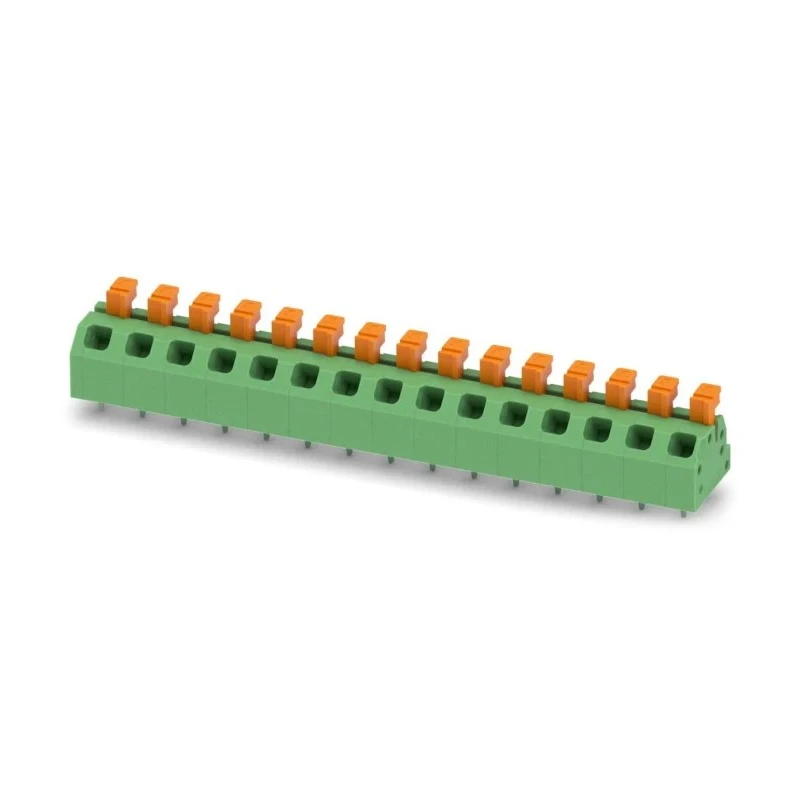

Phoenix Contact Angled PCB Terminal Block 15 Contacts 5 mm Pitch 2 Row Polyamide Housing 320V 13.5A 1864561
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 13.5A |
| Model | 1864561 |
| Housing Material | Polyamide |
| Series | SPTAF 1/15-5.0-LL |
| Number of Rows | 2 |
| Pitch | 5mm |
| Standards/Approvals | UL Recognised, cULus Recognised, EU RoHS |
| Number of Contacts | 15 |
| PCB Terminal block, nominal current | 13.5 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 15, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Constructed with durable polyamide housing for enhanced insulation and mechanical strength.
- Rated for nominal current of 13.5 A and voltage of 320 V, suitable for various electronic applications.
- Features push-in spring connection allowing quick and tool-free wiring.
- Mounting by wave soldering with conductor/PCB connection direction at 45° for angled installation.
- Compact design with green color and integrated test option for easy maintenance and diagnostics.
- Complies with UL Recognised, cULus Recognised and EU RoHS standards ensuring quality and safety.
- Offers stable long-term contact force to ensure reliable electrical performance.
- Finger-operated, fixable release button enables convenient and safe disconnection.
Product Description
Phoenix Contact 1864561 angled PCB terminal block is engineered for industrial and electronics applications requiring secure and compact connections. Featuring a 5 mm pitch and 15 contact points arranged in 2 rows, this terminal block is designed to support currents up to 13.5 amperes and voltages up to 320 volts, ensuring robust electrical performance.
The terminal block housing is made from polyamide, providing excellent insulation capabilities and mechanical resistance in demanding environments. Its push-in spring connection technology allows for fast, tool-free wiring, enhancing installation efficiency and reducing maintenance times.
The device is mounted using wave soldering techniques, with a conductor/PCB connection direction set at a 45° angle suitable for angled PCB configurations. The compact green component has an integrated testing option, facilitating onsite diagnostics and preventive maintenance.
Designed with user convenience in mind, it includes a finger-operated release button which can be fixed in position to ensure safe and simple operation during circuit modifications.
This Phoenix Contact terminal block complies with international safety and environmental standards including UL Recognized, cULus Recognized, and EU RoHS certifications, assuring compliance and sustainability.
Durable polyamide housing for insulation and strength. Push-in spring connection for tool-free wiring. Compact 15 contact, 2 row angled design. Supports 13.5 A current and 320 V voltage. Wave solder mounting and 45° connection angle.
Integrated test option for easy diagnostics. Finger-operated, fixable release button. Complies with UL, cULus, and RoHS standards.
This angled PCB Terminal Block is suitable for industrial, electronic, electrical, and manufacturing applications where reliable PCB connections and compact layout are critical. It is ideal for controlling power distribution, signal transmission, and interface connections within circuit assemblies and control panels.
Explore more Phoenix Contact products and related PCB component solutions on EnvMart to find the best fit for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a nominal voltage of 320 V.
This model supports a nominal current of 13.5 A.
The terminal block features 15 contacts arranged in 2 rows.
It has a pitch size of 5 mm.
The housing is constructed from polyamide, providing enhanced insulation and mechanical strength.
It is designed for wave soldering, with a conductor/PCB connection direction at a 45° angle.
Yes, it includes an integrated test option for easy diagnostics and maintenance.
It utilizes a push-in spring connection method for tool-free wiring.
It complies with UL Recognised, cULus Recognised, and EU RoHS standards.
This model is designed with an angled orientation.
The country of origin for this terminal block is Germany.
It belongs to the SPTAF 1/15-5.0-LL series.
