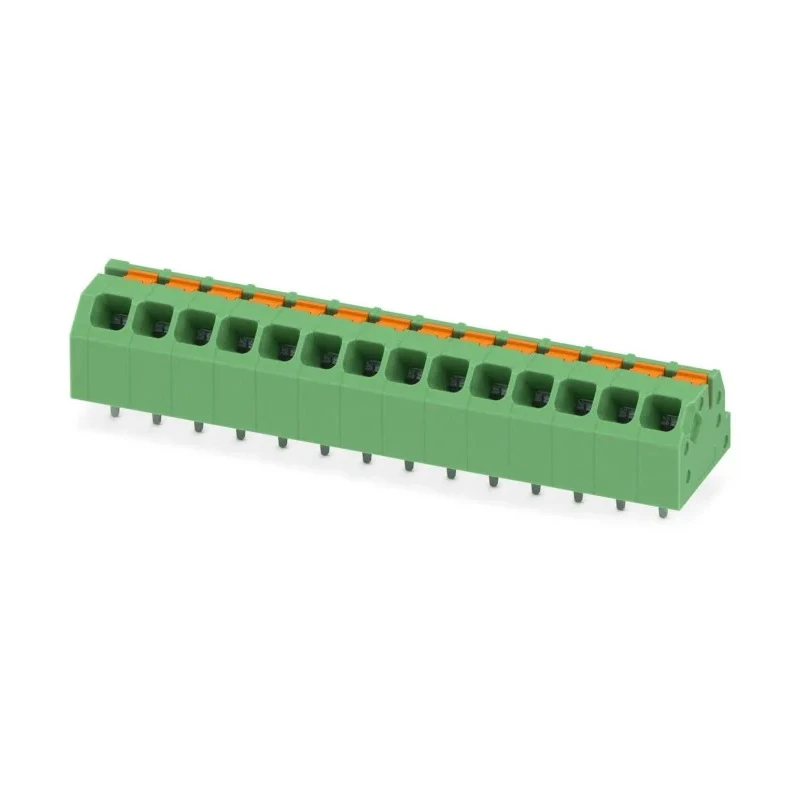

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block 14 Contacts 3.5 mm Pitch 160 V 16 A 1862204
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862204 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/14-3.5-IL |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Standards/Approvals | cULus Recognised, EU RoHS |
| Number of Contacts | 14 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 14, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Features push-in spring connection for secure and tool-free wiring.
- Compact design with angled conductor/PCB connection at 45 degrees to save space.
- Constructed with durable polyamide housing in green color for easy identification.
- Integrated test option allows quick and convenient testing without disassembly.
- Certified with cULus recognition and compliant with EU RoHS standards.
- Designed to ensure defined contact force for long-term stable connections.
- Suitable for wave soldering mounting on PCBs for reliable industrial and electronics applications.
- Originates from Germany reflecting high manufacturing quality.
Product Description
Phoenix Contact 1862204 is an angled wave soldering mount PCB Terminal Block designed for reliable electrical connections in industrial and electronic equipment. This terminal block features 14 contact positions with a 3.5 mm pitch, supporting a nominal current of 16 A and a voltage rating of 160 V. Its push-in spring connection technology simplifies wiring by eliminating the need for tools, while maintaining defined and stable contact force for secure connections over time.
The terminal block's polyamide housing provides excellent durability and electrical insulation, colored green for easy visual identification. The angled conductor to PCB connection at 45 degrees optimizes space usage on densely populated PCB assemblies. Additionally, an integrated test option offers convenient testing capabilities without disassembly, improving maintenance efficiency.
This product is cULus recognized and fully compliant with EU RoHS standards, affirming its safety and environmental compliance. Manufactured in Germany, it embodies high-quality construction suitable for demanding industrial, electronics manufacturing, HVAC, and automation system applications.
With wave soldering mounting compatibility, the 1862204 terminal block ensures a reliable and time-efficient assembly process. It is ideal for use in control cabinets, electronic devices, and other industrial automation installations that require robust and compact terminal solutions.
Features push-in spring connection for secure and tool-free wiring. Compact design with angled conductor/PCB connection at 45 degrees to save space. Constructed with durable polyamide housing in green color for easy identification.
Integrated test option allows quick and convenient testing without disassembly. Certified with cULus recognition and compliant with EU RoHS standards. Designed to ensure defined contact force for long-term stable connections.
Suitable for wave soldering mounting on PCBs for reliable industrial and electronics applications. Originates from Germany reflecting high manufacturing quality. Explore more electronic components and PCB accessories at EnvMart to complement your industrial or manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a voltage rating of 160 V and a nominal current rating of 16 A.
It features 14 contact positions.
The pitch of this terminal block is 3.5 mm.
It utilizes a push-in spring connection method for secure and tool-free wiring.
This terminal block is designed for wave soldering mounting on PCBs.
The housing is constructed from durable polyamide material.
The conductor connection is angled at 45 degrees to the PCB.
It is cULus recognized and compliant with EU RoHS standards.
This product originates from Germany.
Yes, it includes an integrated test option for convenient testing without disassembly.
This terminal block has 2 rows.
It belongs to the SPTAF 1/14-3.5-IL series.
