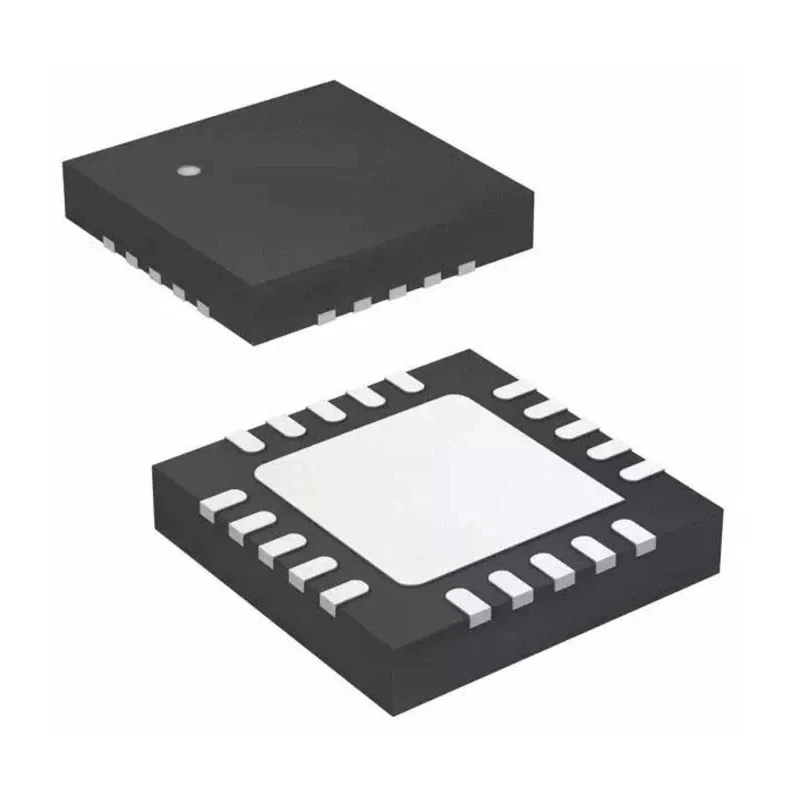

Microchip 8-Bit AVR ATTINY1616 Microcontroller 20 MHz 16kB FLASH 20-Pin VQFN ATTINY1616

Microchip ATTINY1616 is an advanced 8-bit AVR microcontroller designed for efficient embedded applications. It features a 20 MHz maximum clock frequency and a 16kB FLASH program memory providing robust performance for various control systems and IoT devices.

This microcontroller integrates 2kB of RAM and 128 bytes of EEPROM, enabling ample volatile and non-volatile data storage. It comes housed in a compact 20-Pin VQFN surface-mount package measuring 3mm by 3mm with a height of 0.85mm, ideal for space-constrained designs.

The device operates across a wide voltage range from 1.8V to 5.5V, accommodating diverse power supply scenarios with enhanced flexibility. Featuring a RISC architecture AVR core, it delivers optimized instruction execution and power efficiency.

Notable integrated peripherals include 3 analogue comparators, a 12-channel 10-bit ADC with voltage reference, and an 8-bit digital-to-analog converter, enabling accurate analog signal processing for industrial, automotive, and consumer electronics applications.

The microcontroller supports four timers and waveform measurement control, facilitating advanced timing, waveform generation, and measurement tasks. Single-pin UPDI programming and debugging simplify device development and maintenance.

Operating temperature ranges from -40°C to 105°C, ensuring reliable operation in industrial and harsh environmental conditions. The FLASH memory type allows in-system programming and reliable non-volatile code storage.

This microcontroller is manufactured in the United States, offering compliance with rigorous manufacturing standards. Features an 8-bit AVR core with RISC architecture for efficient processing. Includes 2kB RAM and 128 bytes EEPROM for data storage.

Operates within voltage range of 1.8V to 5.5V for flexible power supply. Equipped with 3 analogue comparators and 20 channels of 10-bit ADCs for precision analog measurements. Four timers provide robust timing and waveform control capabilities.

Compact 3mm x 3mm x 0.85mm VQFN surface mount package enables space-saving PCB designs. Supports single-pin programming and debugging via UPDI interface. Operating temperature ranges from -40°C to 105°C making it suitable for harsh environments.

Program memory uses FLASH memory type with a maximum clock frequency of 20 MHz.

Ideal for embedded control, industrial automation, consumer electronics, and automotive applications, the Microchip ATTINY1616 provides versatile features in a compact and efficient microcontroller package. Explore other Microcontrollers and semiconductor components on EnvMart for your design needs.
