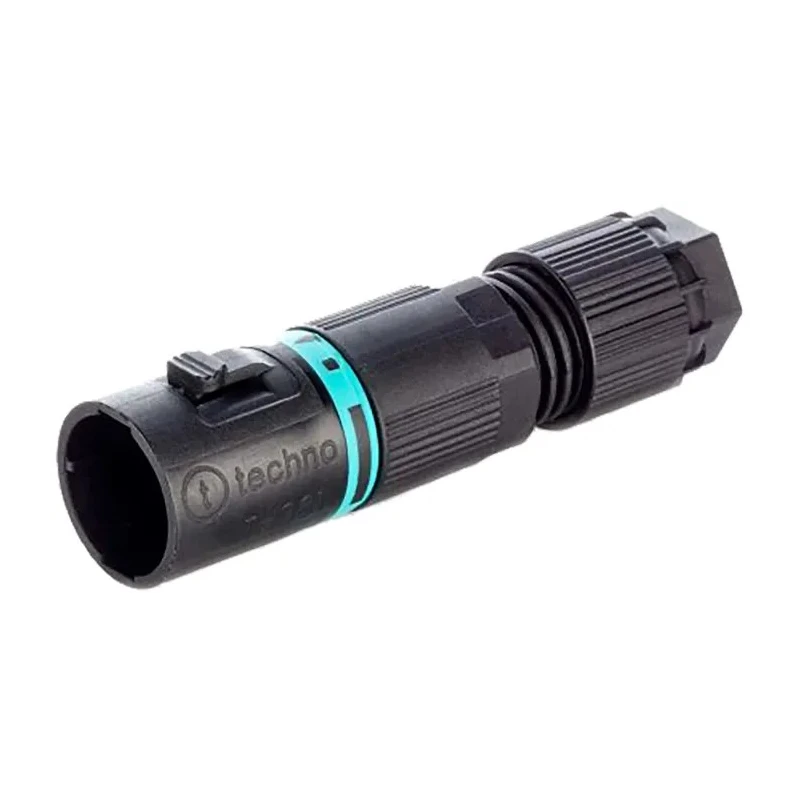

RS PRO TeePlug Series Cable Tee Plug Male Screw 2-Pole 10A 400V 1-Way IP68 136-9894
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 400V |
| Diameter | 14mm |
| Brand | RS PRO |
| Colour | Black |
| Model | 136-9894 |
| IP Rating | IP68 |
| Number Of Ways | 1 |
| Mount Type | Cable |
| Contact Material | Brass |
| Series | TeePlug |
| Termination Type | Screw |
| Sub Type | Tee Plug |
| Wire size | 7, 8mm |
| Pole Format | 2 |
| Contact Plating | Silver |
| Contact Gender | Male |
| Connector Gender | Male |
| Lighting Connector Current | 10A |
Key Features
- Compact miniature design with 14 mm diameter.
- Rated IP68 for dust and water resistance, allowing permanent submersion up to 30 meters for 1 hour.
- Push-pull coupling mechanism facilitates quick and secure mating with audible click locking.
- Strong retention force up to 25 kg prevents accidental disconnects even under opposing forces.
- Termination type is screw for reliable cable connection.
- Contact materials include brass contacts plated with silver for durability and conductivity.
- Male connector gender supports cable mount with 2 poles and 1-way configuration.
- Suitable for harsh environments including underwater and outdoor lighting applications.
Product Description
RS PRO 136-9894 TeePlug Series Cable Tee Plug Male Screw 2-Pole connector rated at 10A, 400V, and IP68 protection is engineered for robust, waterproof electrical connections in challenging environments.
This miniature circular micro connector features a 14 mm diameter and push-pull style coupling with secure locking latch, enabling quick, reliable, and safe mates. The locking mechanism prevents accidental disconnections up to forces of 25 kg, with quick release and locking versions available for safety and convenience.
The connector’s brass contacts plated in silver ensure enhanced conductivity and durability. The termination uses screws for strong cable retention and supports 2-pole, 1-way male configuration, optimized for cable mounting.
These TH381 waterproof connectors are tested to IP68 and IP69K standards, offering protection against permanent water submersion, high-pressure jets, dust, and dirt ingress. This makes them ideal for industrial, outdoor, underwater lighting, architectural installations, street lighting, billboard illumination, and other demanding Class 2 electrical device connections.
The compact design and rugged features allow these connectors to perform reliably in environments exposed to water, dust, and mechanical stress, ensuring longevity and safety in electrical systems.
Compact miniature design with 14 mm diameter. IP68 protection for permanent submersion and dust ingress resistance. IP69K resistance to high-pressure water jets. Push-pull coupling for quick and secure mating. Locking latch provides audible confirmation and strong retention force.
Screw termination ensures reliable cable connection. Brass contacts plated with silver for conductivity and durability. Male connector gender with 2 poles and 1-way configuration. Cable mount type for straightforward installation.
This RS PRO TeePlug connector is manufactured in Italy, providing trusted quality for industrial and commercial lighting applications. Browse RS PRO Lighting Connectors on EnvMart for compatible products and complementary accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO TeePlug Series Cable Tee Plug is rated for 400V.
This model supports a current capacity of 10A.
It has an IP68 rating, which allows for permanent submersion in water and provides dust ingress protection.
The connector features a compact design with a diameter of 14 mm.
This unit uses a screw termination type for a reliable cable connection.
The contacts are made of brass and are plated with silver for enhanced conductivity and durability.
It features a push-pull coupling mechanism with a locking latch that provides audible confirmation and prevents accidental disconnections.
This model has a 2-pole configuration with a 1-way design.
The RS PRO TeePlug connector is manufactured in Italy.
It is suitable for harsh environments including underwater and outdoor lighting applications, as well as industrial and architectural installations.
This connector has a strong retention force of up to 25 kg, which helps prevent accidental disconnects even under opposing forces.
The connector is compatible with wire sizes of 7 to 8 mm.
