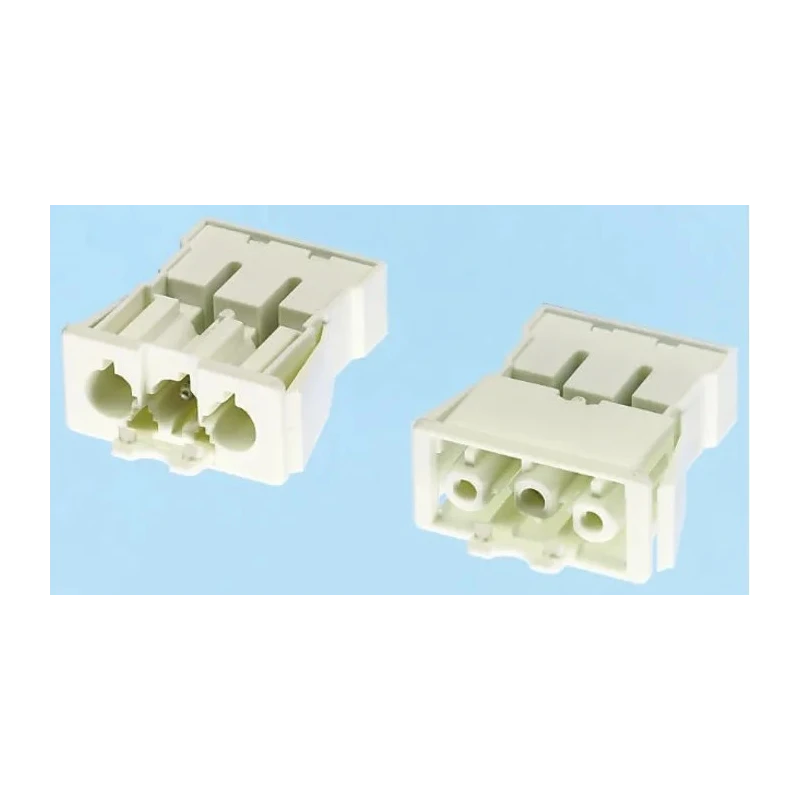

Wieland GST18 Series Panel Mount Connector Male Spring Clamp, 3-Pole, 16A, 3-Way, 250V, IP40 GST18

Free Delivery in India | Lowest Global Shipping Charges

Wieland GST18 Series Panel Mount Connector Male Spring Clamp, 3-Pole, 16A, 3-Way, 250V, IP40 GST18

Name: Wieland GST18 Series Panel Mount Connector Male Spring Clamp, 3-Pole, 16A, 3-Way, 250V, IP40 GST18
Brand: Wieland
SKU: 155375
Price: 7.77 USD
Availability: InStock



Category Lighting Connector Brand Wieland Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	Wieland
Colour	White
Model	GST18
IP Rating	IP40
Number Of Ways	3
Mount Type	Panel Mount
Contact Material	Brass
Termination Type	Spring Clamp
Sub Type	Connector
Wire size	0.5, 2.5mm²
Pole Format	3
Contact Plating	Tin
Contact Gender	Male
Connector Gender	Male
Lighting Connector Current	16A

Key Features

Constructed with brass contacts offering durability and reliable conductivity.
Features spring clamp termination for secure wire connection.
Supports wire sizes ranging from 0.5 to 2.5 mm².
Rated for 250V voltage and 16A current carrying capacity.
Compact design with IP40 rating for protection against solid objects above 1 mm.
Male connector gender suitable for panel mount installation.
Panel cut out size of 33 x 15.6 mm ensures precise mounting.
Available in white color for industry-standard coding.

Product Description

Wieland GST18 Series Panel Mount Connector Male Spring Clamp model GST18 is a high-quality lighting connector designed for industrial and commercial electrical applications. It features a 3-pole configuration rated at 16A and 250V, ideal for panel mount use in lighting and factory-assembled equipment.

Constructed with brass contacts plated with tin, it ensures excellent conductivity and corrosion resistance. The spring clamp termination type provides a secure and vibration-resistant wire connection for wire sizes from 0.5 to 2.5 mm². The male connector with 3-ways offers a compact and robust solution widely used in electrical installations.

The connector is designed for panel mounting with a precise panel cut-out size of 33 x 15.6 mm and is available in white color for clear identification. It conforms to DIN VDE 0628 and the draft EN/IEC 61535 standards, supporting safe and reliable electrical connections.

Rated at IP40, the GST18 connector offers protection from solid objects over 1 mm in size, maintaining safety in industrial environments. Its compact form factor and spring clamp termination make it a preferred choice in lighting connectors for industrial automation, manufacturing, and building infrastructure.

Constructed from robust brass contact material ensuring durability. Spring clamp mechanism provides fast and reliable wire termination. Supports a wire size range between 0.5 to 2.5 mm² for flexible wiring options. Panel mount design suits integration into control panels and lighting fixtures.

IP40 rating protects against ingress of solid particles enhancing safety. Male connector with 3 poles supporting 16A current at 250V voltage. White color housing aids in easy identification and wiring setup. Manufactured in Germany ensuring premium quality and standards compliance.

This Wieland panel mount connector is suitable for applications including industrial lighting systems, electrical panels, manufacturing machinery, and other factory-assembled equipment requiring reliable and safe electrical connections.

EnvMart offers this connector for professionals seeking dependable lighting connectors compliant with international standards. Browse our Lighting Connector selections for compatible accessories and additional components.
