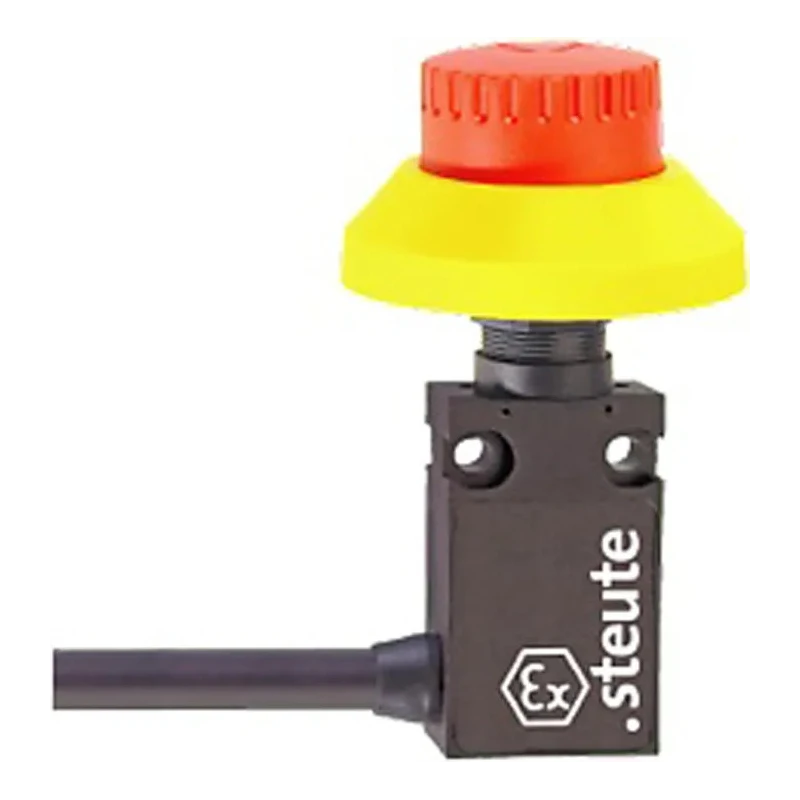

Steute Ex 14 Series Push Button Limit Switch, DPST, IP65, Fibreglass Reinforced Thermoplastic Housing Ex 14 RUV-S 2O-5m
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Steute |
| Length | 5m |
| Model | Ex 14 RUV-S 2O-5m |
| Depth | 2.79m |
| IP Rating | IP65 |
| Width | 1.78m |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | Ex 14 |
| Maximum Operating Temperature | 75°C |
| Mounting Orientation | Vertical |
| Contact Configuration | DPST |
| Actuator Type | Push Button |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -20°C |
| Switching Current | 6A |
| Terminal type | Cable |
| Hazardous Area Certification | IECEx |
| Standards/Approvals | RoHS |
| Mechanical Life | 30000Cycles |
| Switching DC Voltage | 230V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Suitable for controlling and monitoring moving machine parts in hazardous environments.
- Operates reliably with a 250V AC voltage and 6A switching current.
- Equipped with slow action positive break NC contacts for secure switching.
- Designed for mounting orientation in vertical position.
- Provides protection with IECEx hazardous area certification and RoHS compliance.
- Mechanical life rated up to 30000 cycles ensuring durability.
- Operating temperature range from -20°C to 75°C for versatile applications.
- Includes a 5-meter cable with 2.79m depth and 1.78m width dimensions.
Product Description
Steute Ex 14 RUV-S 2O-5m is a push button limit switch designed with a DPST contact configuration, rated at 250V AC and 6A switching current. Housed in a fibreglass reinforced thermoplastic enclosure, it offers IP65 protection, making it suitable for harsh industrial environments.
This limit switch ensures positioning, control, and monitoring of moving parts in machines and industrial plants, particularly for sliding and hinged safety guards where operational security is vital. The device includes slow action positive break normally closed contacts, enhancing safety with reliable operation.
Certified to IECEx standards and RoHS compliant, it is engineered for vertical mounting orientation with a mechanical life expectancy of 30000 cycles. Operating temperature ranges from -20°C to 75°C accommodate various industrial applications.
The switch comes with a 5-meter cable and features compact dimensions: depth of 2.79 meters and width of 1.78 meters, facilitating secure installation in constrained spaces. Suitable for use in industrial automation and safety systems.
Ex certified for hazardous areas zone 1 and 21. Double insulated thermoplastic housing ensures robust protection against environmental factors. Pre-wired cable enables easy and flexible connection. Versatile actuator options compatible within the Ex 14 series.
Steute limit switches are ideal for applications in manufacturing, water treatment, agriculture, and other commercial and industrial sectors requiring reliable limit switch solutions.
Browse more products in the Limit Switches category on EnvMart for comprehensive automation and control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPST (Double Pole Single Throw) contact configuration, allowing it to control two separate circuits simultaneously.
The maximum switching current for this limit switch is 6A, making it suitable for various industrial applications.
It has an IP65 rating, providing protection against dust and water ingress, suitable for harsh environments.
The operating temperature range is from -20°C to 75°C, accommodating a variety of industrial conditions.
It is housed in a fibreglass reinforced thermoplastic enclosure, providing durability and environmental protection.
The switch includes a 5-meter cable, allowing for flexible installation options.
The mechanical life is rated up to 30,000 cycles, ensuring reliable operation over time.
Yes, it is certified to IECEx standards and is RoHS compliant, ensuring it meets safety and environmental regulations.
It is designed for vertical mounting orientation, which is ideal for many industrial applications.
This model uses a push button actuator, allowing for easy operation in various settings.
It is suitable for controlling and monitoring moving machine parts in industrial automation and safety systems, particularly for sliding and hinged safety guards.
The dimensions are 2.79 meters in depth and 1.78 meters in width, facilitating installation in constrained spaces.
