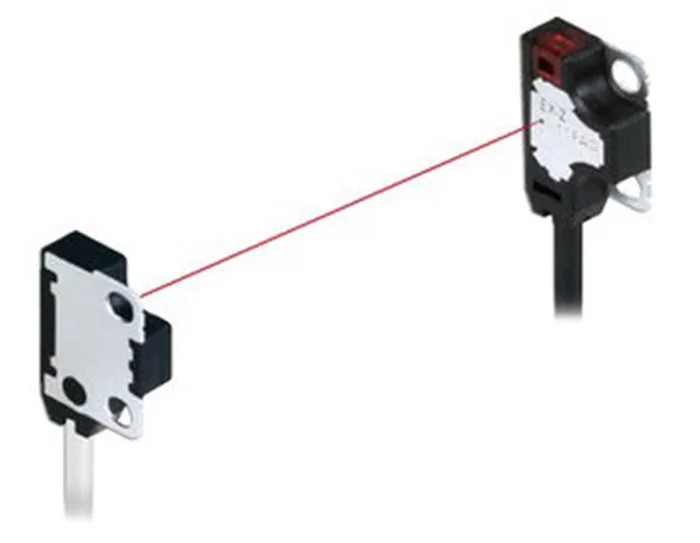

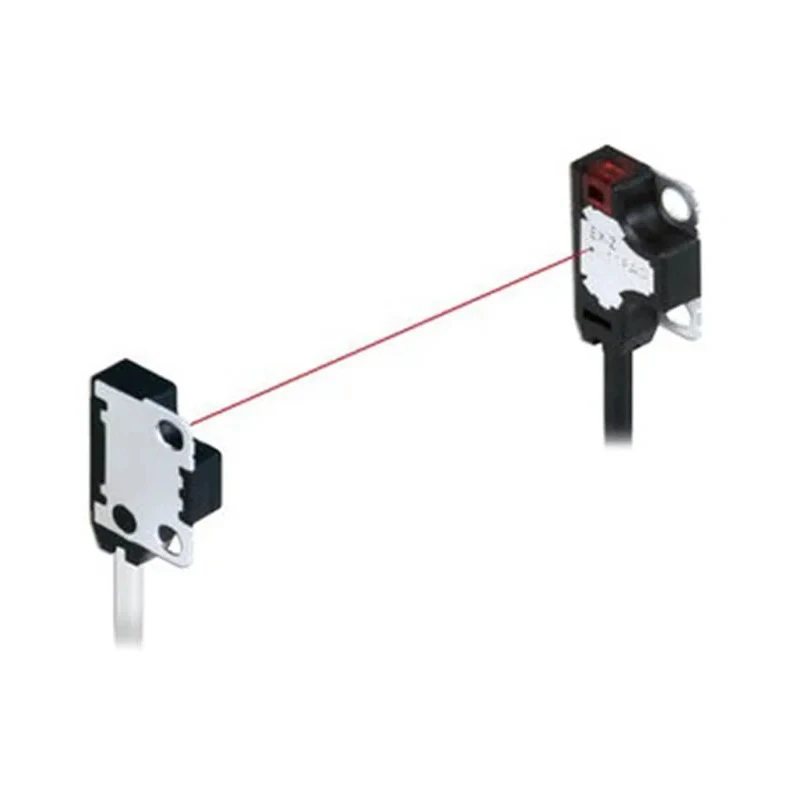

Panasonic Through Beam Photoelectric Sensor Block Style 200 mm Detection Range PNP Output IP67 EX-Z12B-P
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 200 mm |
| Model | EX-Z12B-P |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP |
| Series | EX-Z |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 20mA |
| DetectIon Type | Through Beam |
| Terminal type | Wire |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | CE, cULus Recognised, IEC |
| Materials Detected | Opaque |
| Sensor Style | Block |
Key Features
- The sensor features a compact design suitable for narrow installation spaces.
- It detects opaque materials with a highly visible 4-element red LED light source.
- Front or side sensing capability enhances installation flexibility.
- IP67 rating ensures dust-tight and water-resistant operation.
- Operating temperature ranges from -10°C to 55°C for diverse environments.
- Fast response time of 500 microseconds enables precise detection.
- Maximum 24V DC voltage and 20mA current support standard control systems.
- Constructed from durable polybutylene terephthalate housing material.
Product Description
Panasonic EX-Z12B-P Through Beam Photoelectric Sensor block style offers precise detection for industrial automation and control applications. This sensor model provides a 200 mm detection range, utilizing a PNP output and high-brightness 4-element red LED for clear visibility of sensing position. The sensor is designed with an ultra-compact form factor allowing installation in narrow spaces where conventional fiber sensors were previously required.
Engineered with a built-in amplifier, the EX-Z12B-P reduces installation space and complexity. It is capable of detecting opaque materials as small as 0.3 mm diameter without an optional slit owing to intelligent slit placement on the sensor body front.
The IP67 rated housing ensures robust protection against dust ingress and water jets, suited for harsh industrial environments. It operates reliably between -10°C and 55°C ambient temperatures and supports a maximum supply voltage of 24V DC with a current rating up to 20mA. The fast 500 microsecond response time facilitates high-speed process requirements.
The sensor material comprises durable polybutylene terephthalate, providing mechanical strength and chemical resistance. Its cable mount type ensures straightforward wiring and installation in control panels or machinery.
Supplied as a matched emitter and receiver pair, the EX-Z12B-P sensor series conforms to CE, cULus, and IEC standards, assuring compliance and safety for industrial deployment. Typical applications include factory automation, packaging machines, robotics, and quality control inspection systems.
The compact design enables versatile installation in constrained spaces. PNP output type facilitates easy integration with PLCs and control circuits. Durable polybutylene terephthalate housing withstands industrial environments.
High IP67 rating protects against dust and water ingress. Extended operating temperature range supports diverse industrial conditions. Fast response ensures precise detection at high speed. Emitter and receiver supplied together for seamless pairing.
Explore more high-quality automation components like Panasonic Photoelectric Sensors and control gear on EnvMart for industrial and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 200 mm, allowing it to effectively detect opaque materials within that distance.
This sensor features a PNP output type, making it compatible with various control systems and PLCs.
The response time of the Panasonic EX-Z12B-P is 500 microseconds, enabling precise detection in high-speed applications.
This sensor has an IP67 rating, which means it is dust-tight and protected against water jets, suitable for harsh environments.
The operating temperature range for the Panasonic EX-Z12B-P is from -10°C to 55°C, allowing it to function in diverse industrial conditions.
This sensor is designed to detect opaque materials, making it suitable for various industrial applications.
The maximum supply voltage for the EX-Z12B-P is 24V DC, with a maximum current rating of 20mA.
The housing of this model is constructed from polybutylene terephthalate, providing mechanical strength and chemical resistance.
This sensor features a cable mount type, which facilitates straightforward wiring and installation in control panels or machinery.
It conforms to CE, cULus, and IEC standards, ensuring compliance and safety for industrial deployment.
This sensor is typically used in factory automation, packaging machines, robotics, and quality control inspection systems.
The sensor offers front or side sensing capability, which enhances installation flexibility in various setups.
