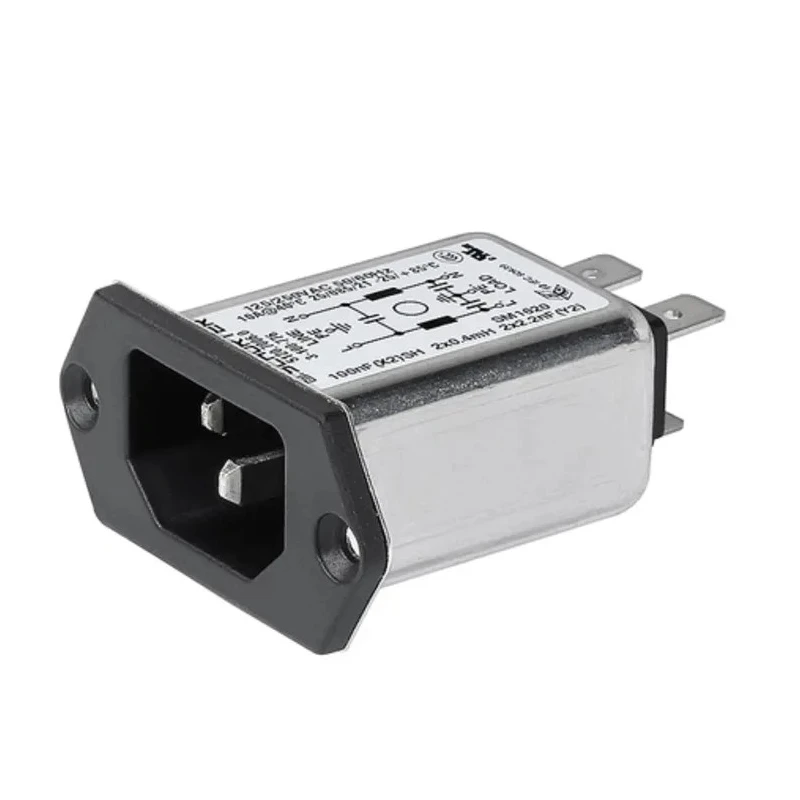

Schurter IEC Connector 250V 4A Quick Connect C18, C14 Series 5120 3-101-143
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Schurter |
| Current | 4A |
| Height | 24.6mm |
| Filter Type | Line |
| Depth | 42.5mm |
| Width | 42.5mm |
| Operating Frequency | 60Hz |
| Series | 5120 |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Fuse Size | 5 x 20 mm |
| IEC Connector Type | C18, C14 |
| UL File Number | E72928 |
| VDE Certificate Number | 40016382 |
Key Features
- Connector is part of Schurter 5120 series with plastic flange design.
- Supports IEC C18 and C14 connector types for flexible integration.
- Operates over a temperature range of -25°C to 85°C.
- Fits 5 x 20 mm fuse size with fuse drawer sold separately.
- Suitable for medical and industrial applications requiring EMI line filtering.
- Compact dimensions of 42.5mm width, 42.5mm depth, and 24.6mm height.
- Quick connect termination type for easy wiring connections.
Product Description
Schurter 3-101-143 IEC Connector is a compact line filter designed to provide effective EMI filtering with a plastic flange housing. Rated for 250V and 4A current, it supports quick connect terminals that simplify installation in electronic assemblies. This connector is part of the 5120 series that features a modern flat plastic flange design for aesthetic and functional advantages.
The connector supports IEC C18 and C14 types and is suitable for PCB mounting with earth terminal provision. Its operating temperature range from -25°C to 85°C makes it well-suited for diverse environments. The connector accommodates a 5 x 20 mm fuse (not included), making it ideal for protective applications.
Applications include use in medical devices compliant with IEC 60601-1 standards, industrial appliances, datacom, and measurement instruments that require high transient load filtering. Protection class II versions cater specifically to home medical equipment according to IEC 60601-1-11.
The design supports multiple mounting options including front, rear, and side mounting for installation flexibility. The compact dimensions (42.5mm x 42.5mm x 24.6mm) suit high-density power supplies where space is critical. Its construction ensures optimal shielding with a closed metal filter case underneath the plastic flange.
The filter provides compact, high-performance suppression of conducted EMI. Plastic flange reduces bevel edge for a sleek installation finish. Quick connect termination ensures easy and secure wiring connections. Suitable for medical and industrial applications requiring rigorous EMI management.
Supports panel mounting with numerous mounting options for versatile installation.
Schurter's IEC connectors like this model 3-101-143 are trusted in commercial and industrial settings for reliable EMI filtering and connector performance. Explore more Schurter products and IEC connectors at EnvMart to find compatible components for your electronic assemblies.
Explore more products in our Electronic Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 250V and 4A current.
It has compact dimensions of 42.5mm in width, 42.5mm in depth, and 24.6mm in height.
This model operates over a temperature range of -25°C to 85°C.
It supports IEC C18 and C14 connector types for flexible integration.
The connector features a quick connect termination type, allowing for easy wiring connections.
It fits a 5 x 20 mm fuse size, but the fuse drawer is sold separately.
It is suitable for medical devices compliant with IEC 60601-1 standards, industrial appliances, datacom, and measurement instruments requiring EMI filtering.
This connector provides line filtering for effective EMI suppression.
It supports multiple mounting options including front, rear, and side mounting for installation flexibility.
The maximum operating frequency for this model is 60Hz.
It has a UL File Number E72928 and a VDE Certificate Number 40016382.
The country of origin for this connector is India.
