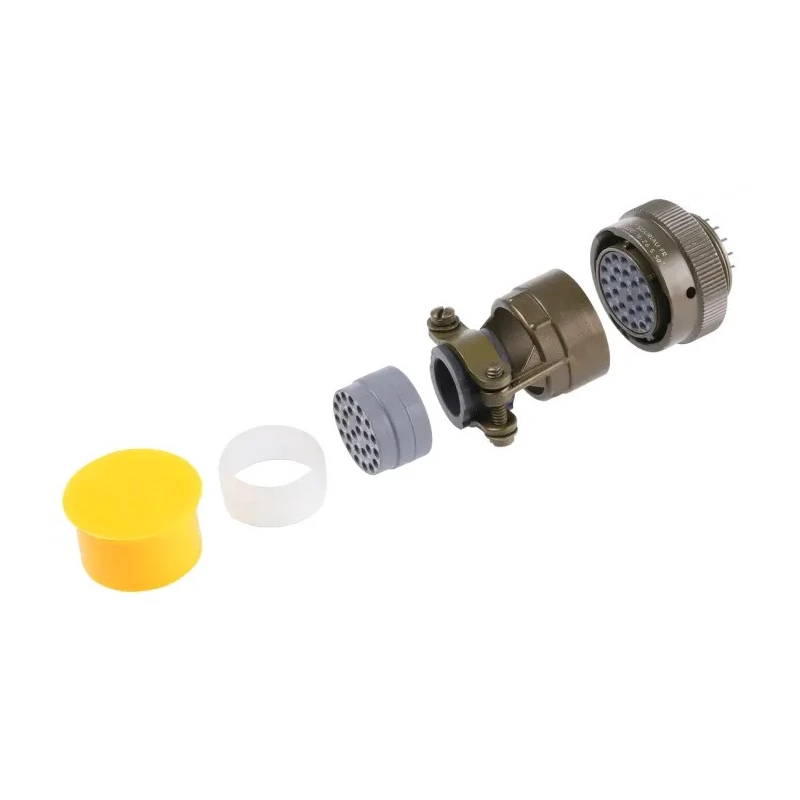

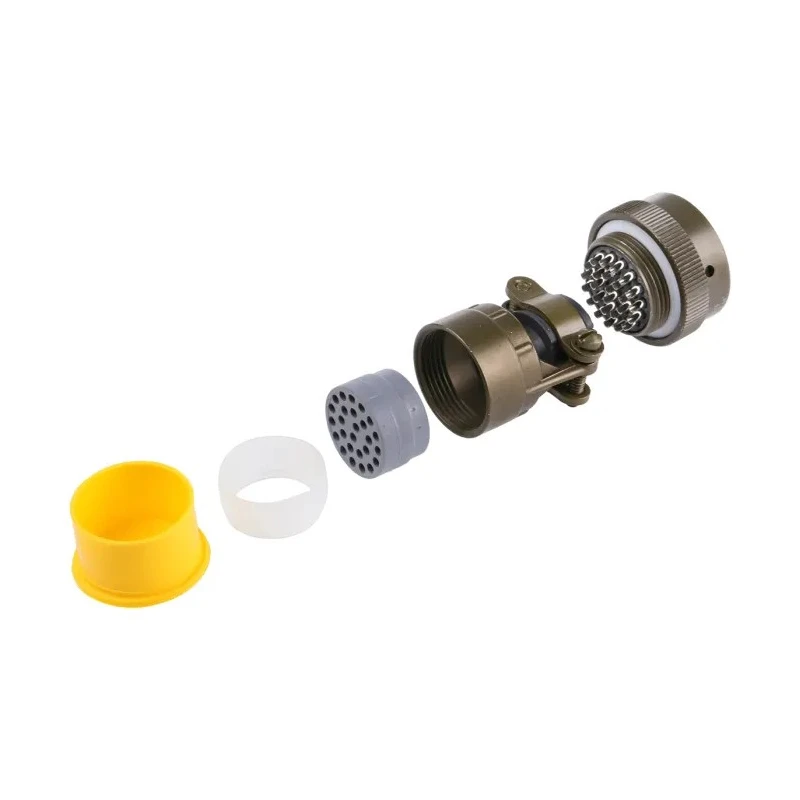

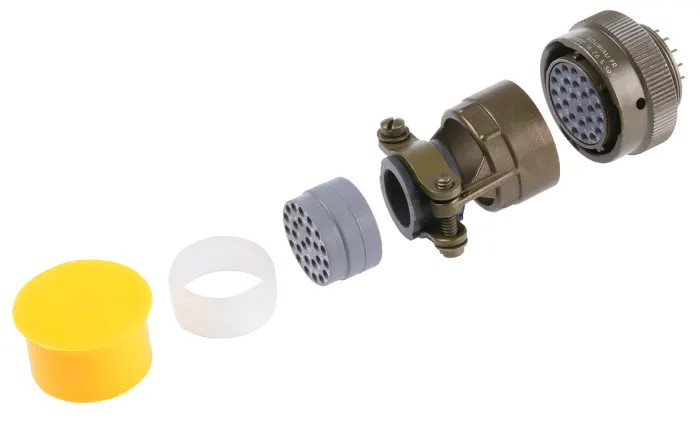

Souriau Sunbank by Eaton Copper Alloy Straight MIL Spec Circular Connector, 26 Way, Bayonet, 500V, 7.5A 85106EC1626S50
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 500V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 7.5A |
| Model | 85106EC1626S50 |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | 851 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 16 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Shell Plating | Olive Drab Cadmium |
| Meets applicable national and international standards and specifications | NFC 93422 |
Key Features
- Features 26 gold-plated copper alloy contacts for reliable electrical connection.
- Bayonet coupling mechanism ensures secure mating and easy disconnect.
- Operates at voltage up to 500V and current up to 7.5A.
- IP65 rated for dust and water resistance in industrial environments.
- Cable mount design with olive drab cadmium plated shell for enhanced durability.
- Solder contacts suitable for 24 - 18 AWG cable (0.21 - 0.93 mm²).
- Military standard MIL-DTL-26482 for reliability in demanding applications.
- Temperature operating range from -55°C to 125°C.
Product Description
Souriau Sunbank by Eaton 85106EC1626S50 MIL Spec Circular Connector delivers robust performance with 26 gold-plated copper alloy contacts. Designed with a straight orientation and bayonet mating mechanism, it is ideal for secure and easy installation in military, aeronautic, instrumentation, measurement, transport, and industrial automation applications.
Features 26 gold-plated copper alloy contacts for reliable electrical connection. Bayonet coupling mechanism ensures secure mating and easy disconnect. Operates at voltage up to 500V and current up to 7.5A. IP65 rated for dust and water resistance in industrial environments.
Cable mount design with olive drab cadmium plated shell for enhanced durability. Solder contacts suitable for 24 - 18 AWG cable (0.21 - 0.93 mm²). Military standard MIL-DTL-26482 for reliability in demanding applications.
Temperature operating range from -55°C to 125°C.
Its robust shell plating, secure bayonet coupling, and high-contact density make the connector suitable for aerospace, defence, manufacturing, laboratory instrumentation, and transport equipment.
The product meets international standards, including NFC 93422 - HE 301 B and MIL-C 26482G series 1. The olive drab cadmium plating provides resistance to corrosion, and the gold-plated contacts ensure optimal conductivity.
Designed originally for aeronautic and weapon industries, the 851 series is widely deployed across measurement, machine tools, industrial automation, and other demanding sectors. With an IP65 ingress rating and wide operating temperature range, this connector is suited to harsh environments typical in industrial, transportation, and laboratory settings.
Explore more Souriau Sunbank by Eaton connectors and accessories in Industrial Circular Connector category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum voltage of 500V and a maximum current of 7.5A.
It has an IP65 rating, providing dust and water resistance suitable for industrial environments.
It features 26 gold-plated copper alloy contacts, which ensure reliable electrical connections.
The operating temperature range is from -55°C to 125°C.
The termination type for the contacts is solder, suitable for 24 - 18 AWG cable (0.21 - 0.93 mm²).
It meets the military standard MIL-DTL-26482, ensuring reliability in demanding applications.
This connector has a straight orientation, designed for easy installation.
It uses a bayonet coupling mechanism, which ensures secure mating and easy disconnect.
The shell is plated with olive drab cadmium, providing enhanced durability and corrosion resistance.
The connector features female contacts and a male connector gender.
The country of origin for this connector is France.
It is suitable for military, aeronautic, instrumentation, measurement, transport, and industrial automation applications.
