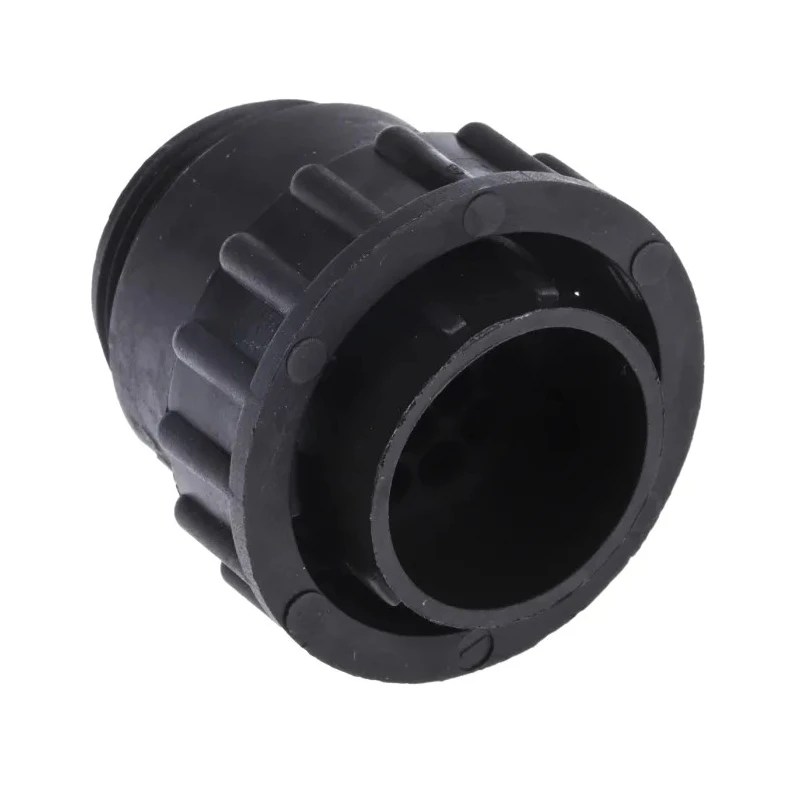

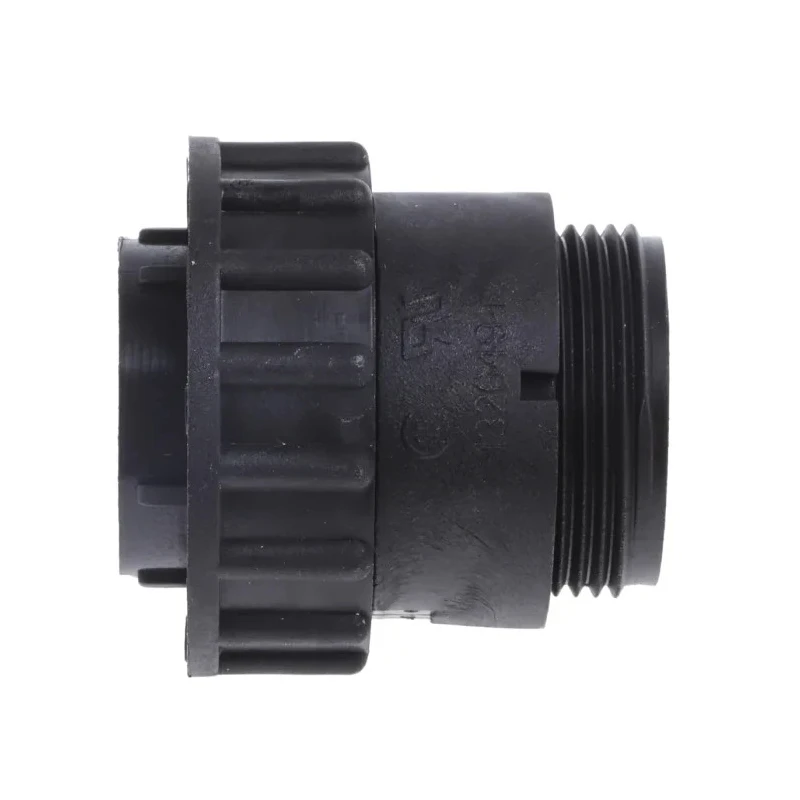

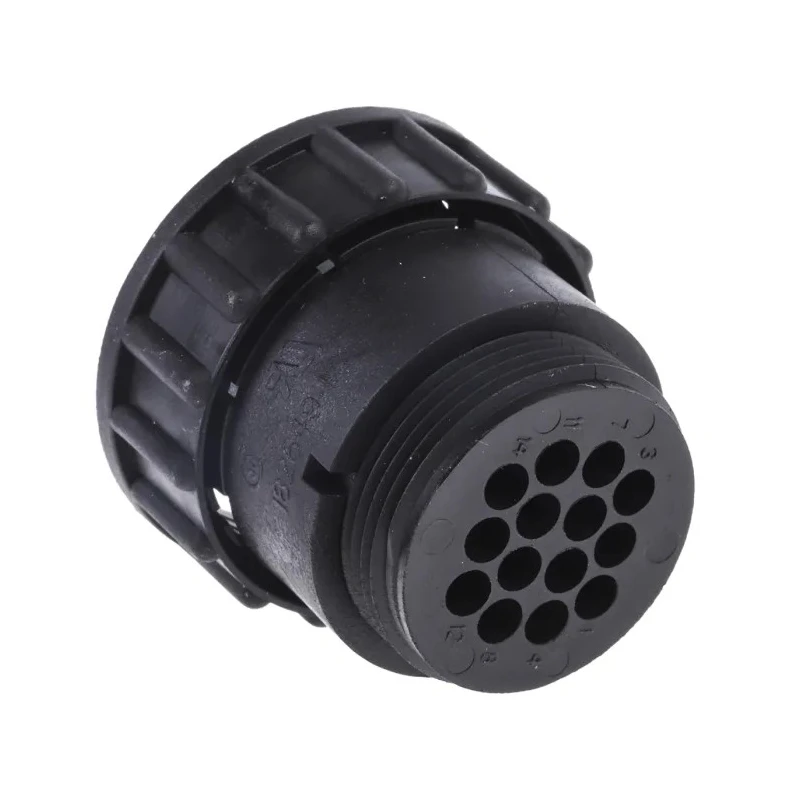

TE Connectivity Circular Connector, 14 Contacts, 13A, Plug, Male, Cable Mount, Thermoplastic, CPC Series 182649-1
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 600.0V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 13A |
| Model | 182649-1 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | CSA, RoHS, UL 94V-0 |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shell Size | 17 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Connector, circular, plug shell, cable mount, 14 wayBrand | NEUTRAL |
Key Features
- Accommodates 14 contacts for versatile signal or low-current connections.
- Rated for 13A and up to 600V, suitable for demanding industrial applications.
- Cable mount plug design with male contact orientation enables reliable mating.
- Thermoplastic housing provides lightweight durability and resistance to harsh conditions.
- Threaded mating ensures secure and vibration-resistant connections.
- UL 94V-0, CSA, and RoHS compliant for recognized safety and fire-resistance standards.
- Crimp termination allows rapid field assembly and repair.
- Suitable for rail/transit, lighting, HVAC, motor vehicles, machinery, and material handling systems.
Product Description
TE Connectivity's 182649-1 Circular Connector is a rugged, high-performance solution from the CPC Series. Designed to deliver dependable connectivity, this connector features 14 contacts in a standard-density configuration, ideal for signal and low-current industrial applications requiring up to 13A and 600V. The plug is cable mountable with a male contact arrangement, ensuring versatile compatibility in panel or free-hanging applications.
A sturdy thermoplastic housing ensures lightweight durability, resistance to shock and vibration, and meets UL 94V-0 fire safety standards. The threaded locking mechanism and knurled coupling ring support secure mating in harsh environments, preventing accidental disengagement. Crimp contacts allow for simple on-site assembly and quick repairs, minimizing downtime in industrial settings.
Accommodates up to 14 contacts for a mix of signals and low current circuits. Cable mount plug with male contacts and straight orientation for flexible application layouts. Rated 13A current and 600V maximum voltage for robust electrical performance.
Thermoplastic housing provides heat resistance and self-extinguishing fire protection. CSA, RoHS, UL 94V-0 certifications ensure compliance with industrial safety standards. Operating temperature from -55°C to 105°C supports wide environmental conditions.
The CPC series connectors are commonly deployed in rail and transit vehicles, lighting and signage installations, commercial HVAC equipment, motor vehicles - including buses and trucks - agricultural machinery, construction equipment, industrial machinery, automation systems, and instrumentation. Their robust construction, pin and socket protection, and quick connect/disconnect features make them an optimal choice for demanding environments.
Industrial Circular Connectors from TE Connectivity are designed for rapid assembly, reliable performance, and ease of repair. The connector's Series 1 standard density configuration is tailored for signal and low-current uses, accepting size 16 MultiMate contacts for customization.
Explore more Industrial Circular Connectors from TE Connectivity in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 600V.
This model accommodates 14 contacts.
It is rated for a maximum current of 13A.
This connector uses crimp termination for connections.
The housing is made of thermoplastic, providing lightweight durability and resistance to harsh conditions.
The operating temperature range is from -55°C to 105°C.
It features a threaded mating mechanism for secure connections.
It complies with CSA, RoHS, and UL 94V-0 standards.
The connector has a straight contact orientation.
This model is suitable for applications in rail/transit, lighting, HVAC, motor vehicles, machinery, and material handling systems.
The shell size of this connector is 17.
The crimp contacts allow for simple on-site assembly and quick repairs, minimizing downtime.
