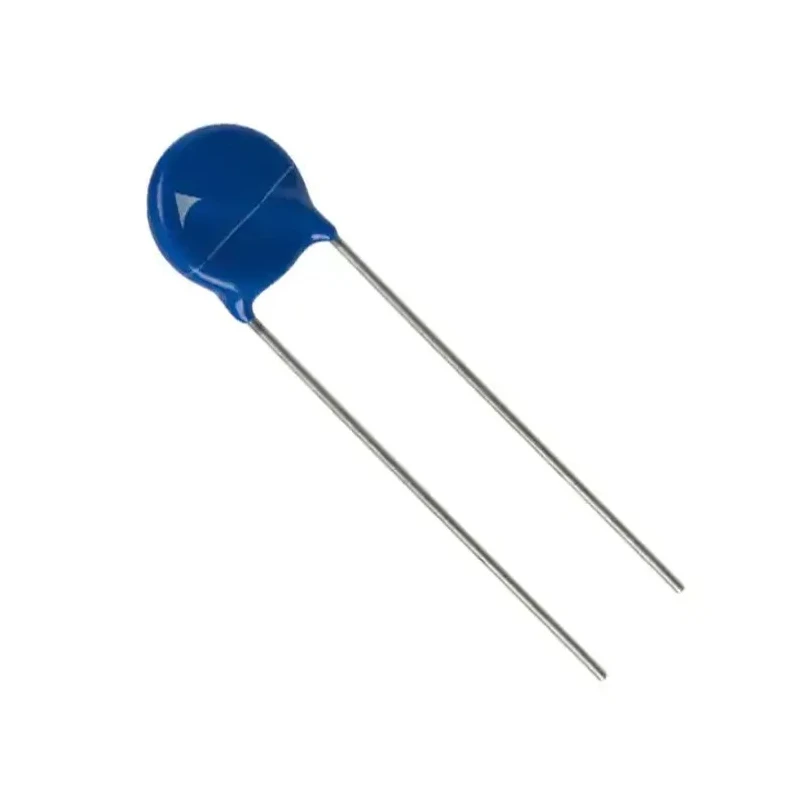

TDK StandardD Metal Oxide Varistor 70 pF, 10 A, Clamping 1240 V, Varistor Voltage 750 V B72207S0461K101
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9mm |
| Brand | TDK |
| THICKNESS | 5.7mm |
| Length | 11.5mm |
| Model | B72207S0461K101 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | StandardD |
| Maximum Operating Temperature | 105°C |
| Capacitance | 70pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 615V dc |
| Standards/Approvals | CSA, IEC, UL, VDE |
| Pin Count | 2 |
| Maximum AC Voltage | 460V ac |
| Clamping Voltage VC | 1240V |
| Clamping Current | 10A |
| Maximum Surge Current | 1.2kA |
| Varistor Voltage | 750 V |
Key Features
- Suitable for surge protection in power supplies and electronic components.
- Features 70 pF capacitance and clamping current up to 10 A.
- Through hole mounting for efficient integration into PCB designs.
- Tape & reel packaging simplifies automated assembly processes.
- Operates reliably across a wide temperature range from -40°C to 105°C.
- Complies with CSA, IEC, UL, and VDE standards.
- Maximum AC voltage of 460 V and DC voltage of 615 V ensure versatility.
Product Description
TDK B72207S0461K101 StandardD metal oxide varistor is engineered for high-efficiency surge protection across a variety of electronic applications. With a varistor voltage rated at 750 V and a clamping voltage at 1240 V, this varistor is proven to deliver dependable voltage suppression during transient events.
Designed for use in power supplies, control systems, and sensitive electronic circuits, it features robust surge current handling of up to 10 A and capacitance of 70 pF. The through hole configuration ensures ease of integration into PCB assemblies, and tape & reel packaging supports automated manufacturing processes.
This varistor is part of TDK’s StandardD series, which utilizes flame-retardant epoxy coating and tinned wire terminals for enhanced reliability and safety. Its compact dimensions - 9 mm diameter, 11.5 mm length, 5.7 mm thickness - make it suitable for applications where space is at a premium.
Suitable for surge protection in power supplies and electronic components. Features 70 pF capacitance and clamping current up to 10 A. Through hole mounting for efficient integration into PCB designs. Tape & reel packaging simplifies automated assembly processes.
Operates reliably across a wide temperature range from -40°C to 105°C. Complies with CSA, IEC, UL, and VDE standards. Maximum AC voltage of 460 V and DC voltage of 615 V ensure versatility.
The device operates efficiently in demanding industrial and commercial environments, supported by a broad ambient temperature range from -40°C to 105°C without performance derating. Standards compliance includes CSA, IEC, UL, and VDE, ensuring international suitability.
Typical industrial and electronics applications include power supplies, surge protection boards, control panels, HVAC equipment, laboratory instrumentation, and communication systems. The varistor’s reliability and versatility make it a preferred choice for manufacturing, automation, and commercial electronics.
Explore more surge protection and Varistor solutions from TDK in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor voltage of the TDK B72207S0461K101 is rated at 750 V.
The clamping voltage for this model is 1240 V.
This varistor can handle a maximum surge current of 1.2 kA.
The dimensions of the TDK B72207S0461K101 are 9 mm in diameter, 11.5 mm in length, and 5.7 mm in thickness.
It operates reliably across a wide temperature range from -40°C to 105°C.
The TDK B72207S0461K101 is packaged in tape & reel format, which simplifies automated assembly processes.
This model features a through hole mounting configuration for efficient integration into PCB designs.
It complies with CSA, IEC, UL, and VDE standards, ensuring international suitability.
The maximum AC voltage is 460 V and the maximum DC voltage is 615 V.
It is suitable for surge protection in power supplies, control systems, and sensitive electronic circuits.
The capacitance of the TDK B72207S0461K101 is 70 pF.
This model has a pin count of 2.
