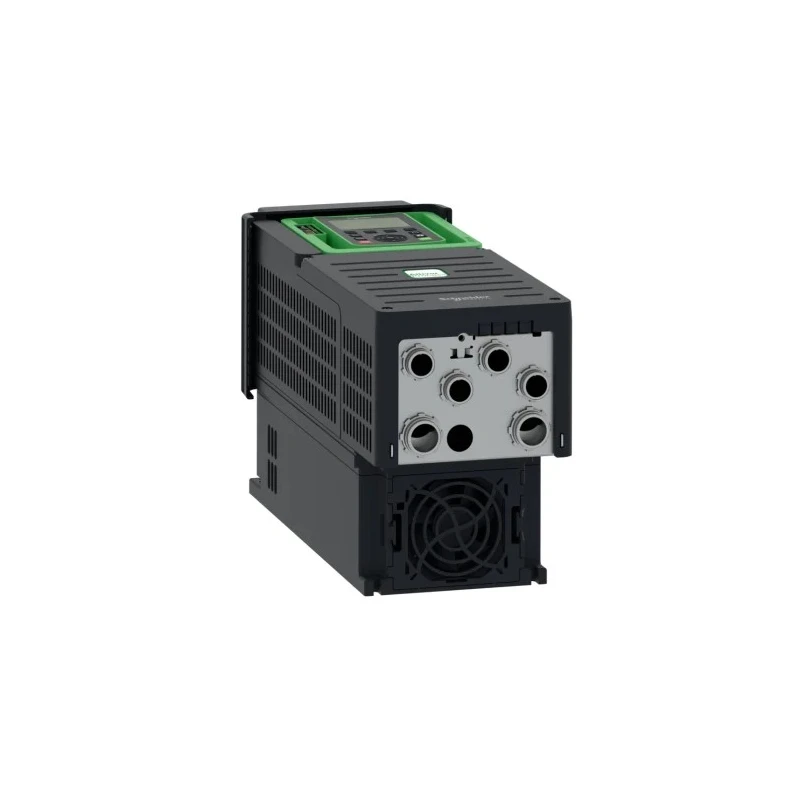

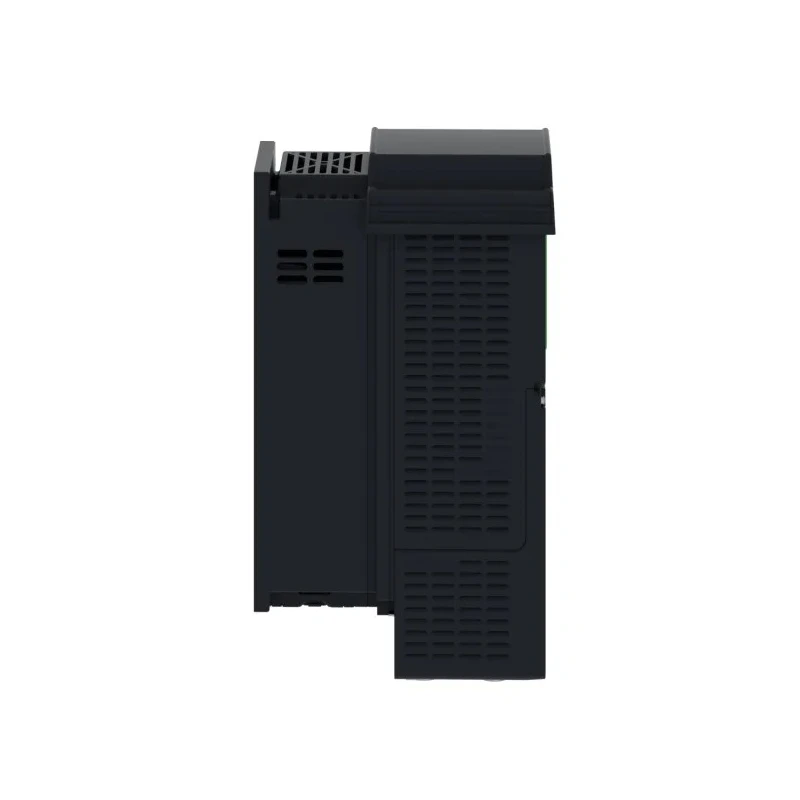

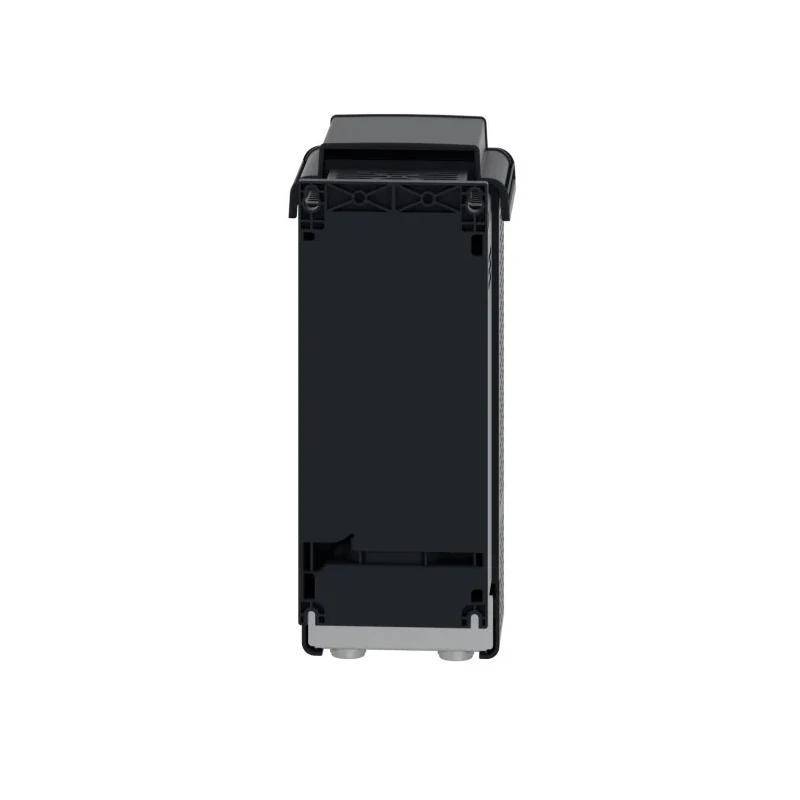

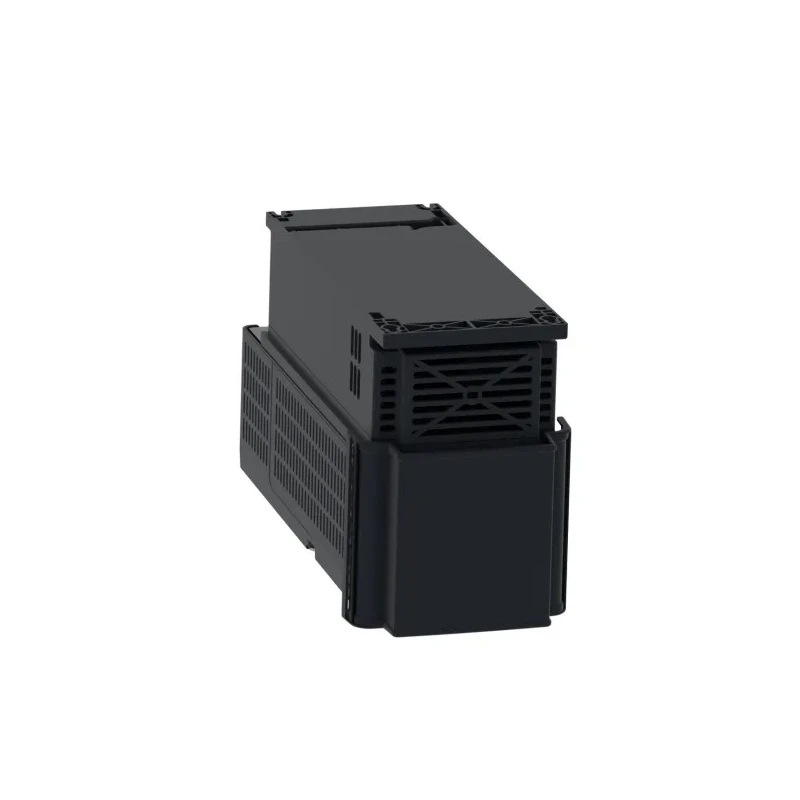

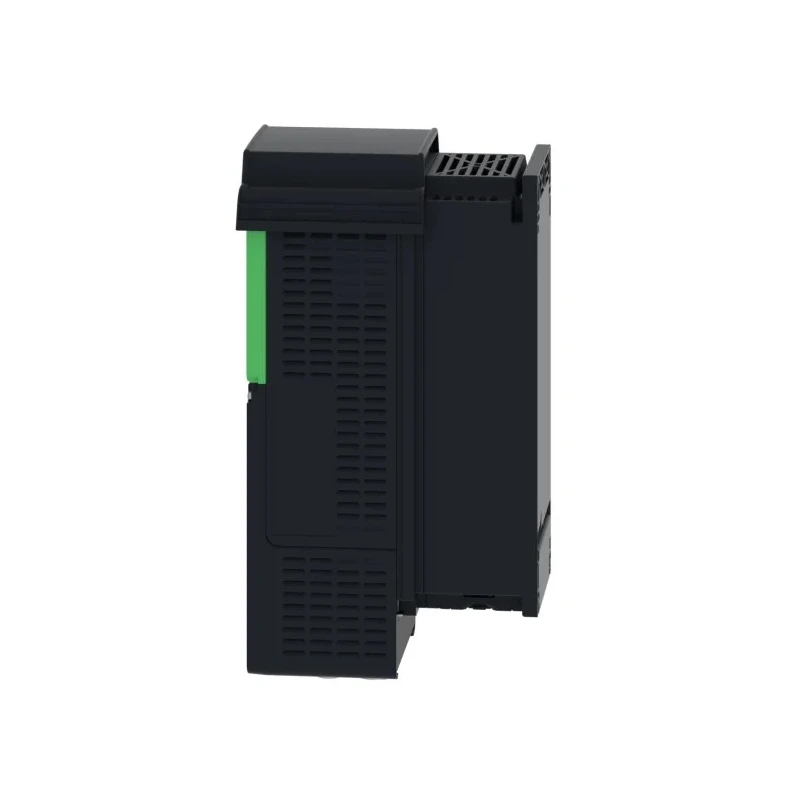

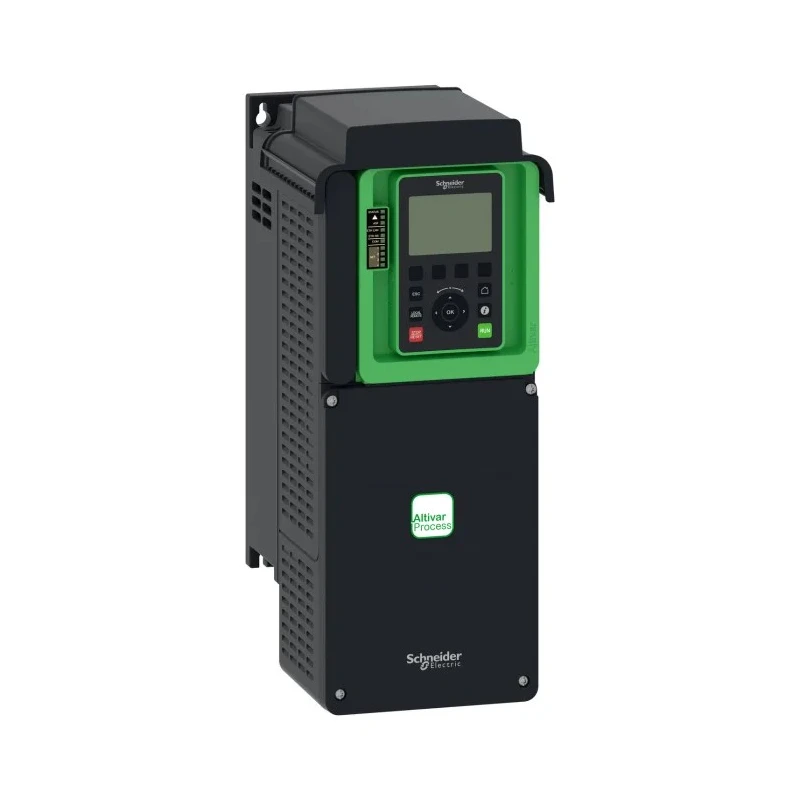

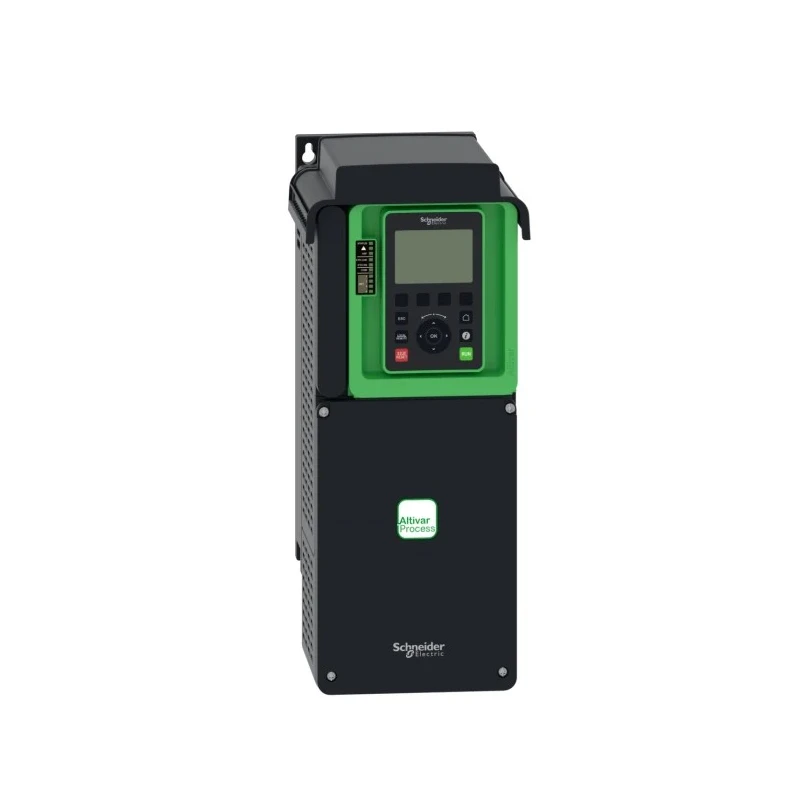

Schneider Electric ATV630U75N4 Variable Speed Drive 7.5 kW, 3 Phase, 380 - 480V, 16.5A, Wall Mount, IP21
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | ATV630U75N4 |
| IP Rating | IP21 |
| Drive Type | Variable Frequency |
| Mount Type | Wall |
| Overall Length | 171mm |
| Series | ATV63 |
| Overall Width | 233mm |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 500Hz |
| Minimum Operating Temperature | -15°C |
| Interfaces | Ethernet network, giving you process monitoring with your daily work tools |
| Number of Phases | 3 |
| Maximum Output Current | 16.5A |
| Maximum Supply Voltage | 480V |
| Overall Depth | 409mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Synchronous, Asynchronous Motor |
Key Features
- Designed for demanding HVAC, mining, construction, and manufacturing environments.
- Supports synchronous and asynchronous motors with variable frequency output (0.1 - 500 Hz).
- Wall mount form factor with compact dimensions for space savings in panel installations.
- IP21 enclosure provides finger-safe protection and resistance to dripping water.
- Easy screw terminal connections for fast, tool-free installation and service.
- Features 'Stop and Go' energy-saving mode, optimizing efficiency when idle.
- LED status indicators for clear visual performance diagnostics.
- Ethernet interface allows integration with factory process monitoring systems.
Product Description
Schneider Electric ATV630U75N4 Variable Speed Drive is part of the Altivar Process ATV630 series, engineered to optimize industrial motor control for heavy-duty applications. With a 7.5 kW output rating, this drive efficiently supports both synchronous and asynchronous three-phase motors, providing versatility across a voltage range of 380 to 480V and a maximum output current of 16.5A. This makes it ideal for HVAC systems, mining operations, water treatment plants, construction sites, and manufacturing environments.
The ATV630U75N4's variable frequency output (0.1 - 500 Hz) allows operators to adjust motor speed and torque precisely, matching the load and minimizing energy consumption. Integrated 'Stop and Go' functionality enhances operational efficiency by temporarily disabling unneeded functions (power section, backlights, fan) during periods of inactivity.
Wall-mount design with dimensions of 171 mm (L) x 233 mm (W) x 409 mm (D) for convenient installation in tight panel spaces. IP21-rated enclosure offers reliable protection against finger access and water drip, ensuring suitability for industrial installations.
Screw termination simplifies electrical connections, reducing installation complexity and maintenance downtime. Ethernet connectivity supports advanced process monitoring and integration into modern factory automation networks.
LED status indicators enable easy, real-time diagnostics and monitoring of drive and motor performance. Compliance with ATEX, CE, CSA, cUL, EAC, EN, IEC, TUV, and UL standards provides broad regulatory acceptance and safety assurance.
The Altivar Process ATV630 series delivers real-time intelligence, adaptability, and high efficiency, optimizing operations across water management, mineral processing, oil & gas, and food & beverage applications. With robust energy-saving features, this drive contributes to sustainability goals by reducing energy waste and operational costs.
Industrially suited for use in HVAC automation, mining machinery, construction equipment, water and wastewater treatment, and energy management systems.
Explore additional industrial automation solutions from Schneider Electric and browse EnvMart for a comprehensive range of variable frequency drives and control equipment tailored to your application requirements.
Explore more products in our Variable Frequency Drive (VFD) category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV630U75N4 has a power rating of 7.5 kW.
It supports an output frequency range of 0.1 to 500 Hz.
The dimensions are 171 mm in length, 233 mm in width, and 409 mm in depth.
It is compatible with both synchronous and asynchronous motors.
The maximum output current is 16.5 A.
This model has an IP21 rating, providing protection against finger access and dripping water.
The minimum supply voltage is 380 V and the maximum is 480 V.
The maximum operating temperature is 50°C.
The 'Stop and Go' feature optimizes efficiency by temporarily disabling unneeded functions during periods of inactivity.
It features a wall mount design for convenient installation in panel spaces.
It includes an Ethernet interface for process monitoring integration.
It complies with ATEX, CE, CSA, cUL, EAC, EN, IEC, TUV, and UL standards.
